8031i06.05

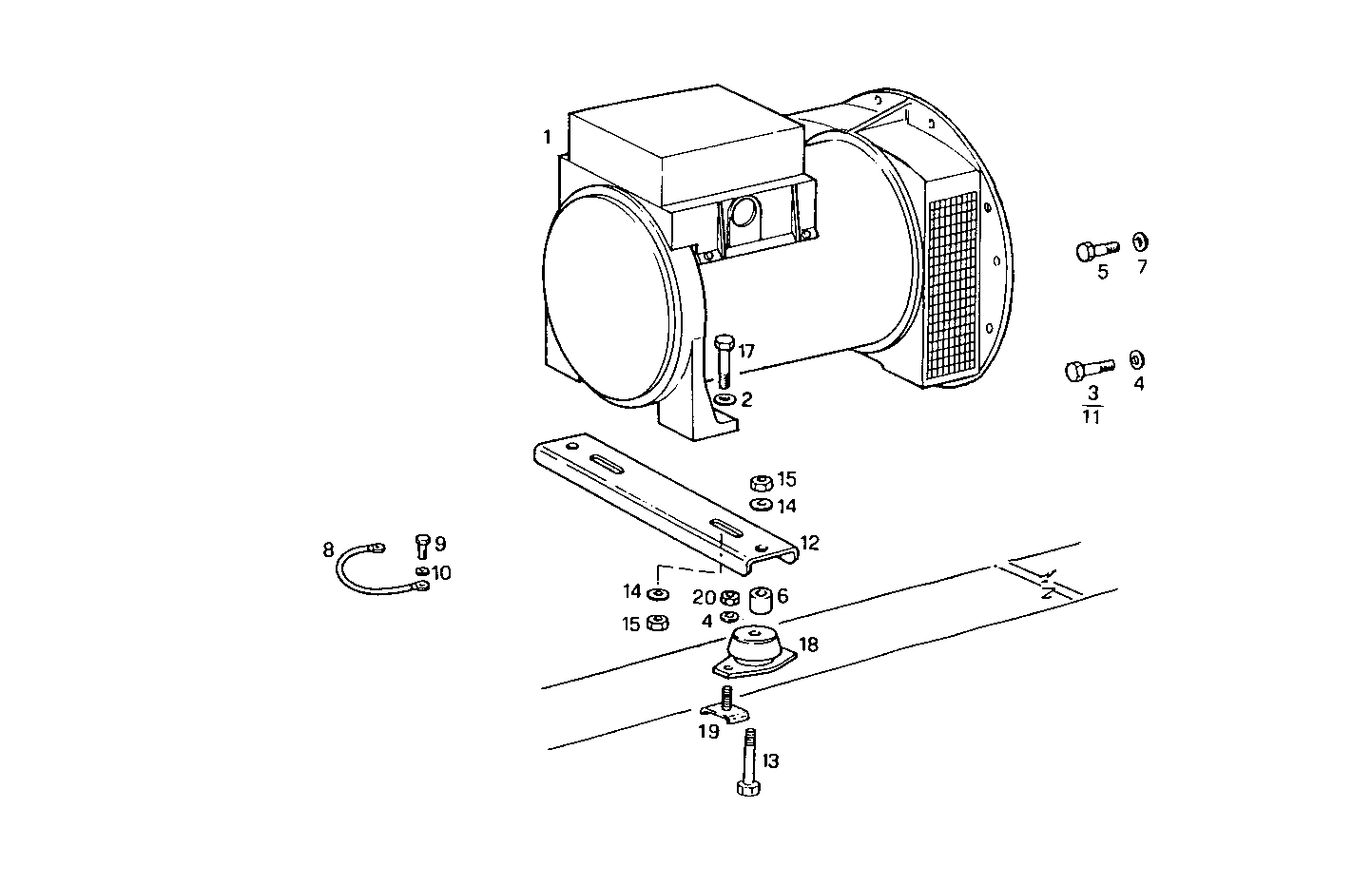

A37410048 SINGLE BEARING ELECTRIC MACHINE - MECC-ALTE

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8025944 ELECTRIC MACHINE ECN 28 2L/4 50-60HZ
2 4929369 WASHER
3 16607824 HEXAGON BOLT M10X35 MM (8.8)
4 17090174 SPRING WASHER Ø10X20 MM
5 15970521 HEXAGON BOLT M10X20 MM
6 8016265 SPACING BAR
7 17494934 WASHER Ø10X18,1X2,2 MM
8 8104707 WIRE/CABLE
9 16605424 SCREW M8X16 MM (8.8)
10 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
11 16607724 HEXAGON BOLT M10X1,5X30 MM (8.8)
12 8016047 SUPPORT
13 16615324 HEXAGON BOLT M16X80 MM
14 17092374 SPRING WASHER Ø16X34X3,6 MM
15 17038921 NUT M16X2
17 16614924 SCREW M16X55
18 8016784 RUBBER PAD
19 8016024 SCREW
20 17038121 HEXAGON NUT M10
