8031i06.05

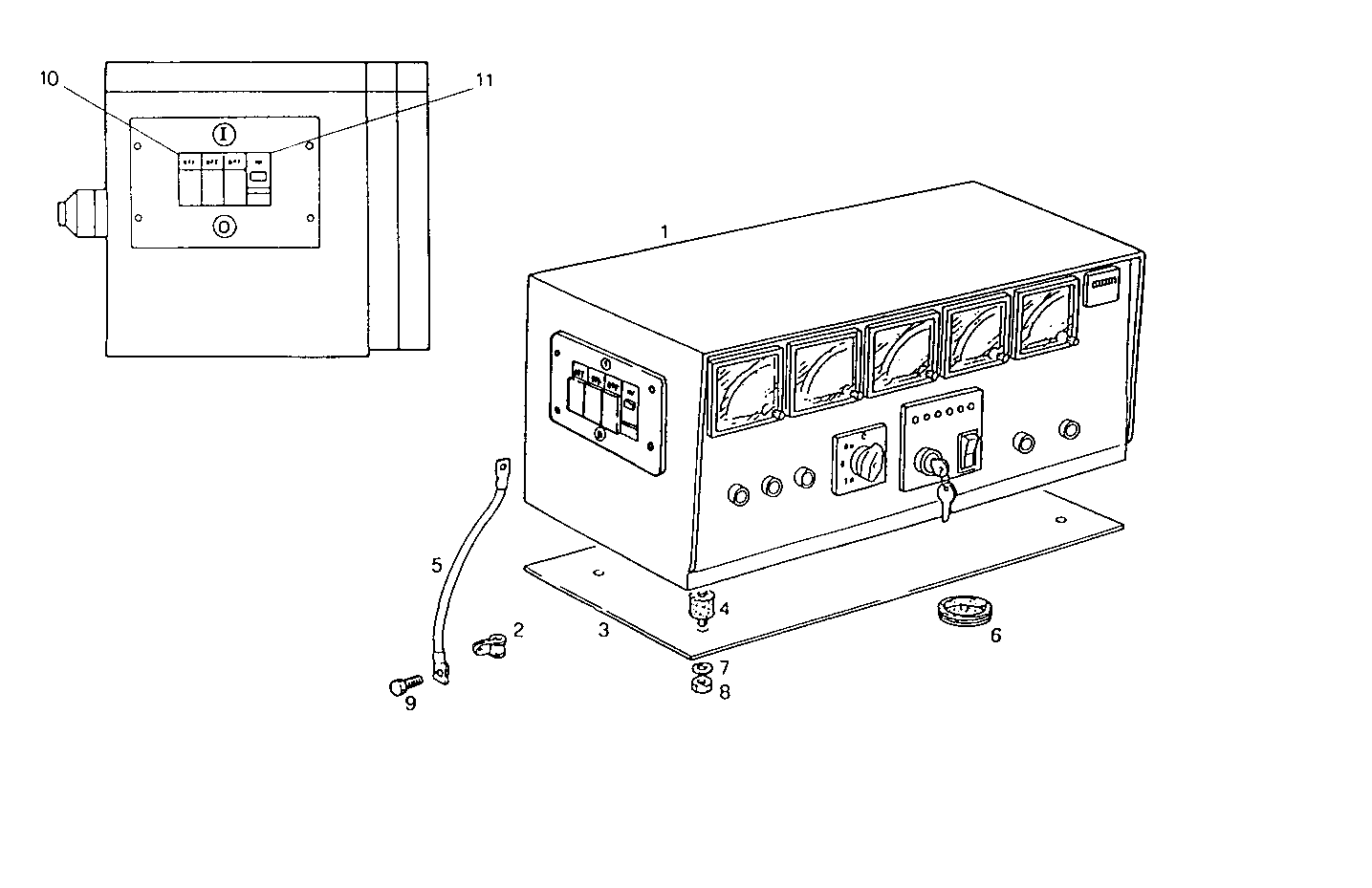

A60140026 MANUAL CONTROL BOARD FOR ELECT. MACHINE - MECC-ALTE
Item | Part number | Description |
---|---|---|
1 | 8021465 | CONTROL BOARD ASSY 220V/380V 50-60HZ |
2 | 17314990 | FASTENING BRACKET |
3 | 8019125 | COVER |
4 | 8018462 | RUBBER PAD |
5 | 8104707 | WIRE/CABLE |
6 | 8113214 | INSULATING RING |
7 | 11199279 | SPRING WASHER Ø5X10X0,5 MM |
8 | 17037721 | NUT M5X0,8 |
9 | 16603724 | HEXAGON BOLT M6X20 MM (8.8) |
10 | 8093326 | SWITCH 50A |
11 | 8093322 | MINIMUN TENSION COIL |
