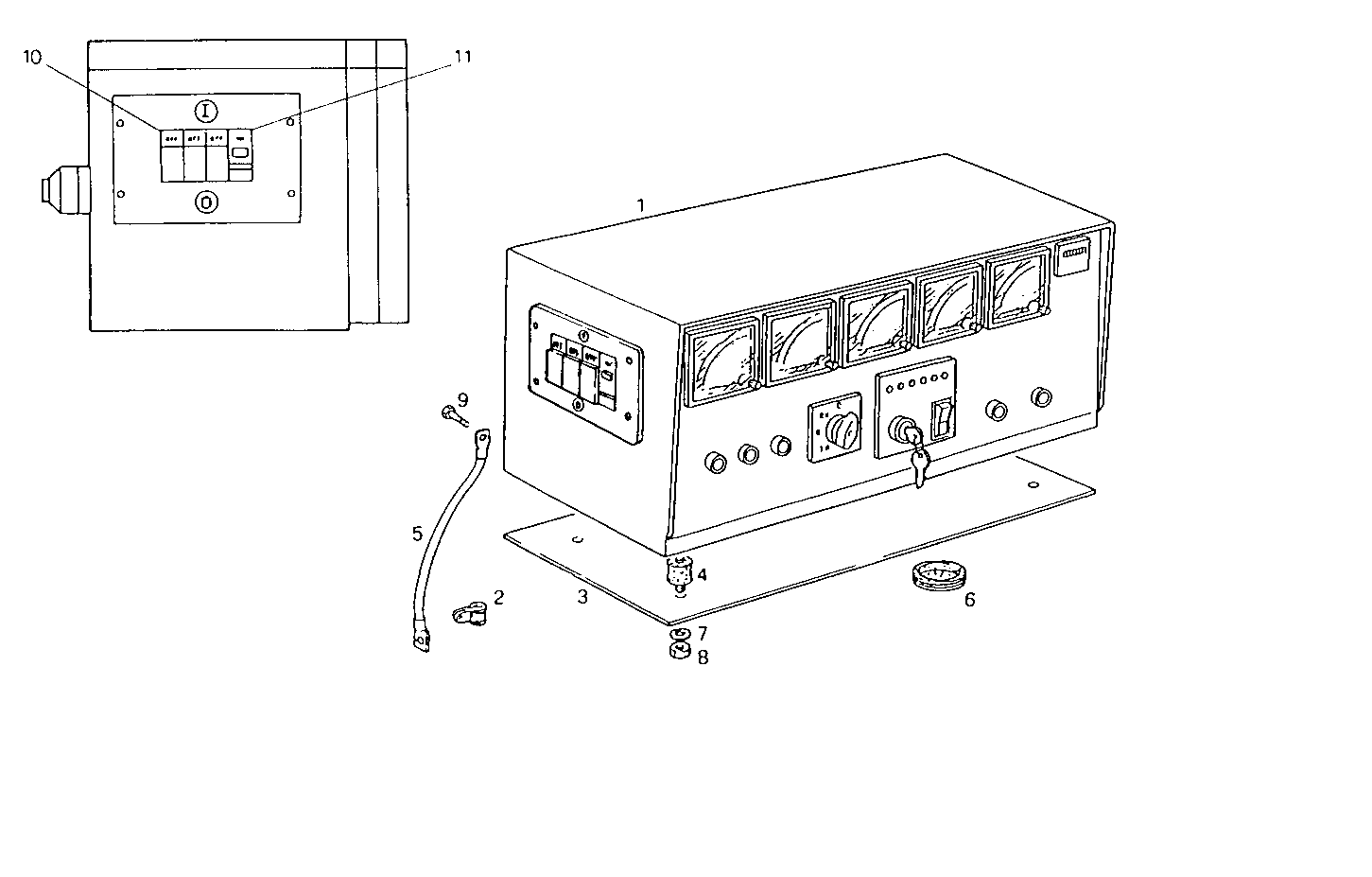

A60140034 MANUAL CONTROL BOARD FOR ELECT. MACHINE - MECC-ALTE

Iveco/FPT MANUAL CONTROL BOARD FOR ELECT. MACHINE

Item Part number Description
1 8021464 CONTROL BOARD ASSY 380V 60HZ
2 17314990 FASTENING BRACKET
3 8019125 COVER
4 8018462 RUBBER PAD
5 8104707 WIRE/CABLE
6 8113214 INSULATING RING
7 11199279 SPRING WASHER Ø5X10X0,5 MM
8 17037721 NUT M5X0,8
9 16603724 HEXAGON BOLT M6X20 MM (8.8)
10 8093325 SWITCH 40A
11 8093322 MINIMUN TENSION COIL
