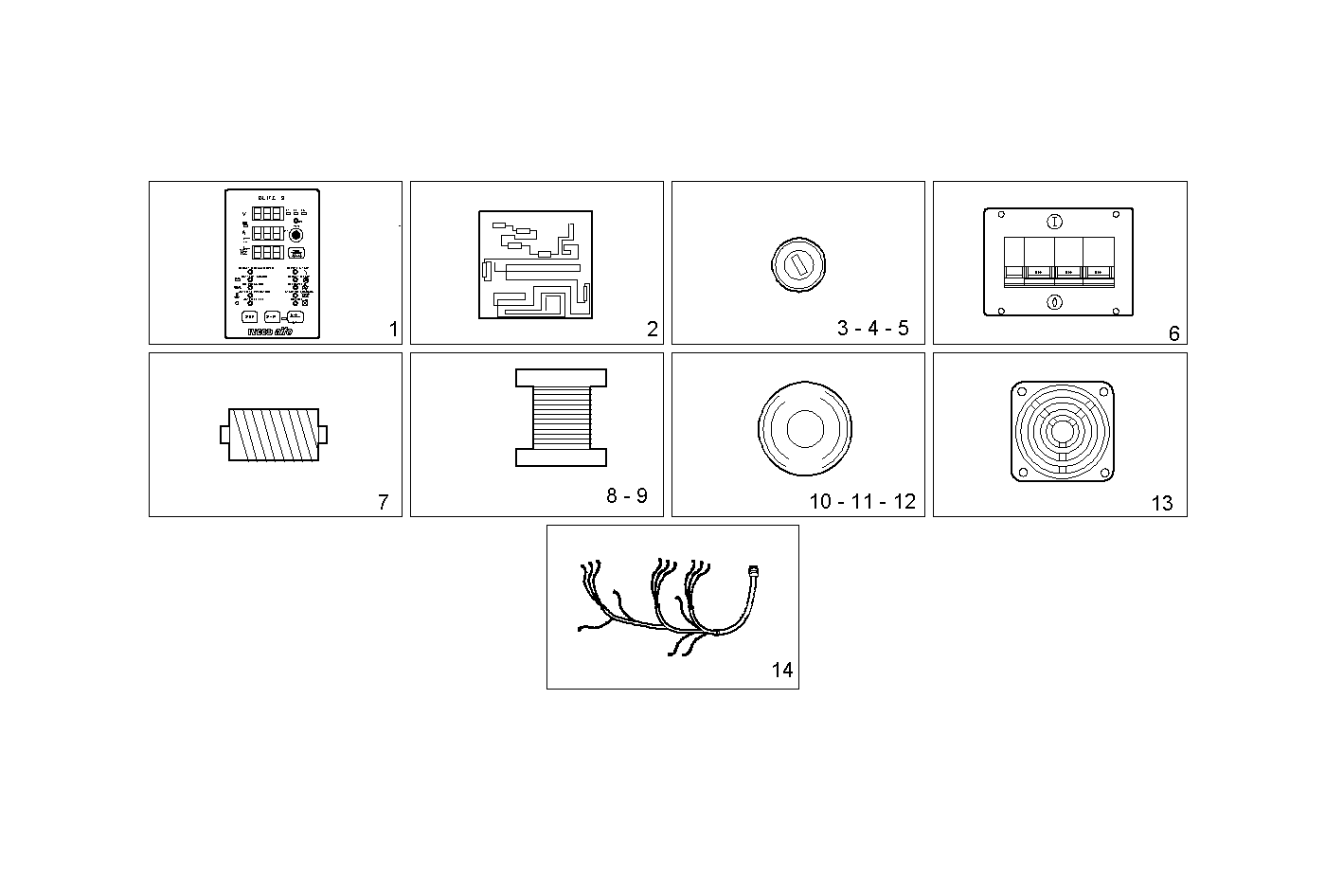

Q0000113 DIGITAL PANEL 12/24V - (components)

Iveco/FPT DIGITAL PANEL 12/24V

Item Part number Description
1 8093802 ELECTRONIC CARD
2 8093794 ELECTRONIC CARD
3 8094598 FUSE BOX
4 8094599 FUSE 2A
5 8094621 FUSE 15A
6 8094655 THERMOSWITCH
7 8094604 MINIMUN TENSION COIL
8 8094649 AMMETER TRANSFORMATOR
9 8094671 SPRING CONTACT
10 8094664 PUSH BUTTON
11 8094663 SPRING CONTACT
12 8094662 SPRING CONTACT
13 8094601 ACOUSTIC HORN
14 8094688 ENGINE HARNESS
