8031i06.05A500

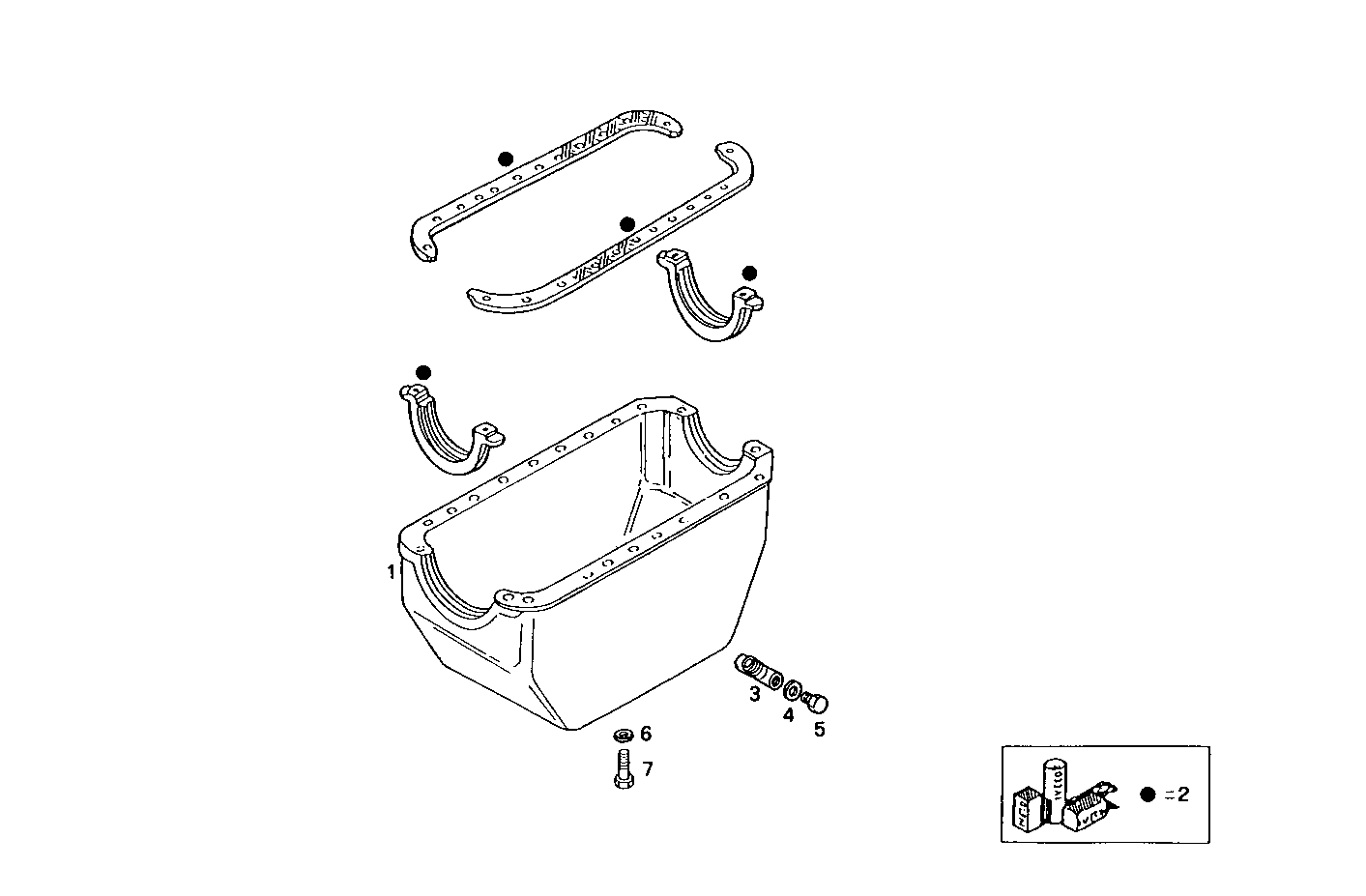

0420.110 OIL SUMP
Item | Part number | Description |
---|---|---|
1 | 500323558 | OIL SUMP ASSY |
2 | 8093451 | KIT-OILSUMP GASKET |
3 | 8024444 | PIPE SOCKET |
4 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
5 | 16992411 | THREADED PLUG M16X1,5 |
6 | 17095014 | WASHER Ø10X18 MM |
7 | 10923024 | HEXAGON BOLT M10X1,25X20 MM |
