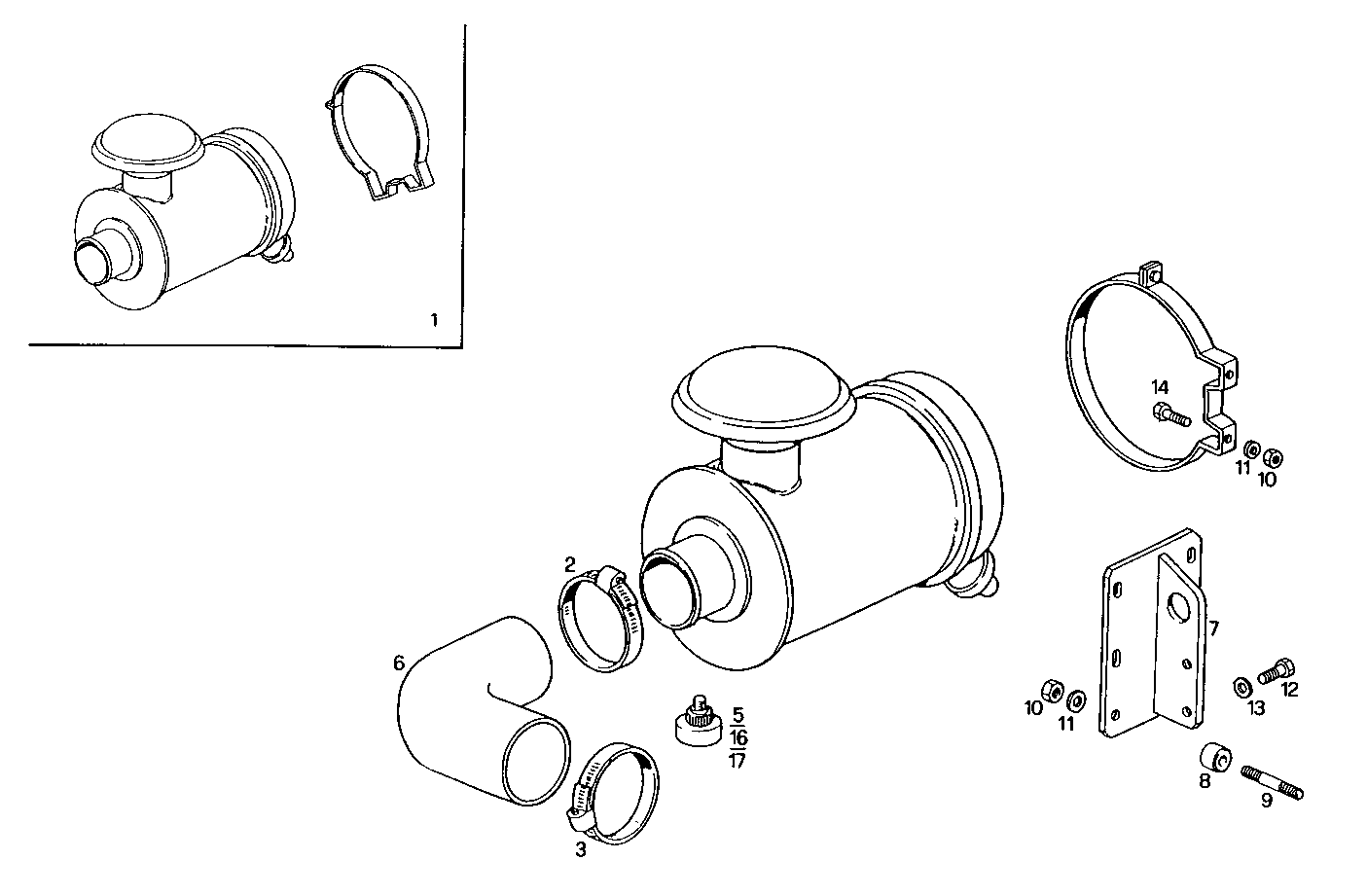

Item |
Part number |
Description |
1 |
8013301 |
AIR CLEANER ASSY |
2 |
17765091 |
CLIP Ø60/80 MM |
3 |
17765291 |
CLIP Ø80/100 MM |
5 |
4936137 |
CHOCKED FILTER INDIC. MECHANICAL |
6 |
8014438 |
FILTER HOSE |
7 |
8024404 |
SUPPORT |
8 |
8014718 |
SPACING BAR |
9 |
16729724 |
STUD M8X40 MM |
10 |
17037931 |
HEXAGON NUT M8X1,25 |
11 |
17089774 |
SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
12 |
15004021 |
HEXAGON BOLT M10X1,25X25 MM |
13 |
17090474 |
SPRING WASHER Ø10X27 MM SP=2,5 |
14 |
16605524 |
HEXAGON BOLT M8X20 MM |
16 |
8022540 |
CHOCKED FILTER INDIC. MECHANICAL |
17 |
8027294 |
CHOCKED FILTER INDIC. MECHANICAL |
