8031M06.01

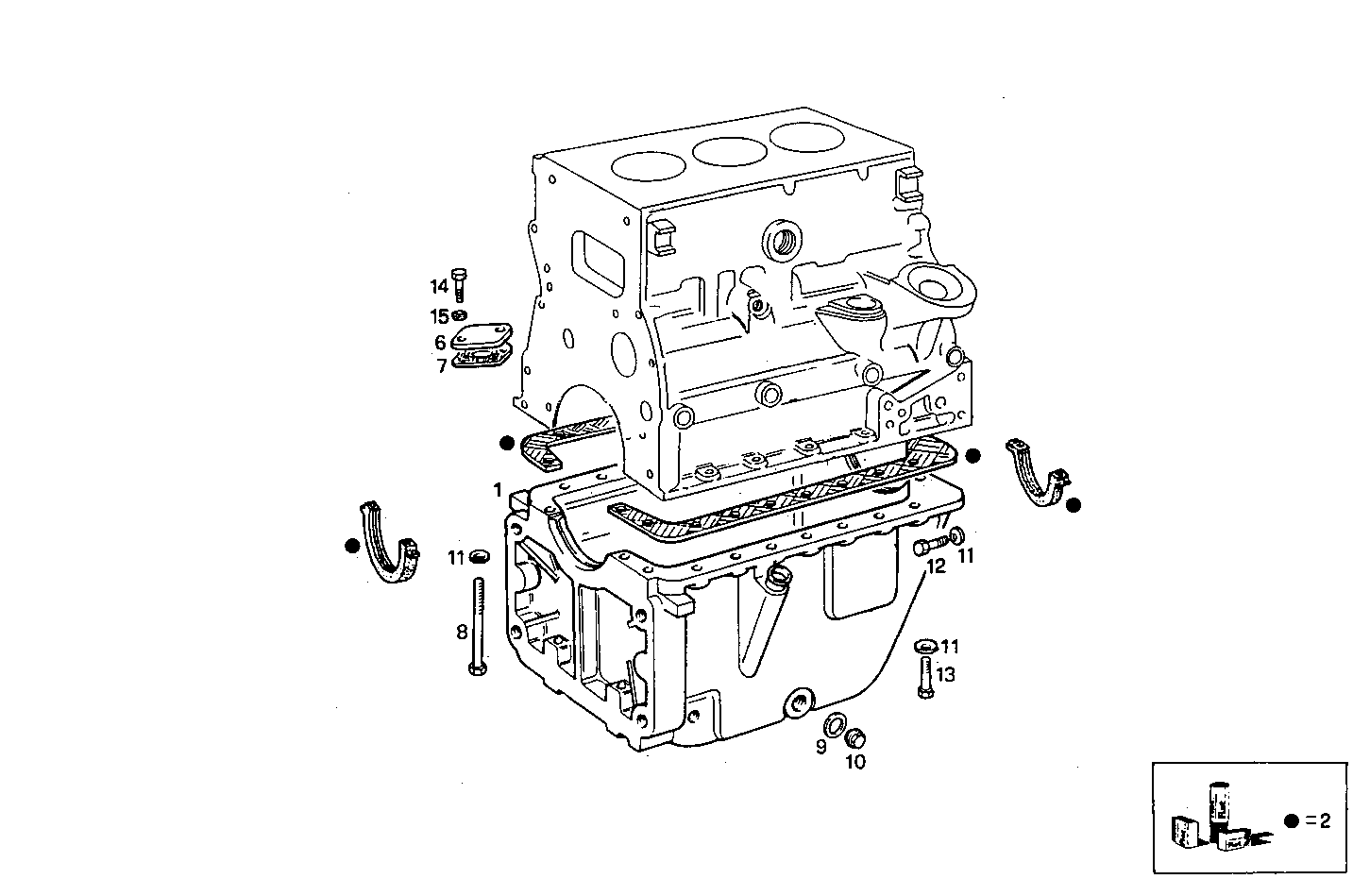

0420.011 OIL SUMP

Iveco/FPT OIL SUMP

Item Part number Description
1 4718675 OIL SUMP ASSY
2 8090692 KIT-OILSUMP GASKET
6 4793218 COVER
7 98401047 GASKET
8 4607933 SCREW M10X1,25X262 MM
9 16508460 WASHER 22x27x1,5
10 16993411 THREADED PLUG M22X1,5
11 17090174 SPRING WASHER Ø10X20 MM
12 11306924 HEXAGON BOLT M10X1,25X30 MM
13 11307024 SCREW M10X1,25X40 MM
14 16605524 HEXAGON BOLT M8X20 MM
15 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
