8035.05.550

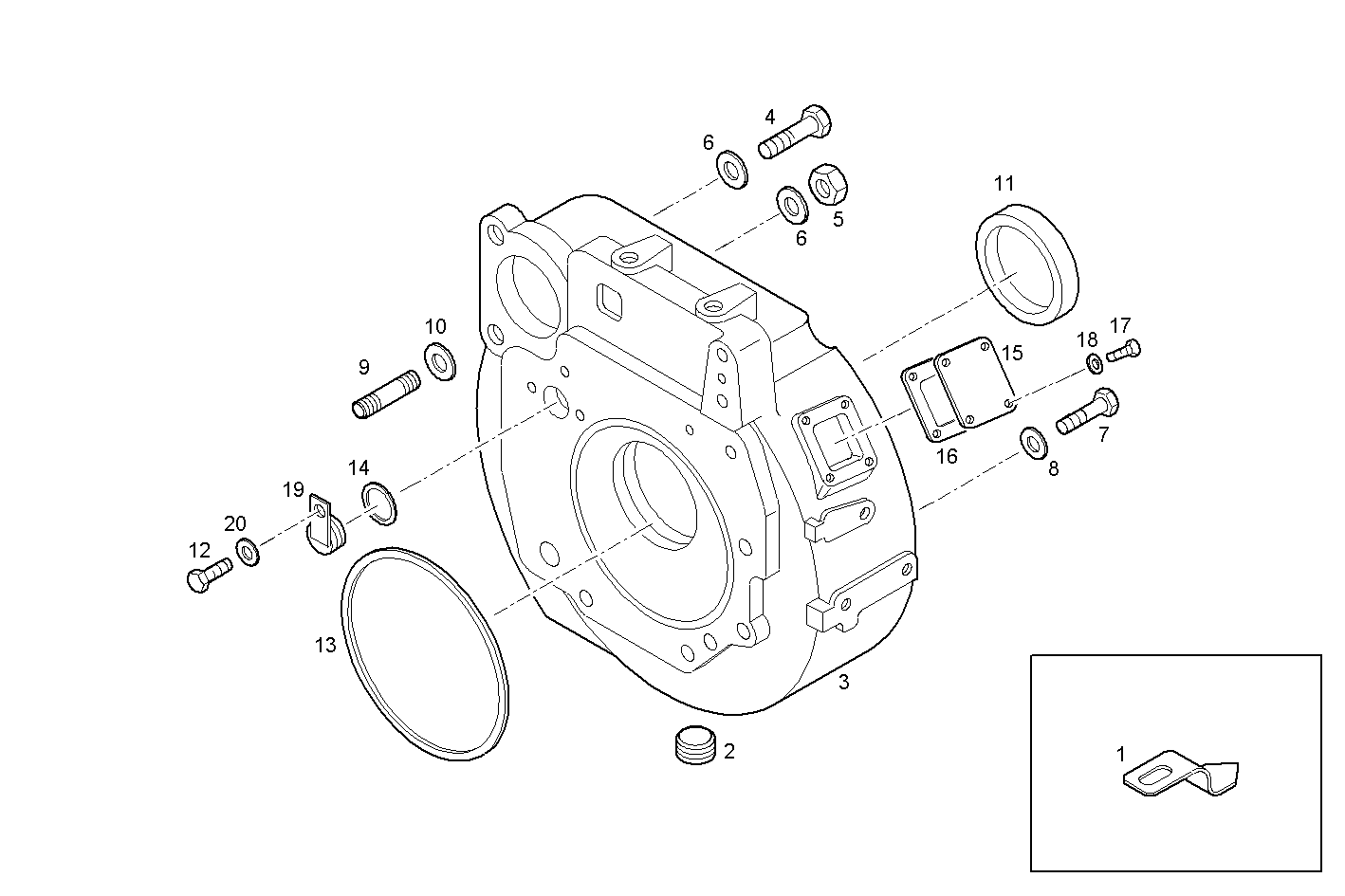

0430.005/02 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 4607466 CONNECTING PLATE
2 14325601 LOCK PLUG M35X1,5
3 500331916 FLYWHEEL HOUSING
4 16612324 HEXAGON BOLT M14X35 MM
5 17038725 NUT M14
6 17091974 SPRING WASHER Ø14X32 MM SP=3,4 MM
7 11306924 HEXAGON BOLT M10X1,25X30 MM
8 17090174 SPRING WASHER Ø10X20 MM
9 10839710 DOWEL PIN Ø10X15 MM
10 17094904 WASHER Ø8X16X1,6 MM
11 99457401 SHAFT SEAL CORCOS
12 16605424 SCREW M8X16 MM (8.8)
13 14483081 O-RING Ø5,33X196,2 MM
14 17289281 O-RING Ø34,5 MM SP=3,53 MM
15 500330791 COVER
16 98417986 FLAT ENGINE GASKET
17 15000724 HEXAGON BOLT M8X22 MM (8.8)
18 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
19 4718740 PLUG
20 17089574 WASHER Ø8X16 MM
