8035.05P.932

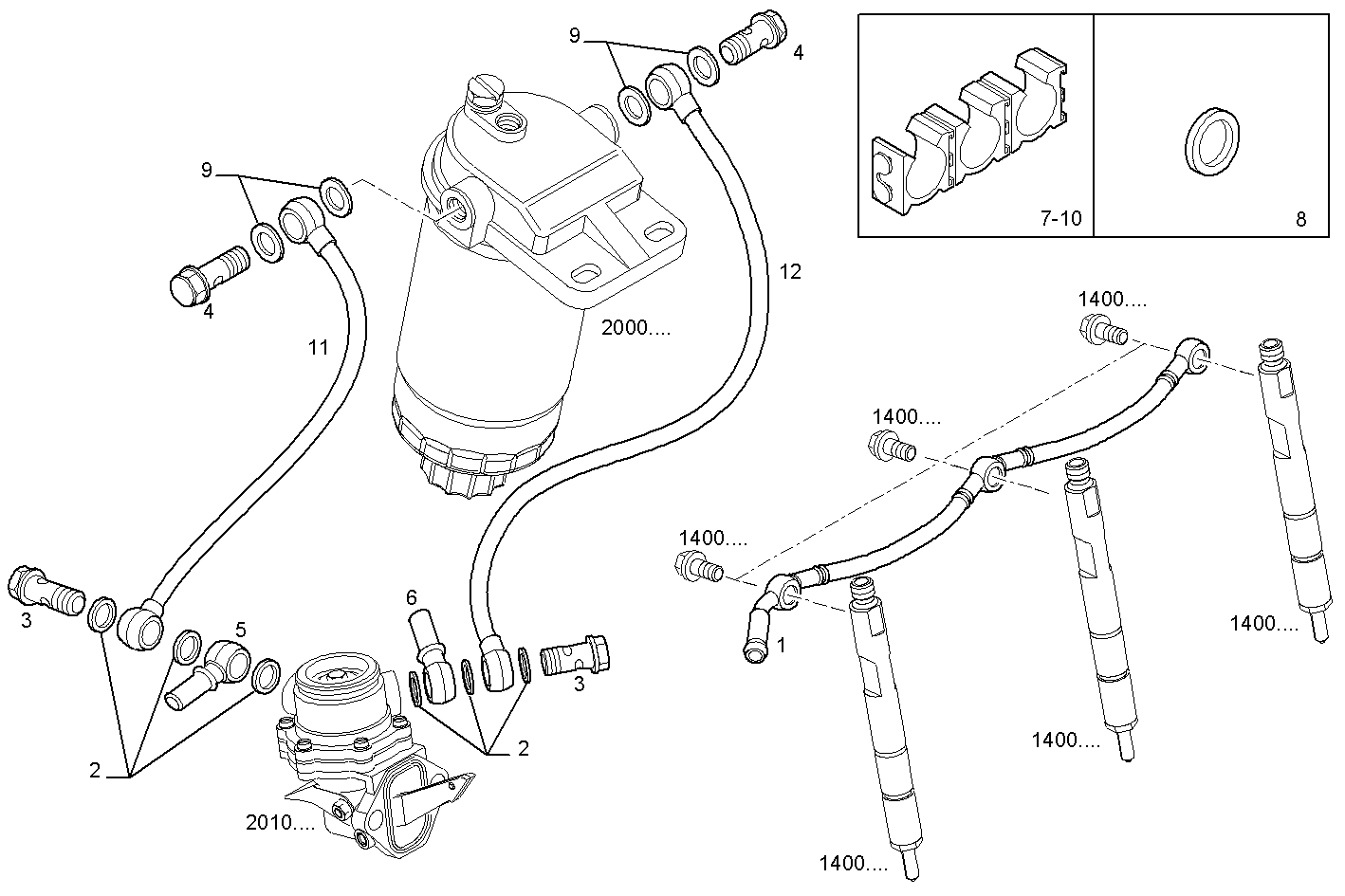

2030.007 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4772020 | FUEL LINE |
| 2 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 3 | 504081281 | SCREW CONNECTOR M12X1,5 |
| 4 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 5 | 98416591 | SWIVEL COUPLING |
| 6 | 98417520 | PIPE SOCKET |
| 7 | 98421187 | SPRING CLAMP |
| 8 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
| 9 | 98474308 | SEAL GASKET Ø14X22 MM |
| 10 | 500368357 | SPRING CLAMP |
| 11 | 504047459 | FUEL LINE |
| 12 | 504273735 | FUEL LINE |
