8035E00.00

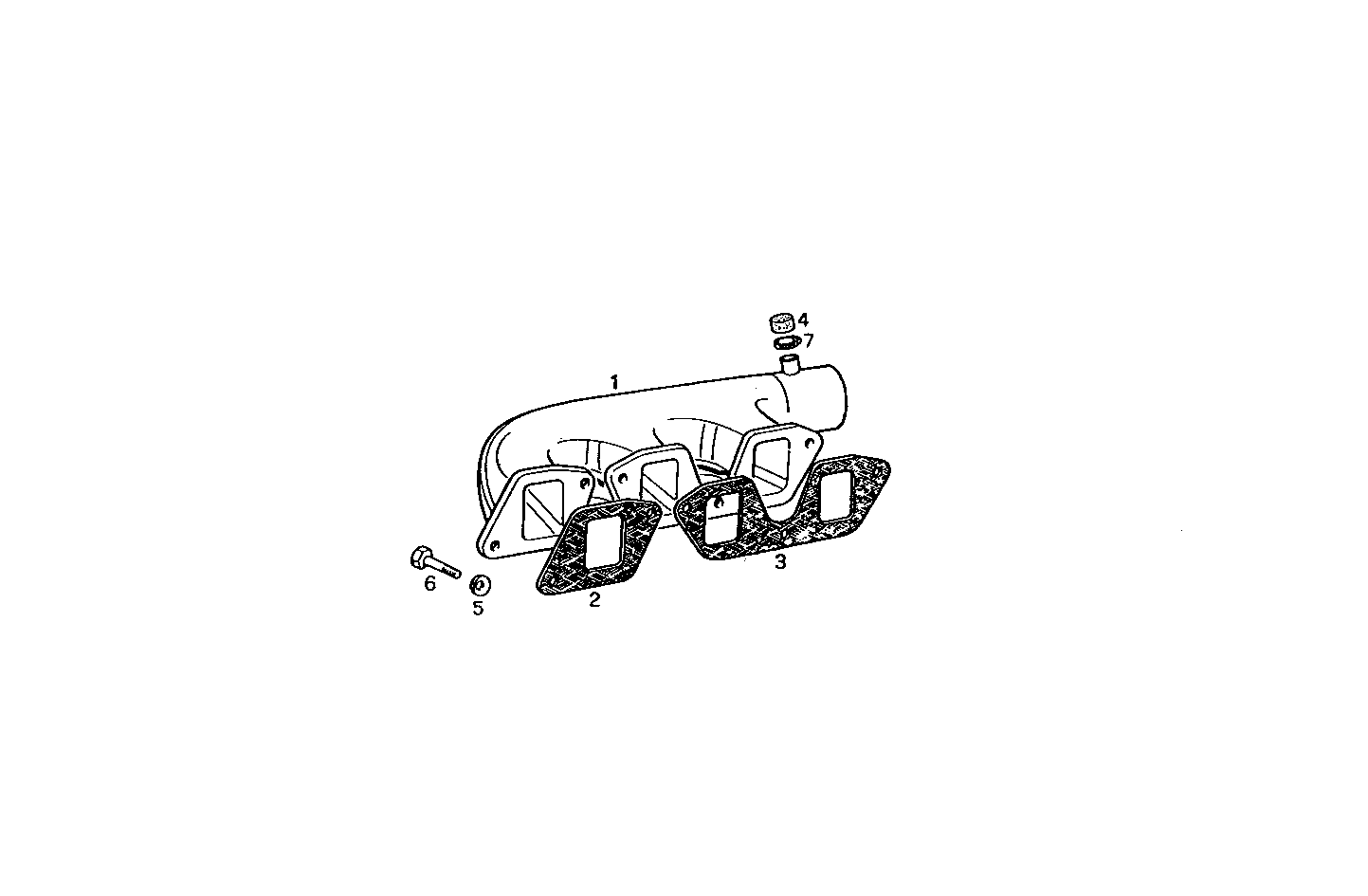

A05030006 INTAKE MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 500320916 | INTAKE ELBOW |
| 2 | 504092110 | INTAKE ELBOW GASK. |
| 3 | 504092109 | INTAKE ELBOW GASK. |
| 4 | 8018592 | PLUG |
| 5 | 17089574 | WASHER Ø8X16 MM |
| 6 | 16605534 | HEXAGON BOLT M8X20 MM (10.9) |
| 7 | 18088591 | CLIP |
