8035E00.01

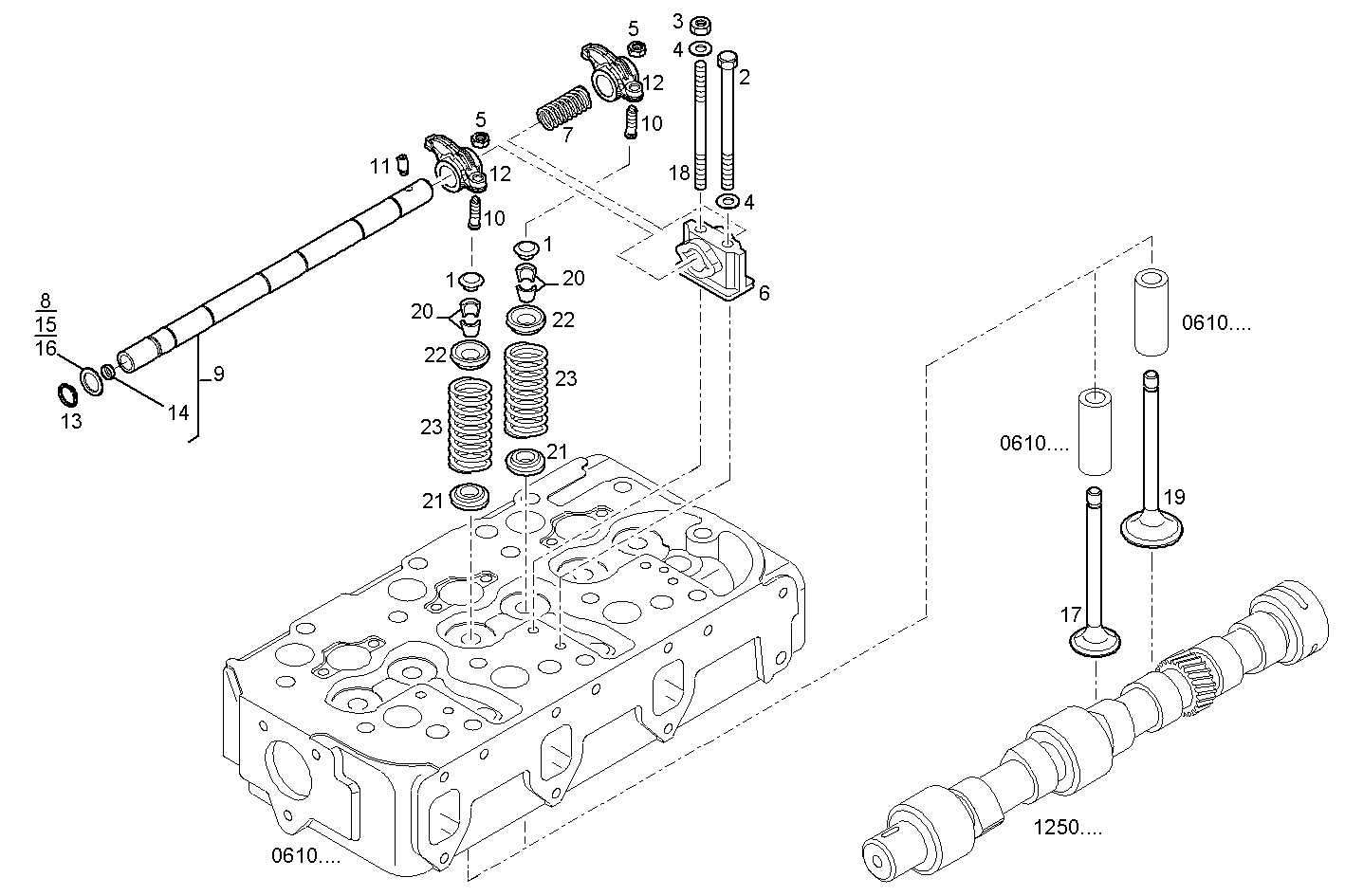

0610.035/02 CYLINDER HEAD

Iveco/FPT CYLINDER HEAD

Item Part number Description
1 4838680 VALVE CAP
2 16606424 HEXAGON BOLT M8X65 MM
3 17037925 HEXAGON NUT M8X1,25
4 17094914 WASHER 8x16
5 4338920 ADJUSTING NUT
6 4601295 ROCKER BRACKET
7 4601296 ROCKER ARM SPRING
8 4639661 SUPPORT RING SP=1 MM
9 4682990 ROCKER SHAFT ASSY
10 4699783 ROCKER ARM SCREW
11 4846851 SPIGOT SCREW
12 4848973 ROCKER ARM ASSY
13 11066676 CIRCLIP Ø18 MM
14 16987801 LOCK PLUG Ø12 MM
15 4570798 SUPPORT RING SP=0,7 MM
16 4570799 SUPPORT RING SP=0,5 MM
17 1908410 EXHAUST VALVE
18 98458149 STUD [from 608189]
19 1908408 INLET VALVE
20 4819891 VALVE CONE
21 4817424 SPRING CAP BOTTOM
22 4780558 SPRING CAP TOP
23 4812347 ENGINE VALV.SPRING
