8035E00.01

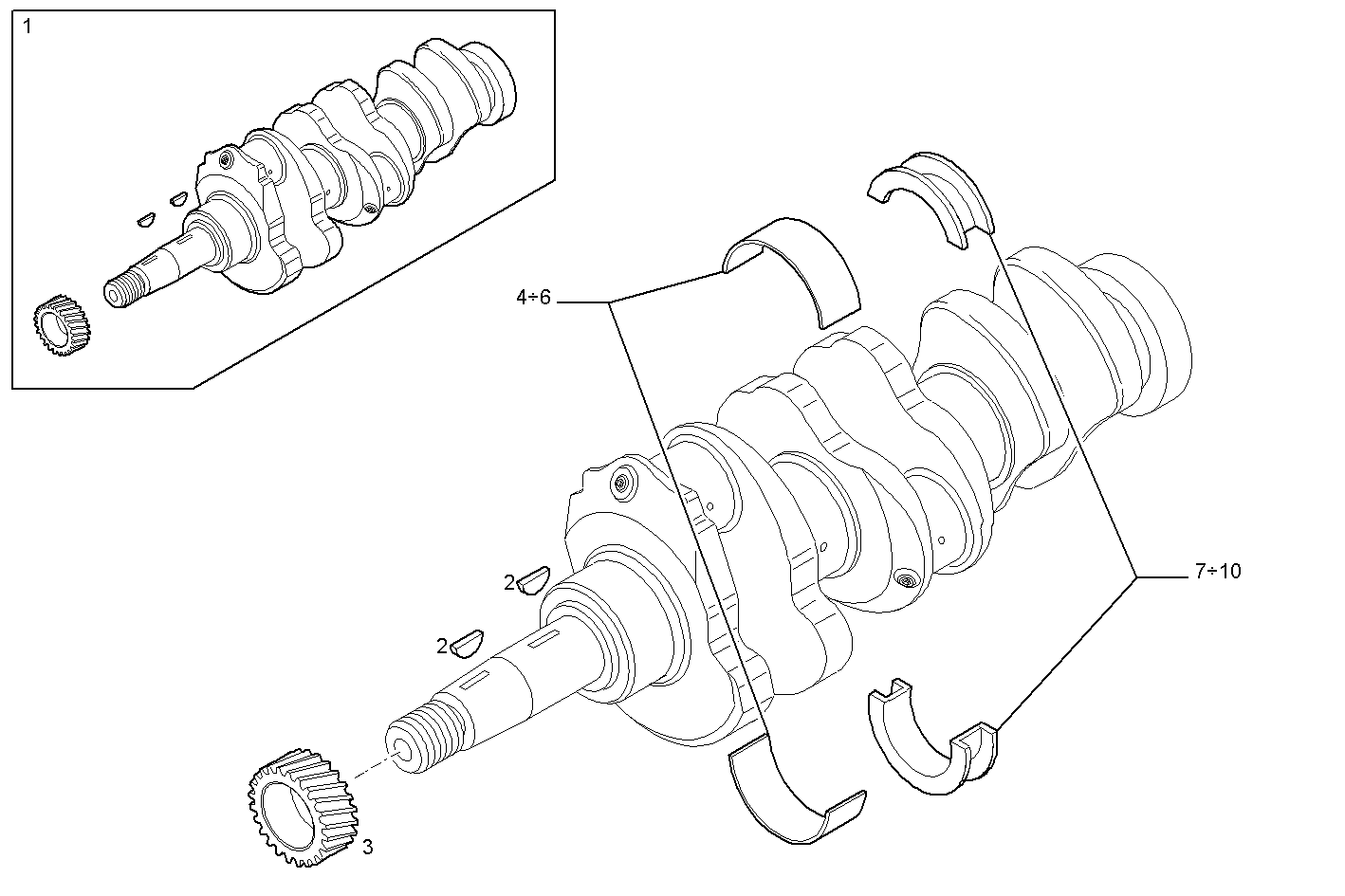

0801.035 CRANK SHAFT
| Item | Part number | Description |
|---|---|---|
| 1 | 98461246 | CRANK SHAFT ASSY |
| 2 | 4655844 | KEY |
| 3 | 4809524 | TIMING DRIVE GEAR |
| 4 | 1930812 | MAIN BEARING SET STD |
| 5 | 1930813 | MAIN BEAR.SET -0,254 |
| 6 | 1930814 | MAIN BEAR.SET -0,508 |
| 7 | 1901385 | THRUSTRING SET STD |
| 8 | 1901386 | THRUSTRING SET+0.127 |
| 9 | 1901387 | THRUSTRING SET+0.254 |
| 10 | 1901388 | THRUSTRING SET+0.508 |
