8035E00.01

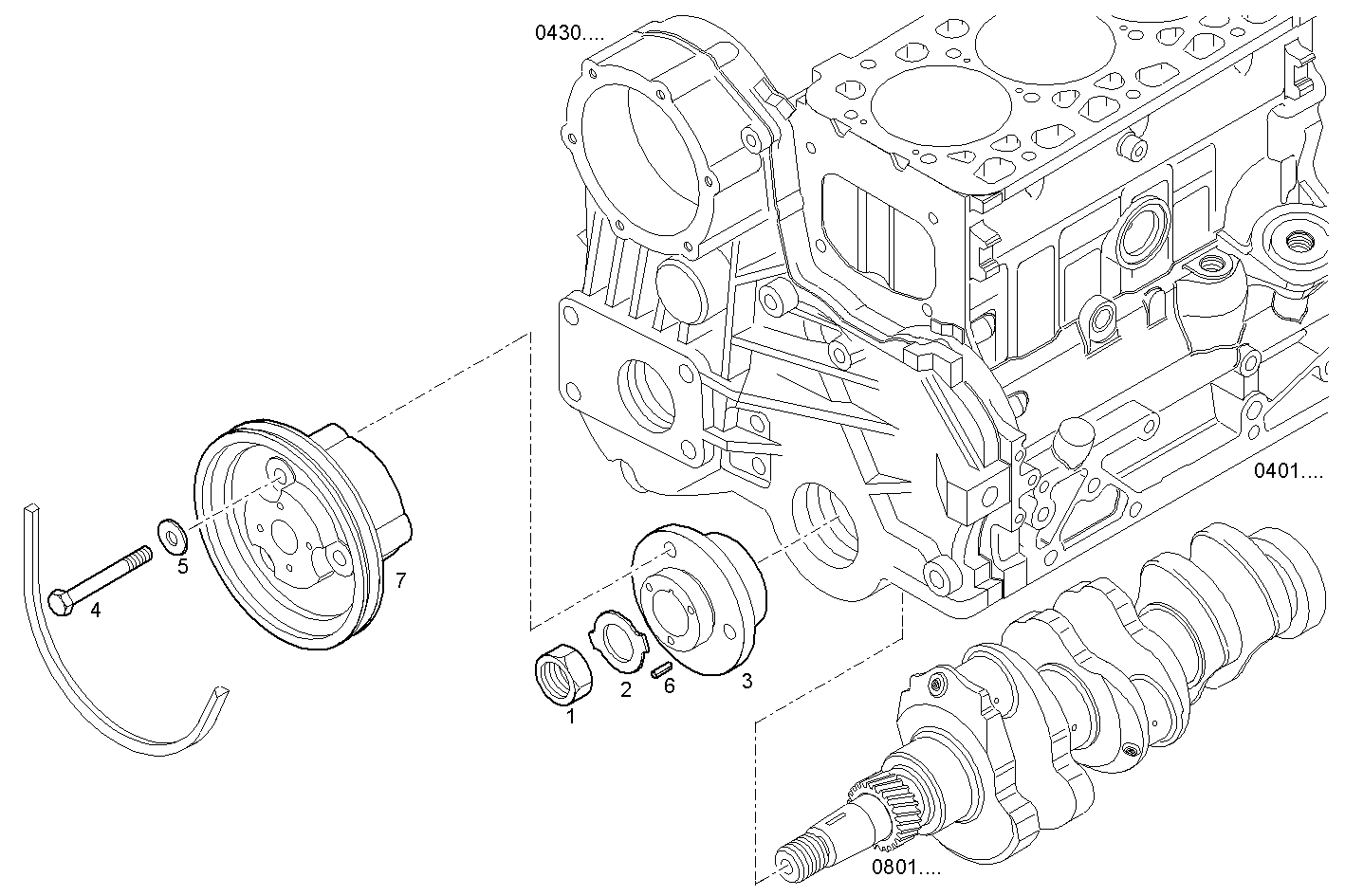

0840.003 VIBRATION DAMPER
Item | Part number | Description |
---|---|---|
1 | 4600189 | NUT |
2 | 4600190 | LOCKING PLATE |
3 | 4655915 | HUB |
4 | 15888734 | HEXAGON BOLT M10X1,25X55 MM |
5 | 17090174 | SPRING WASHER Ø10X20 MM |
6 | 17254970 | DOWEL PIN Ø5 MM |
7 | 98490894 | PULLEY [up to ...] |
