8035E00.01

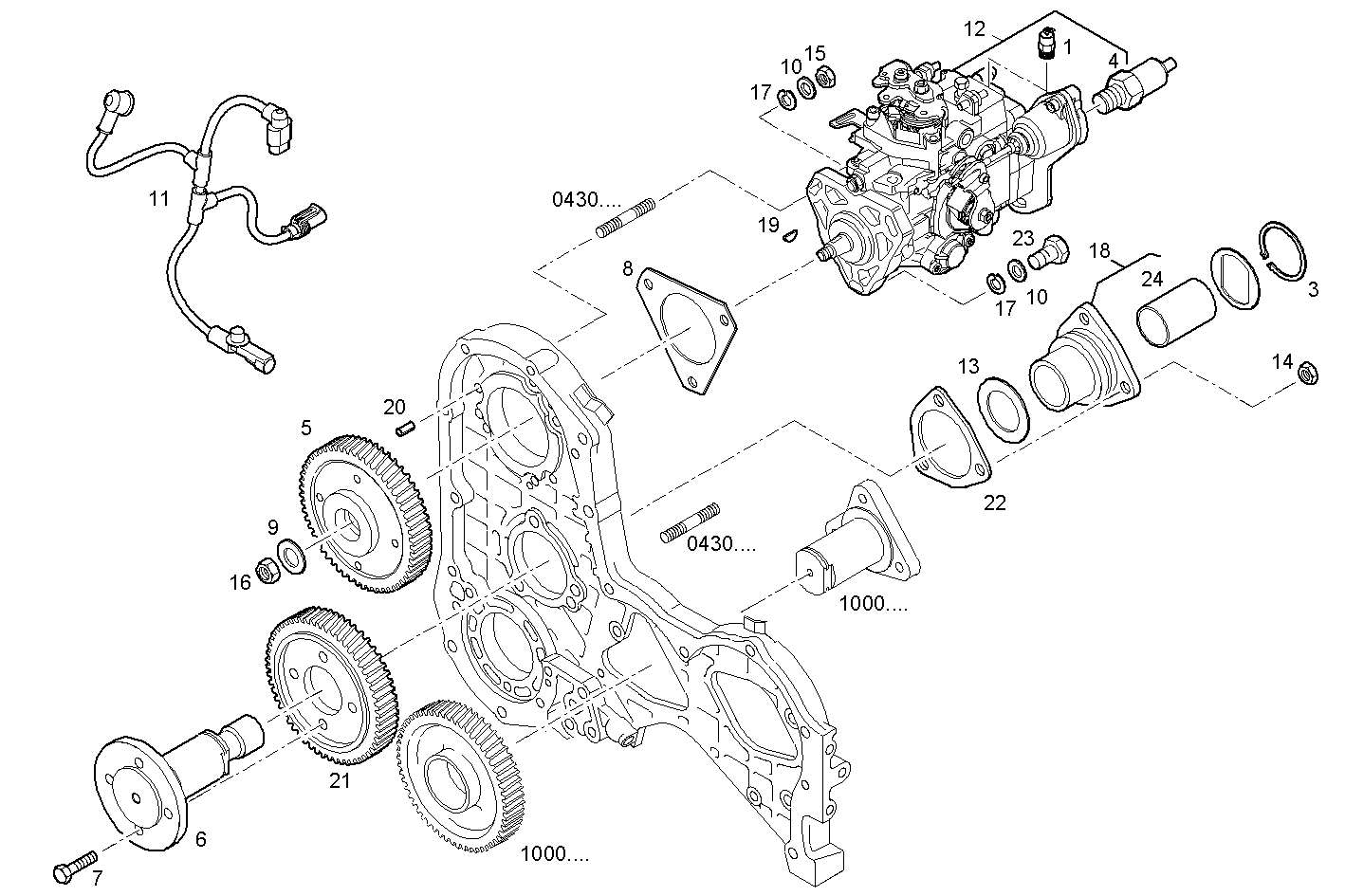

1400.064/02 INJECTION PUMP ASSY
Item | Part number | Description |
---|---|---|
1 | 42533181 | ELECTROVALVE 12V |
2 | 4667452 | SUPPORT RING |
3 | 4769420 | CIRCLIP |
4 | 93160151 | TRANSMITTER KSB |
5 | 504064597 | INJ.PUMP DRIV.GEA |
6 | 4784054 | INJECT.PUMP SPIND REAR |
7 | 4798845 | SCREW |
8 | 4851923 | FLAT ENGINE GASKET |
9 | 11194179 | SPRING WASHER Ø15 MM |
10 | 12647124 | WASHER Ø8X20 MM |
11 | 504088077 | WIRE/CABLE |
12 | 504054473 | DISTRIB.INJ.PUMP ASSY |
13 | 98465565 | SUPPORT RING |
14 | 17037725 | NUT |
15 | 17037921 | HEXAGON NUT M8X1,25 |
16 | 12164021 | HEXAGON NUT M14X1,5 |
17 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
18 | 98465563 | SUPPORT ASSY |
19 | 17221020 | KEY M12X110 MM |
20 | 17260570 | DOWEL PIN |
21 | 98445955 | GEAR |
22 | 98400787 | FLAT ENGINE GASKET |
23 | 61315661 | HEXAGON BOLT M8X30 |
24 | 4769418 | BUSH |
