8035E00.01

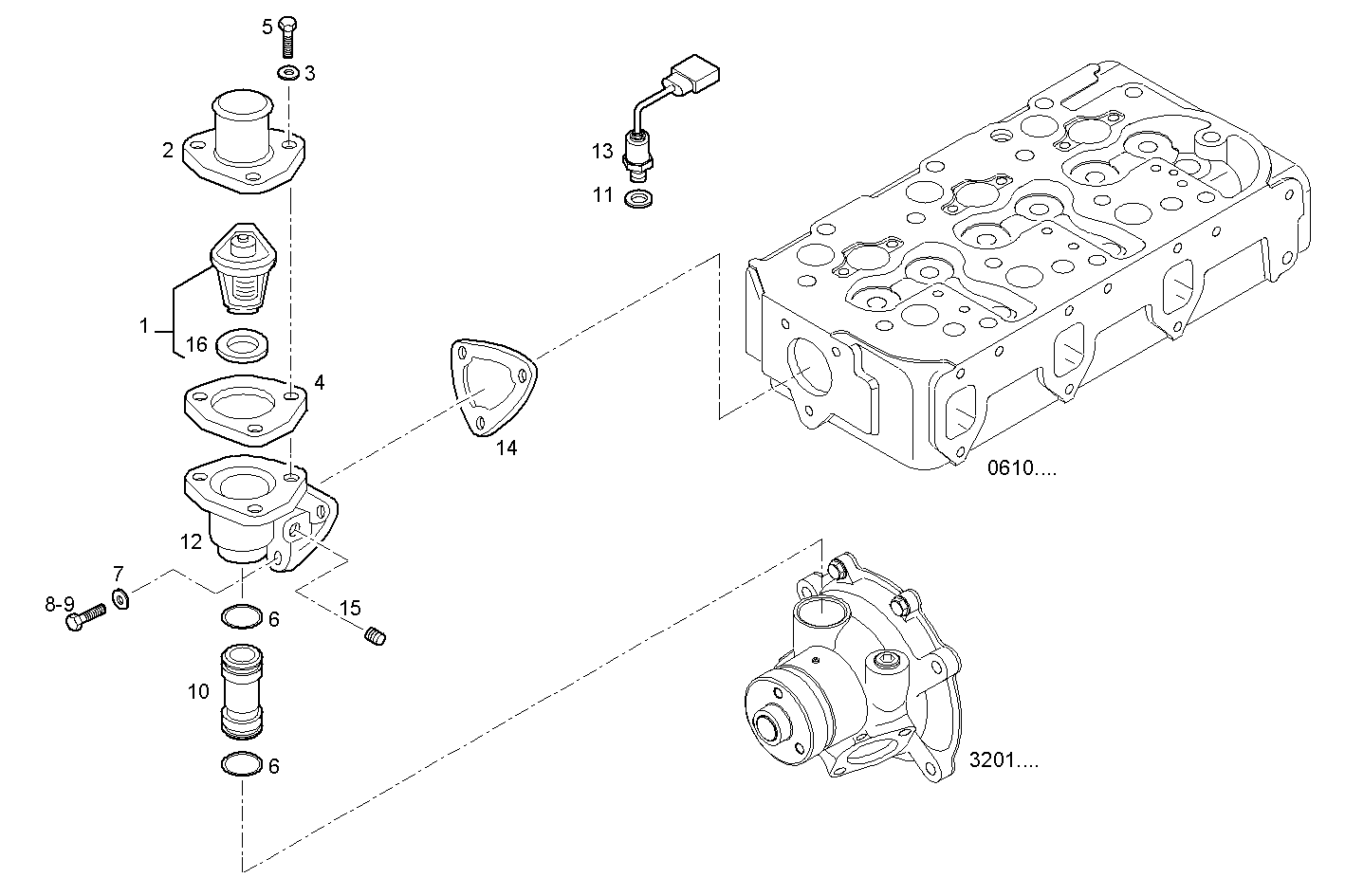

3260.058 TEMPERATURE REGULATOR

Iveco/FPT TEMPERATURE REGULATOR

Item Part number Description
1 98463637 THERMOSTAT ASSY
2 4661543 COVER
3 17089574 WASHER Ø8X16 MM
4 98482590 GASKET
5 16605625 HEXAGON BOLT M8X25
6 17282281 O-RING 2,62x23,47
7 17090174 SPRING WASHER Ø10X20 MM
8 11234731 HEXAGON BOLT M10X1,25X45 MM
9 15004021 HEXAGON BOLT M10X1,25X25 MM
10 504123603 PIPE SOCKET
11 16508260 WASHER Ø16X20 MM
12 4823619 THERMOSTAT BODY
13 504088112 TEMP. TRANSMITTER
14 4851926 FLAT ENGINE GASKET
15 500378047 PLUG M20X1,5
16 4823212 RUBBER GASKET
