8035E15.00A500

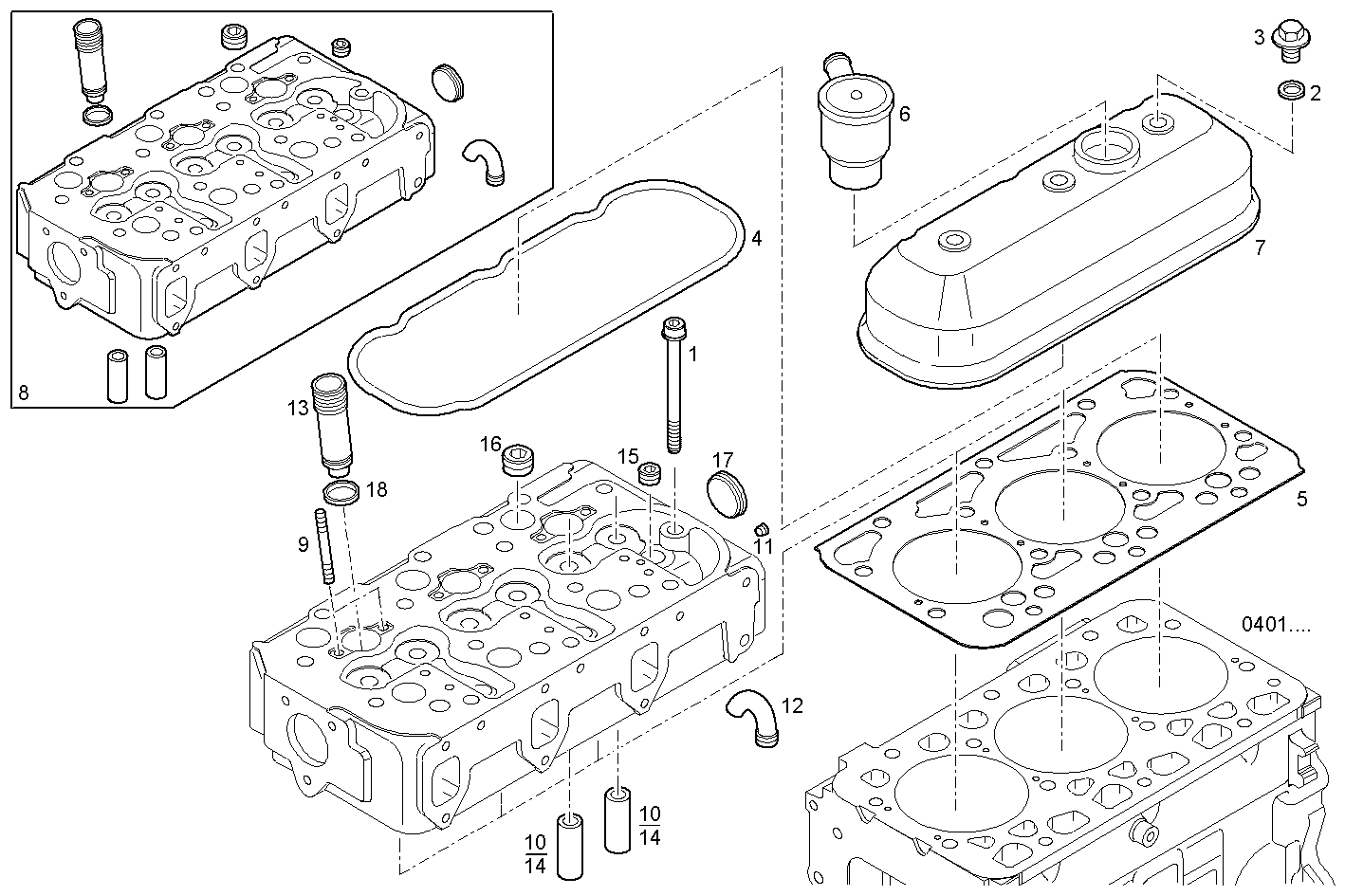

0610.026/01 CYLINDER HEAD
Item | Part number | Description |
---|---|---|
1 | 4796457 | CYL.HEAD STUD |
2 | 98416134 | WASHER [from 555940] |
3 | 98417659 | NUT [from 555940] |
4 | 99460554 | HEAD COVER GASKET |
5 | 99481361 | CYL.HEAD GASKET SP=1,55 MM |
6 | 99445821 | BREATHER |
7 | 99460556 | CYL. HEAD COVER |
8 | 504067369 | CYLINDER HEAD ASSY |
9 | 500380521 | STUD M8X12X45 |
10 | 4802127 | VALVE GUIDE +0,2 |
11 | 99434231 | THREADED PLUG M10X1,25 |
12 | 4818862 | WATER CONVEYOR |
13 | 4770859 | NOZZLE HOLDER SEAT |
14 | 4802126 | VALVE GUIDE |
15 | 14282170 | LOCK PLUG Ø20 MM |
16 | 16990870 | LOCK PLUG Ø28 MM |
17 | 16991370 | LOCK PLUG Ø45 MM |
18 | 17278981 | O-RING Ø25,12 MM SP=1,78 MM |
