8035E15.00A500

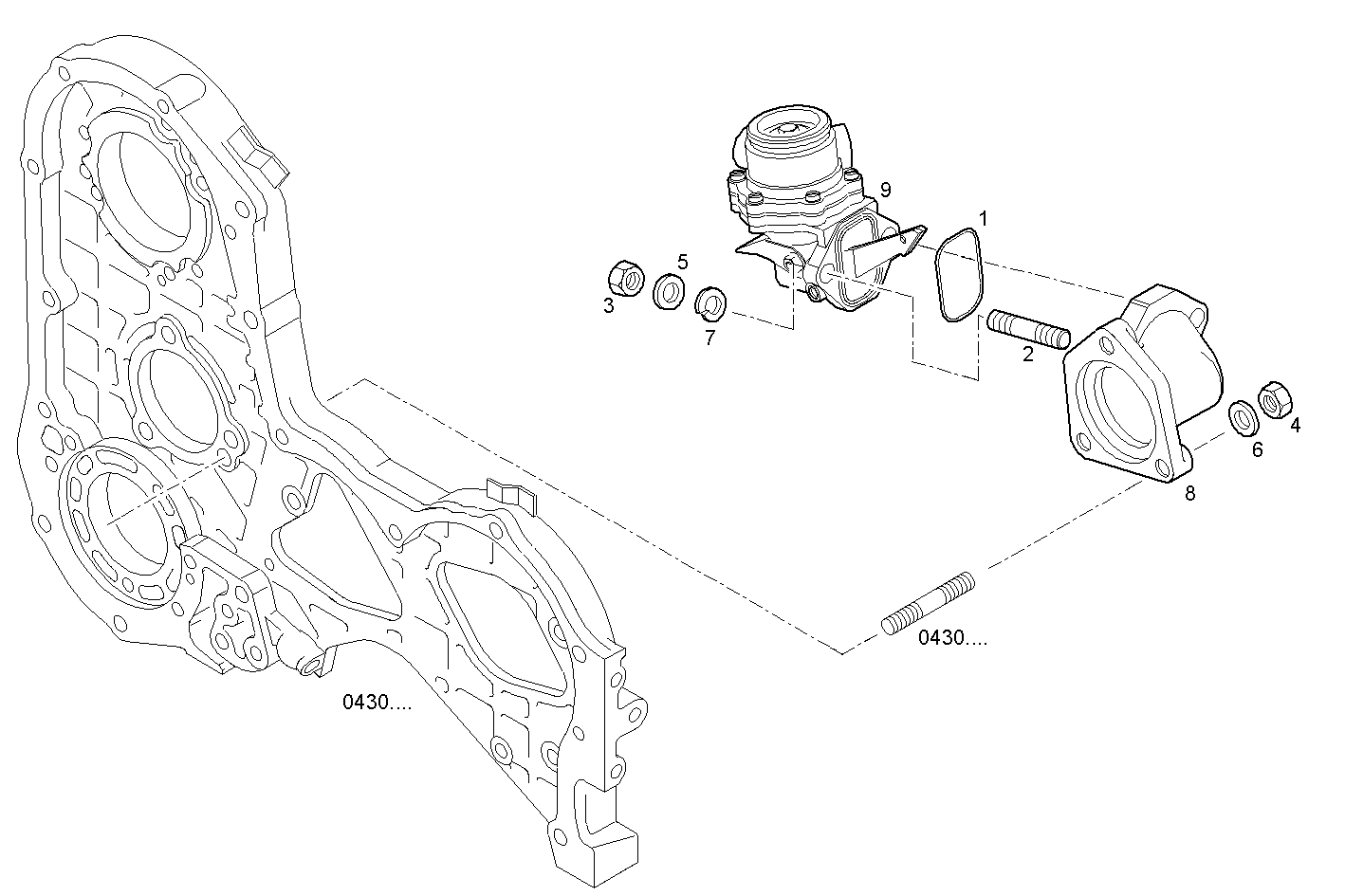

2010.006 FUEL PUMP

Iveco/FPT FUEL PUMP

Item Part number Description
1 4847092 O-RING
2 13516920 STUD
3 17037925 HEXAGON NUT M8X1,25
4 17038221 HEXAGON NUT M10
5 17094924 WASHER Ø8X16 MM
6 17097124 WASHER 10x21
7 17798274 SPRING WASHER Ø8,2X14,9 MM
8 98467028 SUPPORT
9 504090935 FUEL PUMP
