8035M06.00A550

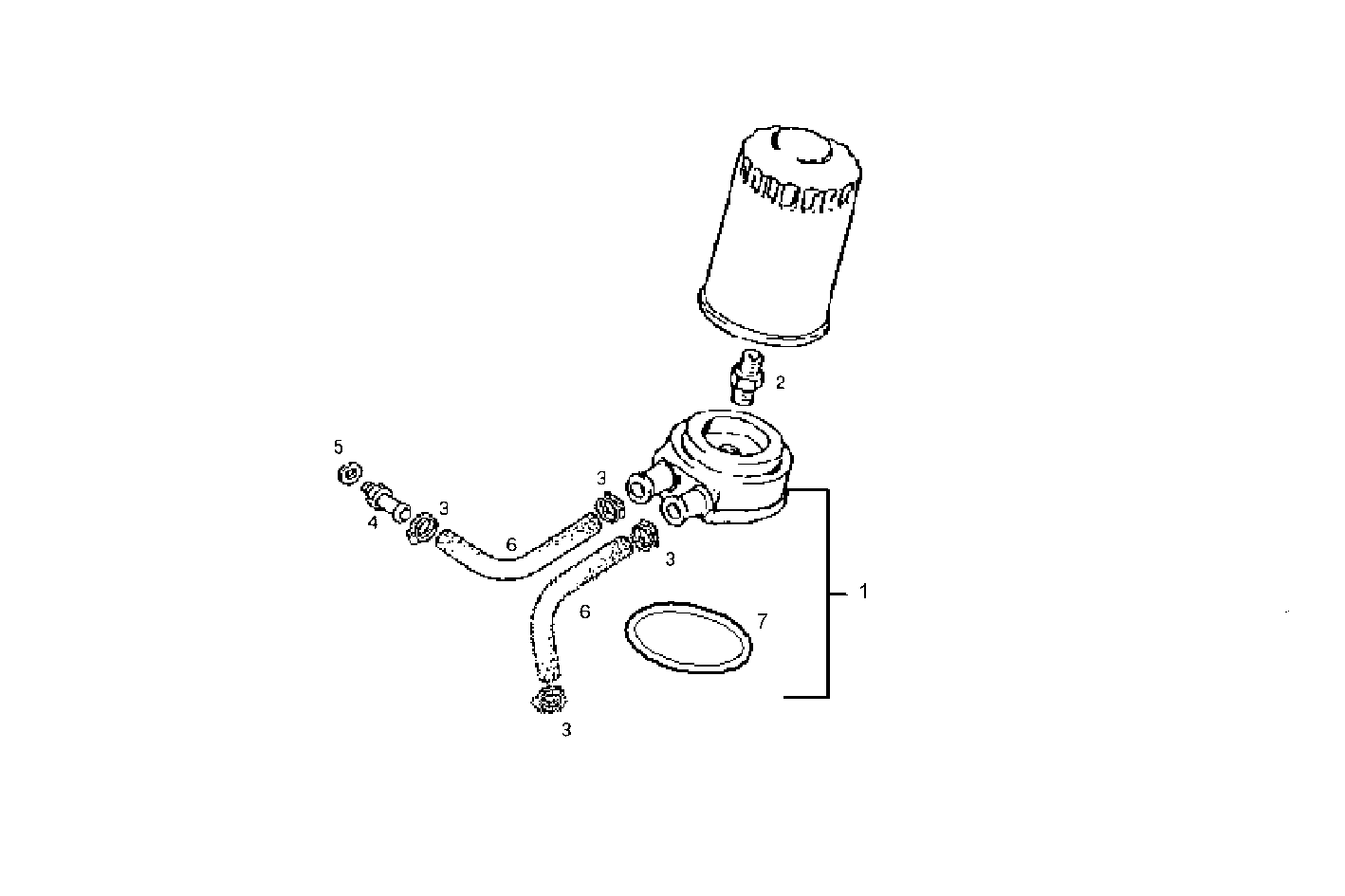

3100.078 OIL - WATER HEAT EXCHANGER
Item | Part number | Description |
---|---|---|
1 | 8020325 | OIL/WATER HEAT EXCHANGER |
2 | 7301881 | PIPE SOCKET |
3 | 18088391 | CLIP Ø16/25 MM |
4 | 98418647 | PIPE SOCKET |
5 | 10263460 | WASHER Ø22X28X1,5 MM |
6 | 8019449 | WATER HOSE |
7 | 98429617 | RUBBER RING |
