8035M06.01

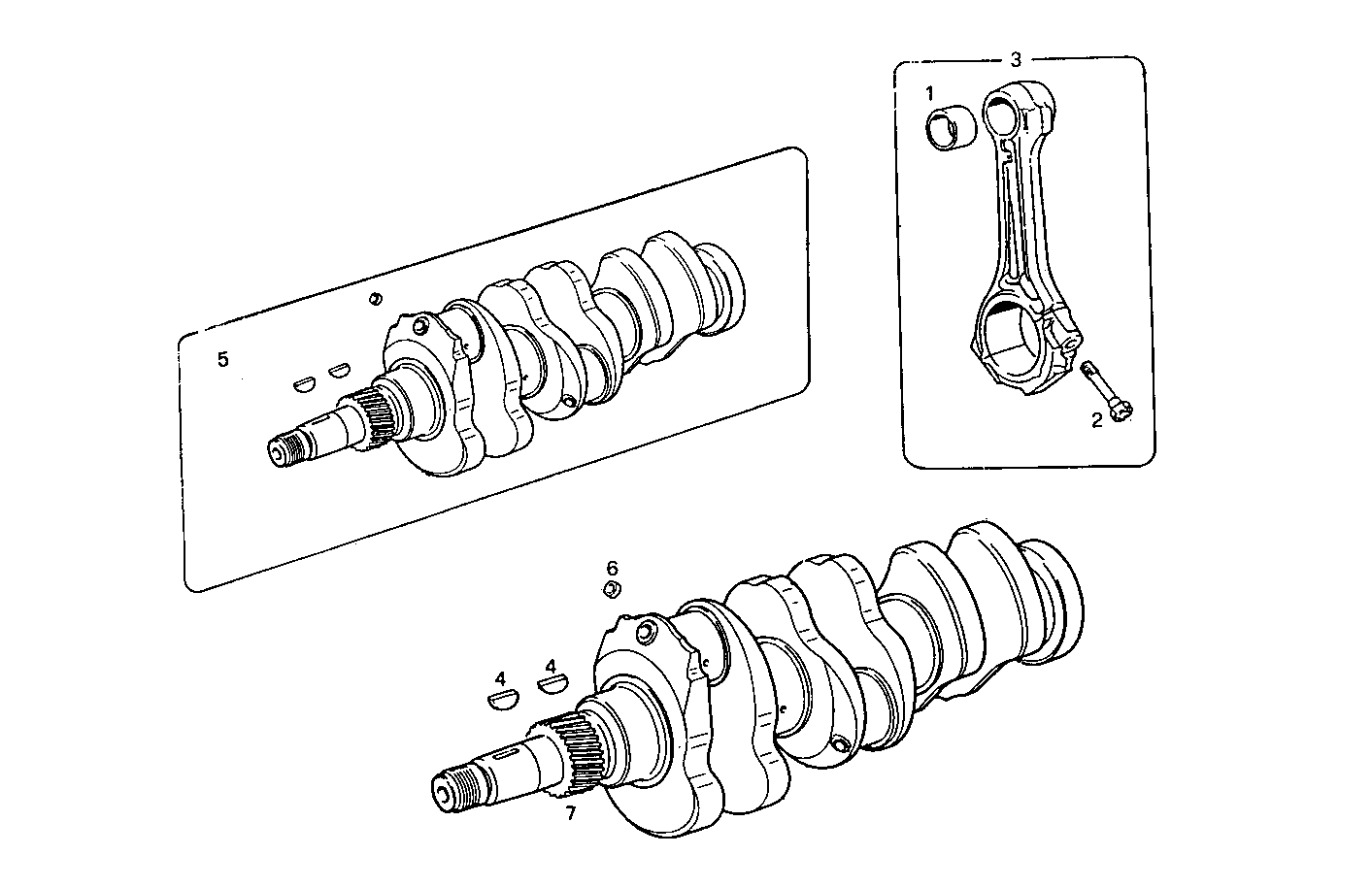

0800.001 CRANK SHAFT - CONNECTING RODS

Iveco/FPT CRANK SHAFT - CONNECTING RODS

Item Part number Description
1 98460411 BIG-END BUSH
2 4780627 BIG-END BOLT
3 98461751 CONN.ROD ASSY. ASSY
4 4655844 KEY
5 98461246 CRANK SHAFT ASSY
6 16987501 LOCK PLUG Ø7 MM
7 4772693 GEAR
