8035M06.01

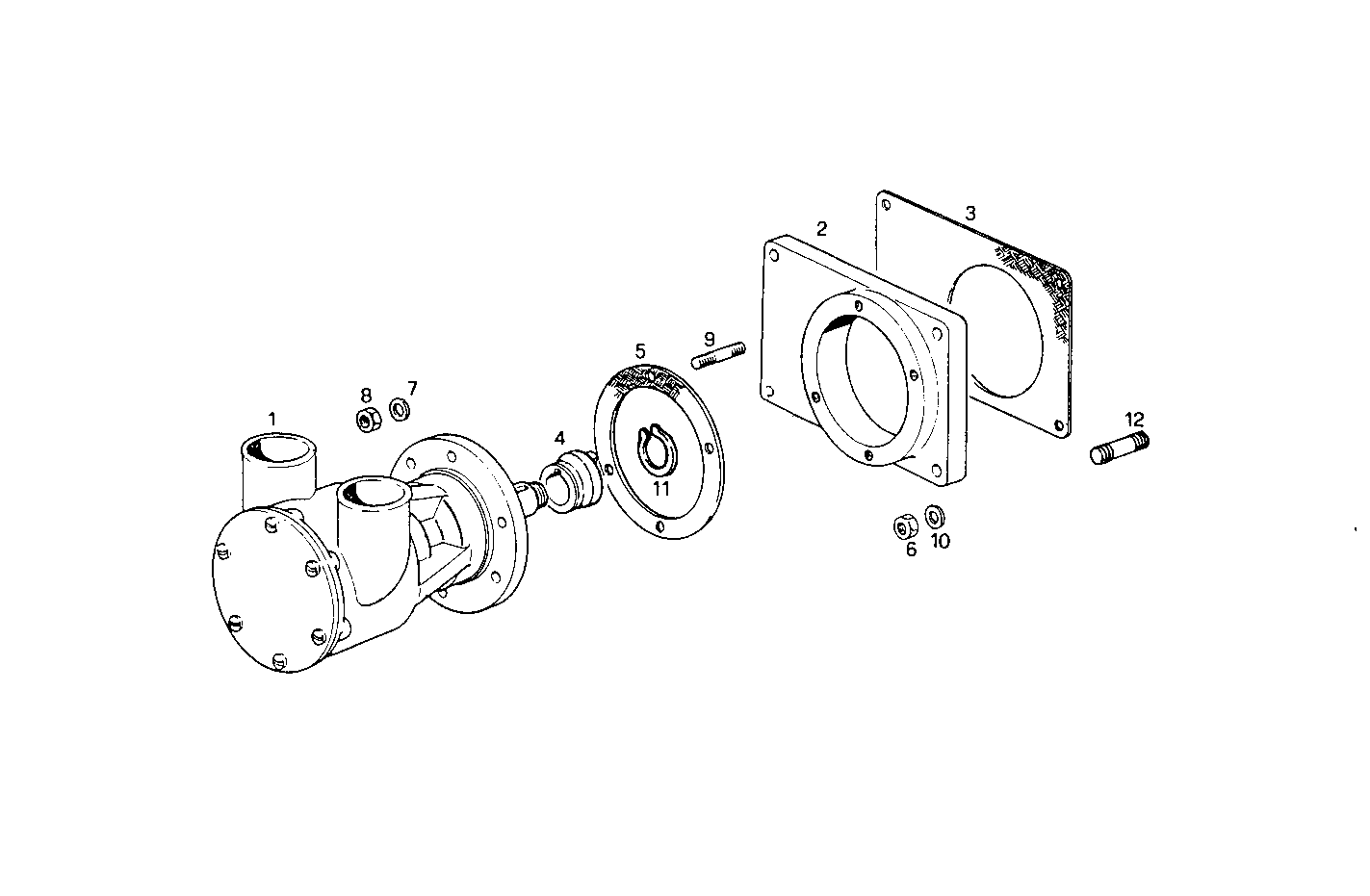

3380.024/01 SEA WATER PUMP - JABSCO

Iveco/FPT SEA WATER PUMP

Item Part number Description
1 8027300 SEA WATER PUMP ASSY JABSCO
2 8027302 SUPPORT
3 500378759 FLAT ENGINE GASKET ASSY
4 8023392 UNIVERSAL JOINT
5 8008922 GASKET
6 17037931 HEXAGON NUT M8X1,25
7 17088474 WASHER Ø6X12 MM
8 17037821 HEXAGON NUT M6X1
9 16727624 STUD M6X16 MM
10 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
11 17084476 CIRCLIP Ø14 MM
12 16729424 STUD M8X1,25X25
