8035M06.01

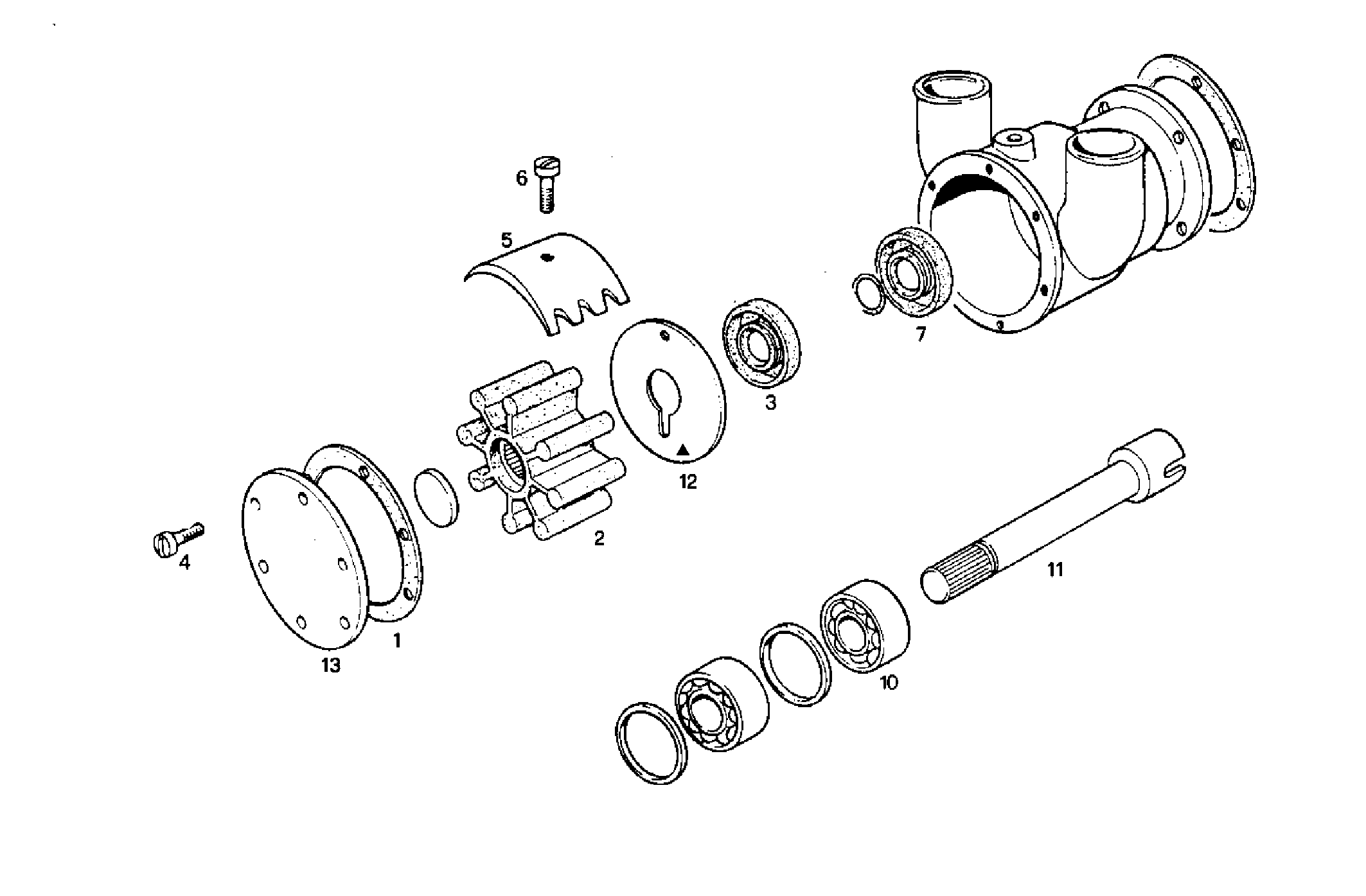

3380.024/02 SEA WATER PUMP - JABSCO
Item | Part number | Description |
---|---|---|
1 | 8108230 | GASKET |
2 | 4913429 | SEA WATER PUMP IMPELL. |
3 | 8093752 | WASHER |
4 | 4914930 | SCREW |
5 | 8108233 | RETAINING CAM |
6 | 4914931 | SCREW |
10 | 8108240 | DRIVE BEARING |
11 | 8093753 | SHAFT |
12 | 8108235 | WASHER |
13 | 4914923 | COVER |
