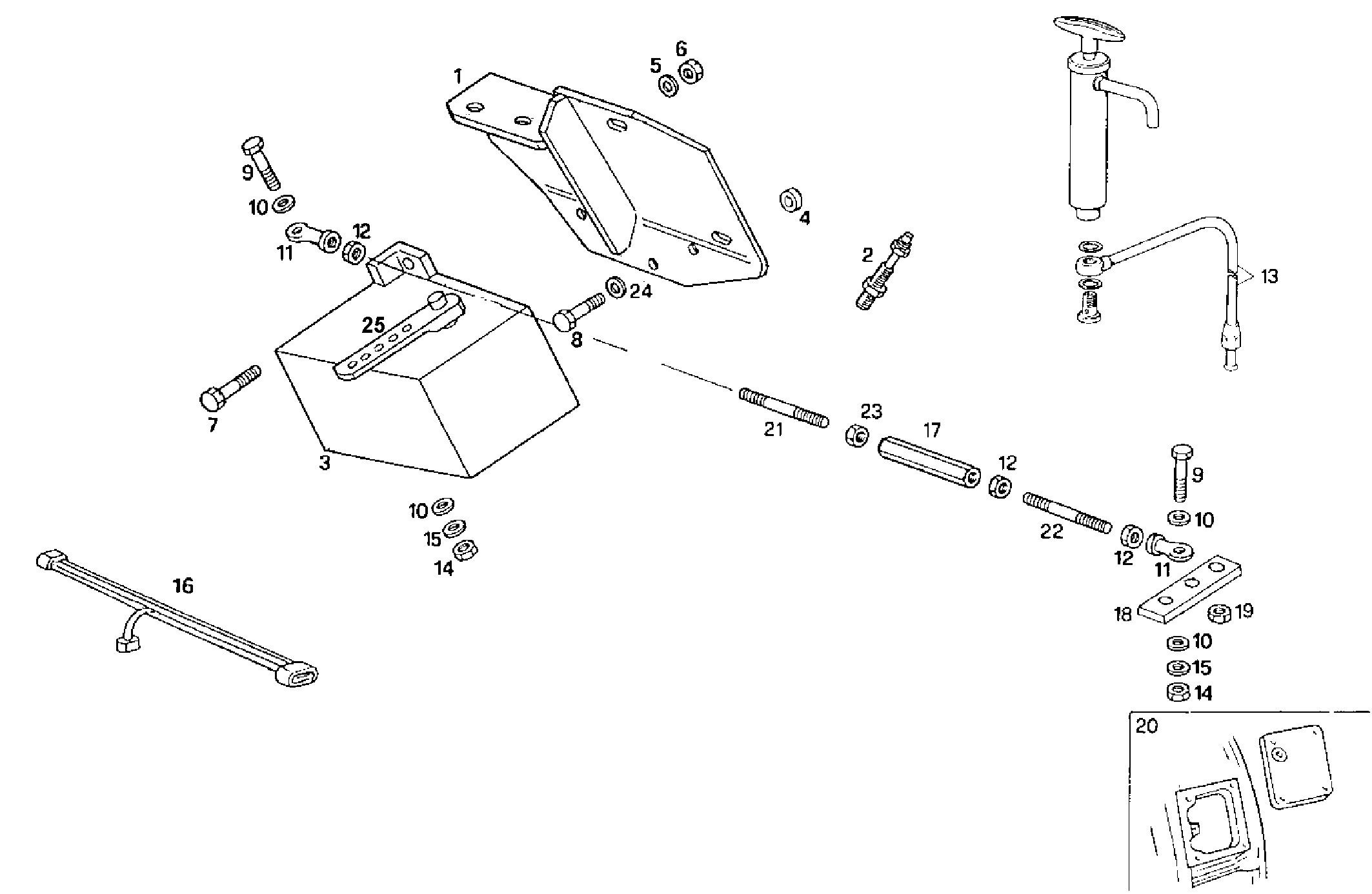

Item |
Part number |
Description |
1 |
8028769 |
RETAINER |
2 |
8018673 |
PICK-UP |
3 |
8018971 |
ENGINE ACTUATOR ASSY |
4 |
8009563 |
SPACING BAR |
5 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
6 |
17037931 |
HEXAGON NUT M8X1,25 |
7 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
8 |
16605924 |
SCREW M8X40 MM |
9 |
16603824 |
SCREW M6X25 |
10 |
17094714 |
WASHER Ø6,4X12 MM |
11 |
4934541 |
BRACE/STRUT |
12 |
17037821 |
HEXAGON NUT M6X1 |
13 |
8028790 |
OIL LINE |
14 |
17152721 |
NUT M6 |
15 |
17088474 |
WASHER Ø6X12 MM |
16 |
8018968 |
ENGINE HARNESS |
17 |
17720114 |
TIE ROD |
18 |
8024920 |
RETAINER |
19 |
8012878 |
SPACING BAR |
20 |
8025809 |
COVER |
21 |
4928016 |
TIE ROD |
22 |
4934395 |
TIE ROD |
23 |
17040321 |
NUT M6 |
24 |
17090474 |
SPRING WASHER Ø10X27 MM SP=2,5 |
25 |
8031536 |
LEVER |
