8035M06.01

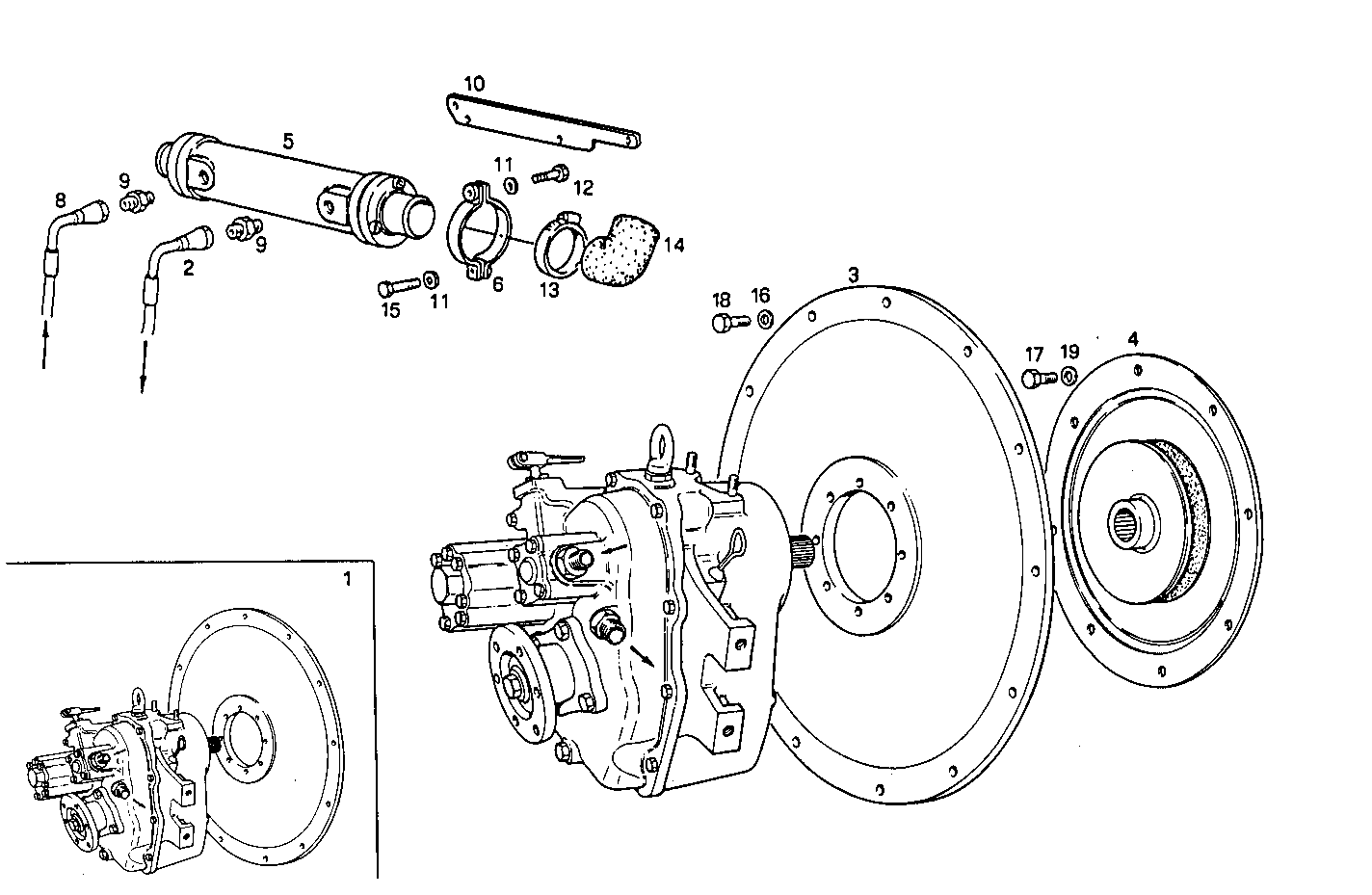

A51270010/01 MARINE GEAR TECHNODRIVE TM 93 A - ratio 2.40:1

Iveco/FPT MARINE GEAR TECHNODRIVE TM 93 A

Item Part number Description
1 8025873 MARINE GEAR 2.40:1
2 8105620 HOSE
3 8012407 COUPLING BELL
4 8005350 FLEXPLATE
5 8016304 OIL/WATER HEAT EXCHANGER ASSY
6 5116798 CLIP ASSY [from 06-93]
8 4935779 HOSE
9 8101073 PIPE SOCKET
10 8016558 RETAINER [from 07-93]
11 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
12 16605734 HEXAGON BOLT M8X30 MM
13 17764793 CLIP Ø32/50 MM
14 8102099 RUBBER SLEEVE
15 16605624 HEXAGON BOLT M8X25 MM (8.8)
16 17090174 SPRING WASHER Ø10X20 MM
17 15970521 HEXAGON BOLT M10X20 MM
18 11306921 SCREW M10X1,25X30
19 10571879 WASHER
