8035M06.01A550

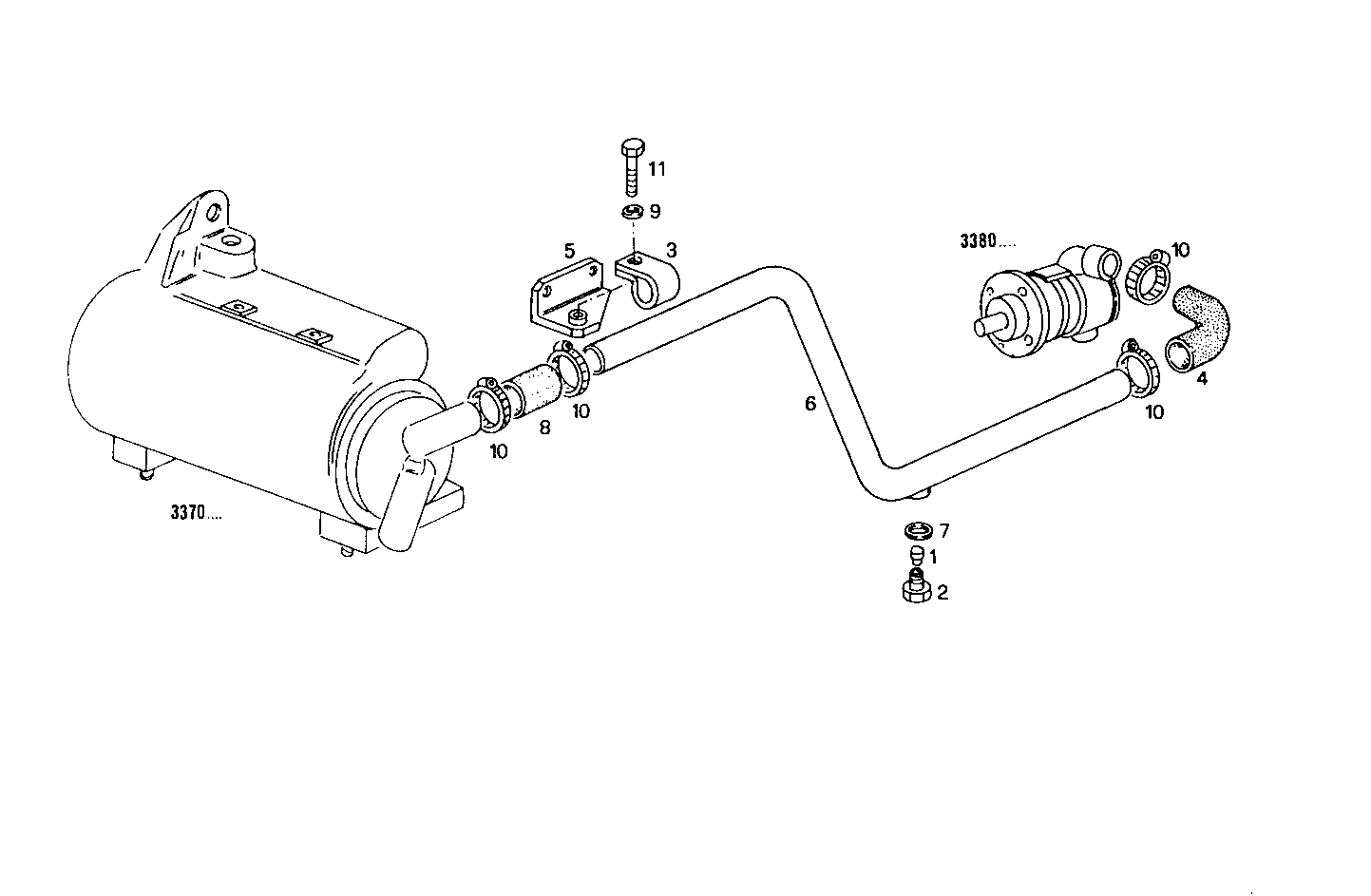

3390.053 SEA WATER LINES
Item | Part number | Description |
---|---|---|
1 | 8105277 | SACRIFICAL ANODE Ø14 MM |
2 | 4917793 | PLUG M18 |
3 | 4936741 | CLIP |
4 | 8100546 | RUBBER SLEEVE |
5 | 8108596 | RETAINER |
6 | 8027970 | WATER PIPE |
7 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
8 | 4927830 | RUBBER SLEEVE |
9 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
10 | 17764693 | CLIP Ø25/40 MM |
11 | 16605524 | HEXAGON BOLT M8X20 MM |
