8035M06.20

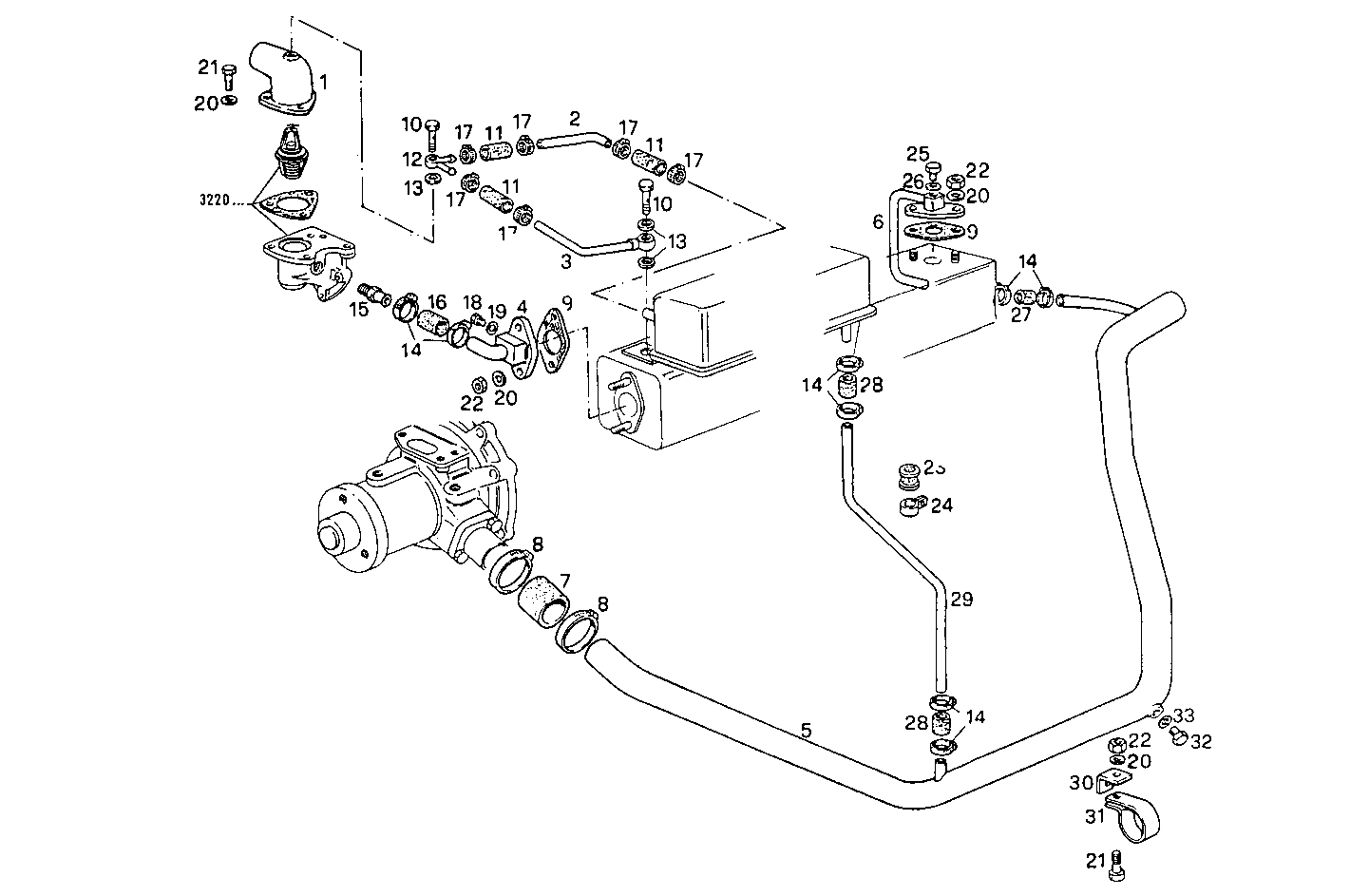

3210.214/02 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8107202 WATER PIPE
2 8107522 WATER PIPE
3 8008866 WATER PIPE
4 8107731 WATER PIPE
5 8021608 WATER PIPE [from 10-95]
6 8107732 WATER PIPE
7 17742887 RUBBER SLEEVE
8 17764793 CLIP Ø32/50 MM
9 8009640 GASKET
10 8009696 SCREW CONNECTOR M12X1,5X25
11 4927825 WATER HOSE
12 8016190 PIPE SOCKET
13 4858607 WASHER Ø12X17 MM SP=1,5 MM
14 17764593 CLIP Ø20/32 MM
15 4760312 THREADED UNION
16 98418717 WATER HOSE Ø18 MM
17 18088392 CLIP Ø16/25 MM
18 16992340 THREADED PLUG M14X1,5
19 4858608 SEAL GASKET dia.14x19,5x1,5
20 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
21 16605624 HEXAGON BOLT M8X25 MM (8.8)
22 17037931 HEXAGON NUT M8X1,25
23 4757122 RUBBER PAD
24 4763804 FASTENING BRACKET
25 16992460 PLUG M16X1.5
26 4858609 WASHER Ø16X22 MM SP=1,5 MM
27 98425606 WATER HOSE
28 17737687 WATER HOSE
29 8107523 WATER PIPE
30 4934319 RETAINER
31 4936741 CLIP
32 16992140 PLUG M10X1
33 4858606 GASKET Ø10X14X1 MM
