8035M06.21

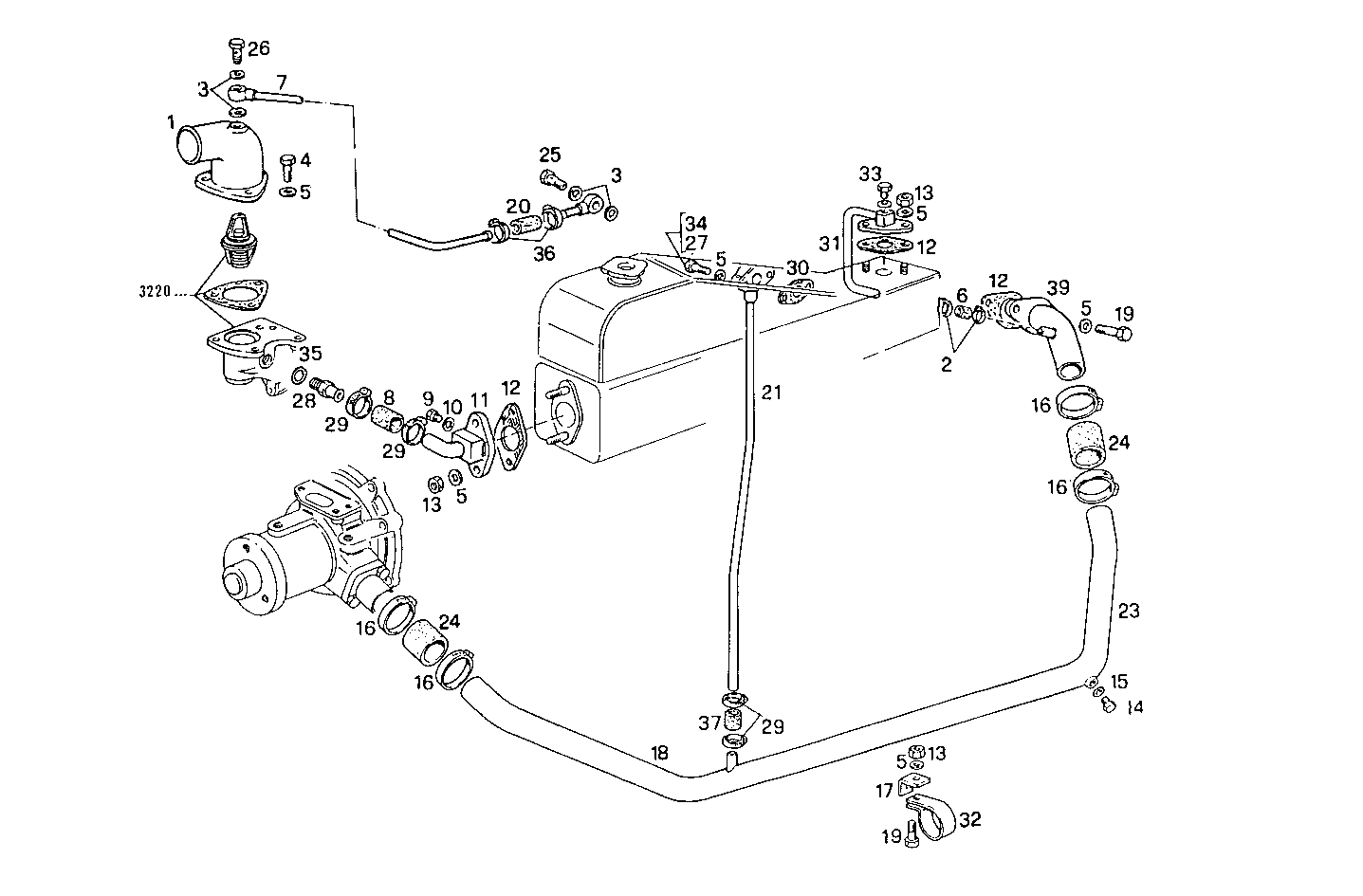

3210.215/02 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8107202 WATER PIPE
2 18088593 CLIP 25x40
3 4858607 WASHER Ø12X17 MM SP=1,5 MM
4 16605734 HEXAGON BOLT M8X30 MM
5 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
6 98425606 WATER HOSE
7 98405514 PIPE SOCKET
8 98418717 WATER HOSE Ø18 MM
9 16992340 THREADED PLUG M14X1,5
10 4858608 SEAL GASKET dia.14x19,5x1,5
11 8107731 WATER PIPE
12 8009640 GASKET
13 17037931 HEXAGON NUT M8X1,25
14 16992140 PLUG M10X1
15 4858606 GASKET Ø10X14X1 MM
16 17764793 CLIP Ø32/50 MM
17 4934319 RETAINER
18 8021608 WATER PIPE [from 10-95]
19 16605624 HEXAGON BOLT M8X25 MM (8.8)
20 4927825 WATER HOSE
21 8029673 WATER PIPE
22 8110256 WATER PIPE
23 8110284 WATER PIPE
24 17742887 RUBBER SLEEVE
25 4864082 BANJO BOLT M12X1,5X25 MM
26 8009696 SCREW CONNECTOR M12X1,5X25
27 16605824 HEXAGON BOLT M8X35 MM
28 4760312 THREADED UNION
29 17764593 CLIP Ø20/32 MM
30 4853970 FLAT ENGINE GASKET
31 8107732 WATER PIPE
32 4936741 CLIP
34 16605524 HEXAGON BOLT M8X20 MM
35 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
36 18088293 CLIP Ø12/20 MM
37 17737687 WATER HOSE
