8035M06.21

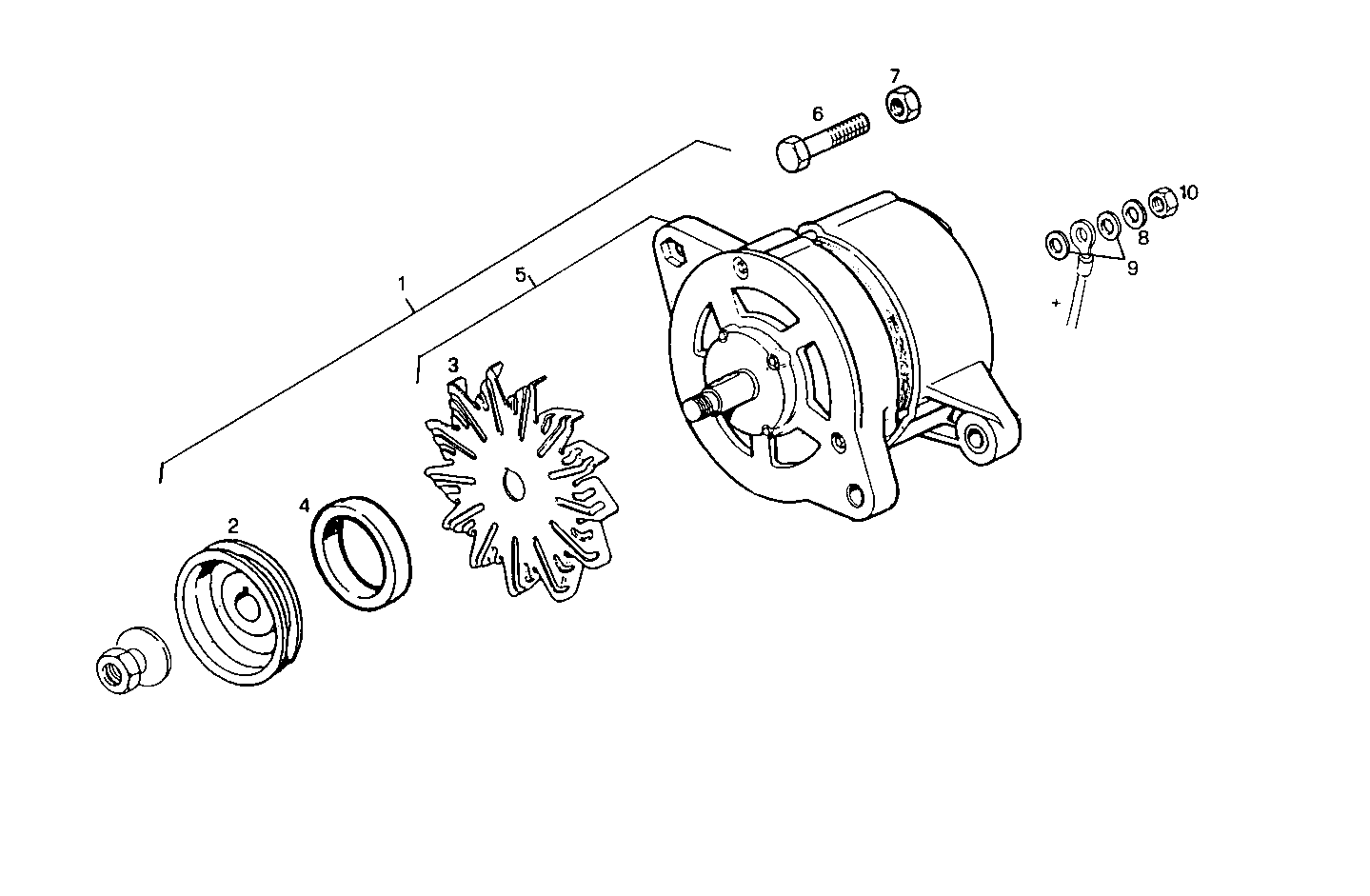

A14110005 SELF-REGULATED ALTERNATOR - 24V 55A - poles system
Item | Part number | Description |
---|---|---|
1 | 8027962 | ALTERNATOR ASSY |
2 | 4808603 | GENERATOR PULLEY |
4 | 98454596 | SPACING BAR BOSCH |
5 | 99461190 | ALTERNATOR ASSY BOSCH [from 05-99] |
6 | 11306921 | SCREW M10X1,25X30 |
7 | 17038221 | HEXAGON NUT M10 |
8 | 17494834 | WASHER Ø8 MM |
9 | 17094914 | WASHER 8x16 |
10 | 17037931 | HEXAGON NUT M8X1,25 |
