8035M06.21

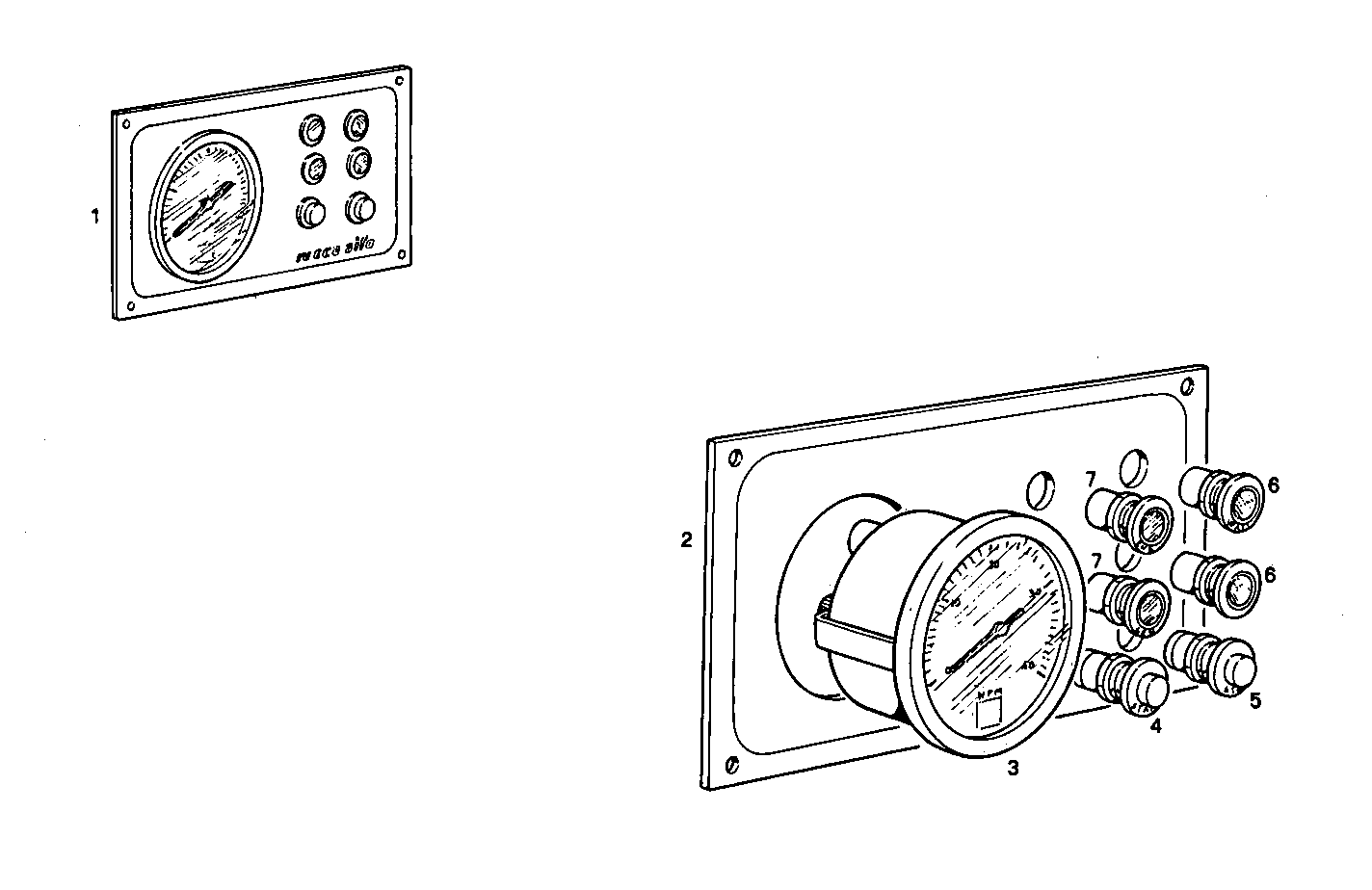

A38700908 DASH PANEL - 12V - VDO
Item | Part number | Description |
---|---|---|
1 | 8025479 | INSTRUMENTS BOARD ASSY FLYNG BRIDGE |
2 | 8108528 | INSTRUMENTS BOARD |
3 | 8025482 | REVOLUTION COUNTER |
4 | 8108529 | PUSH BUTTON STARTER |
5 | 8108530 | PUSH BUTTON STOP |
6 | 8108531 | WARNING LIGHT |
7 | 8108532 | LUMINOUS INDICATOR |
