8035U00.00

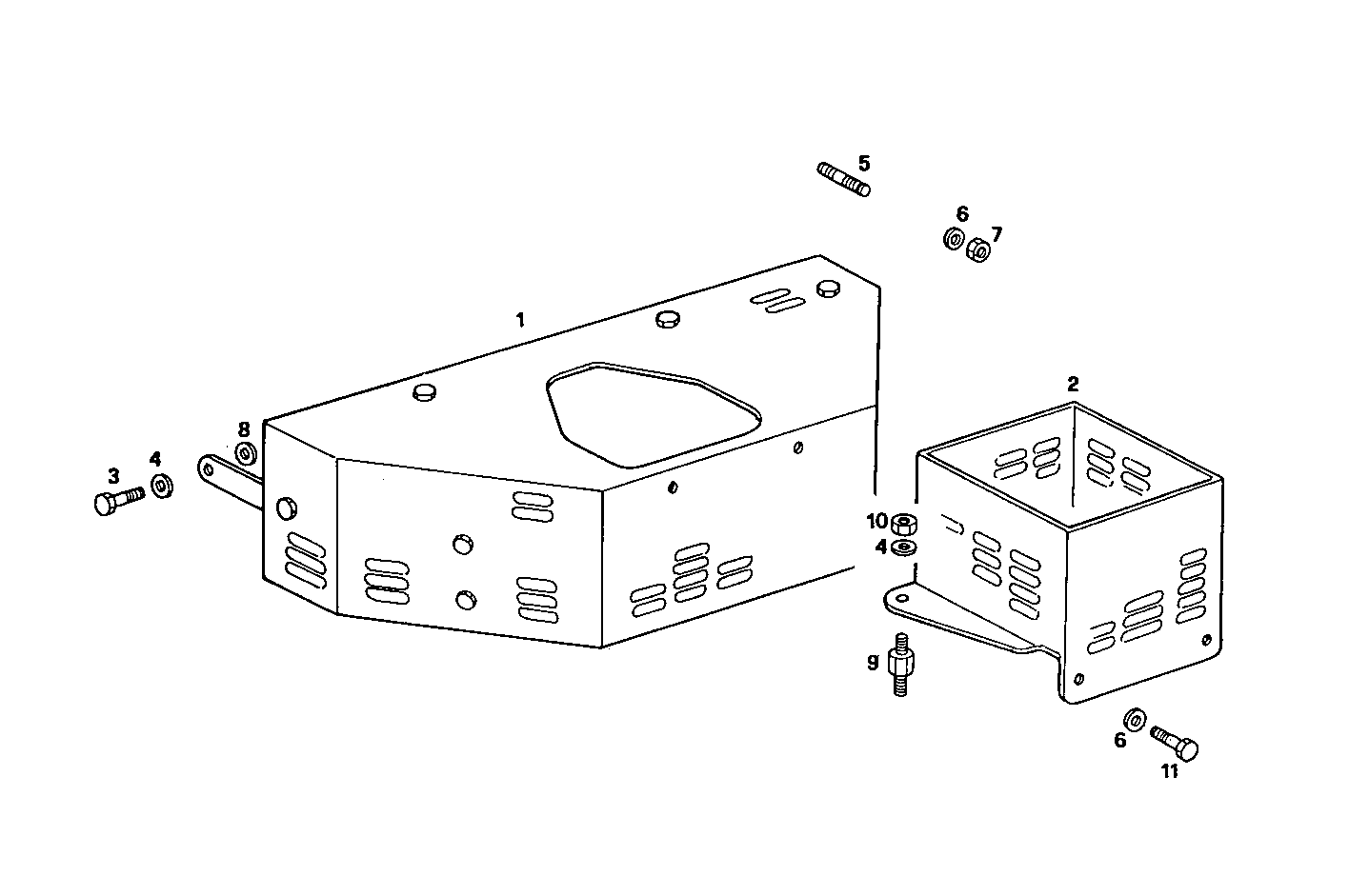

A48040007 GUARD - for exhaust manifold

Iveco/FPT GUARD

Item Part number Description
1 8020061 PROTECTION
2 8020026 PROTECTION
3 15970521 HEXAGON BOLT M10X20 MM
4 17090174 SPRING WASHER Ø10X20 MM
5 16746524 STUD M8X16X16
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 17037931 HEXAGON NUT M8X1,25
8 16665604 WASHER Ø10X20 MM
9 4936298 STUD
10 17038221 HEXAGON NUT M10
11 16605424 SCREW M8X16 MM (8.8)
