8035U00.01A800

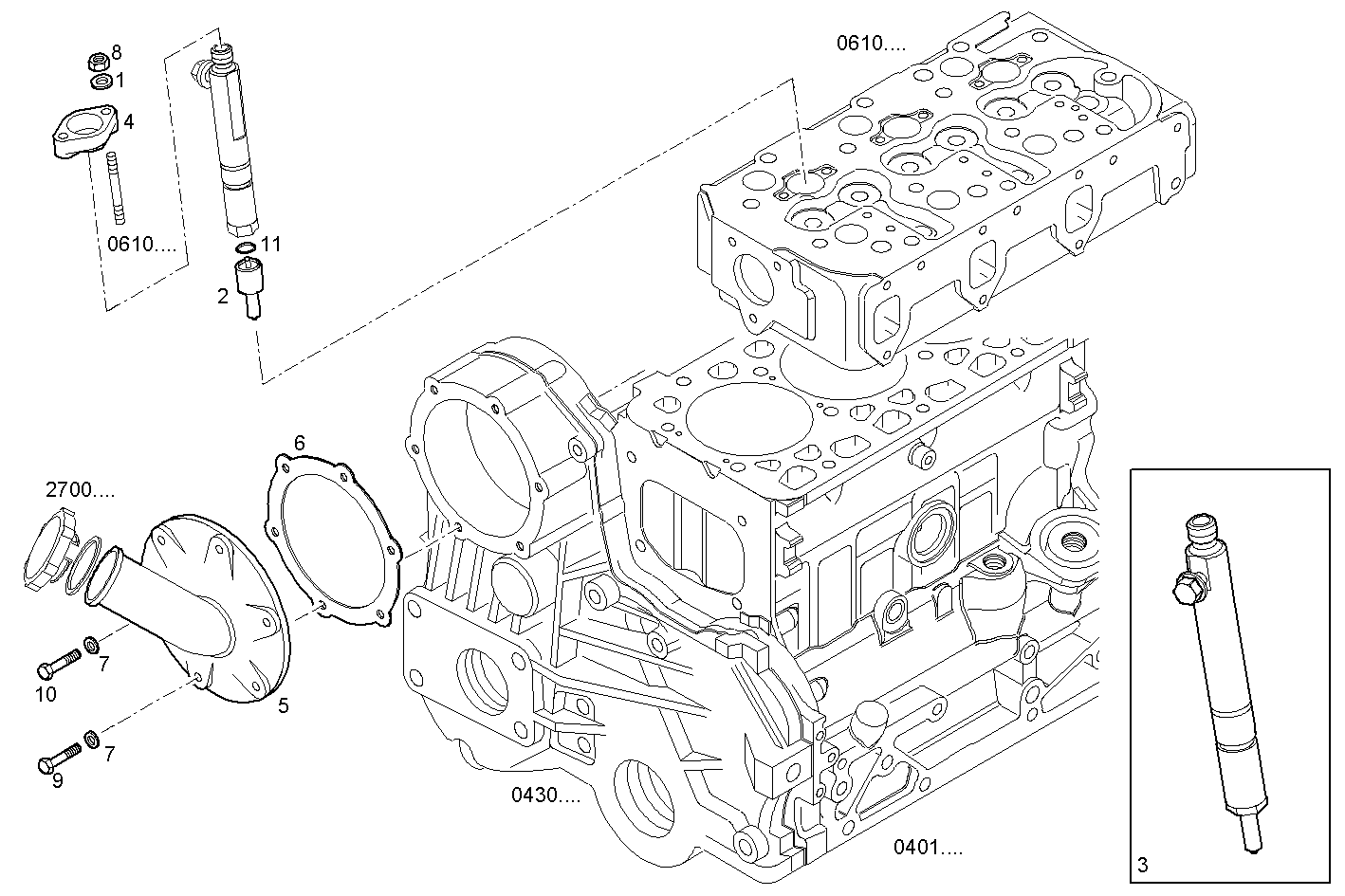

1400.076/01 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 771326 | WASHER Ø11,5 MM |
| 2 | 99469341 | FUEL NOZZLE BOSCH |
| 3 | 500307714 | NOZZLE ASSY BOSCH |
| 4 | 4780612 | FASTENING BRACKET |
| 5 | 4782886 | COVER |
| 6 | 98400781 | FLAT ENGINE GASKET |
| 7 | 17094914 | WASHER 8x16 |
| 8 | 17037921 | HEXAGON NUT M8X1,25 |
| 9 | 16606324 | HEXAGON BOLT M8X60 MM |
| 10 | 16605625 | HEXAGON BOLT M8X25 |
| 11 | 17278589 | O-RING Ø18,77 MM SP=1,78 MM |
