8035U00.01A801

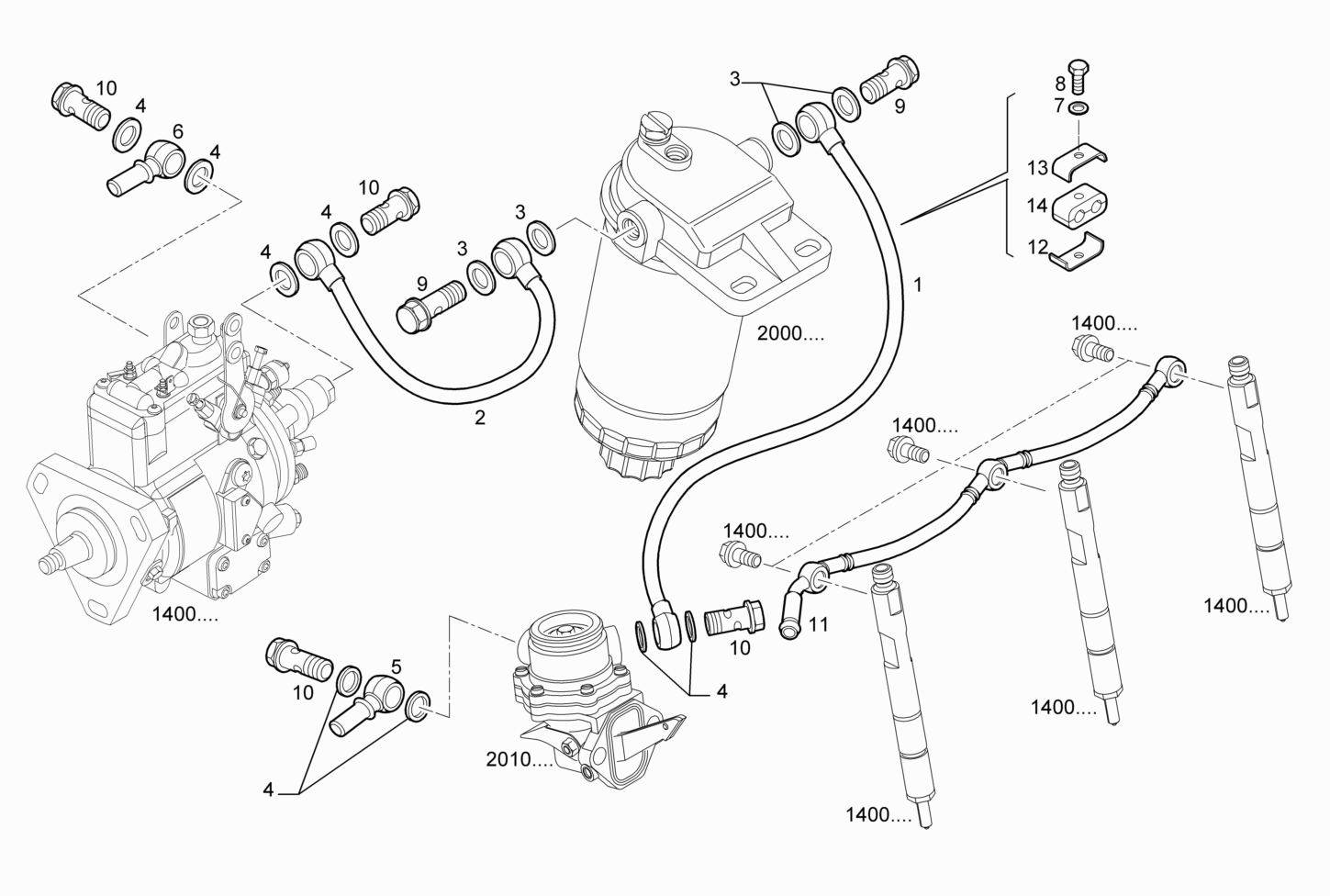

2030.061 FUEL LINES
Item | Part number | Description |
---|---|---|
1 | 500339910 | FUEL LINE |
2 | 500339907 | FUEL LINE |
3 | 98474308 | SEAL GASKET Ø14X22 MM |
4 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
5 | 98417520 | PIPE SOCKET |
6 | 98416591 | SWIVEL COUPLING |
7 | 17494634 | SPRING WASHER Ø5,1X9,2 MM |
8 | 16602324 | HEXAGON BOLT M5X25 MM |
9 | 504266555 | BANJO BOLT M14X1,5X30 MM |
10 | 504081281 | SCREW CONNECTOR M12X1,5 |
11 | 4788075 | FUEL LINE |
12 | 4659219 | PLATE |
13 | 4659218 | CLIP |
14 | 4659217 | DOWEL |
