8035U06.05A800

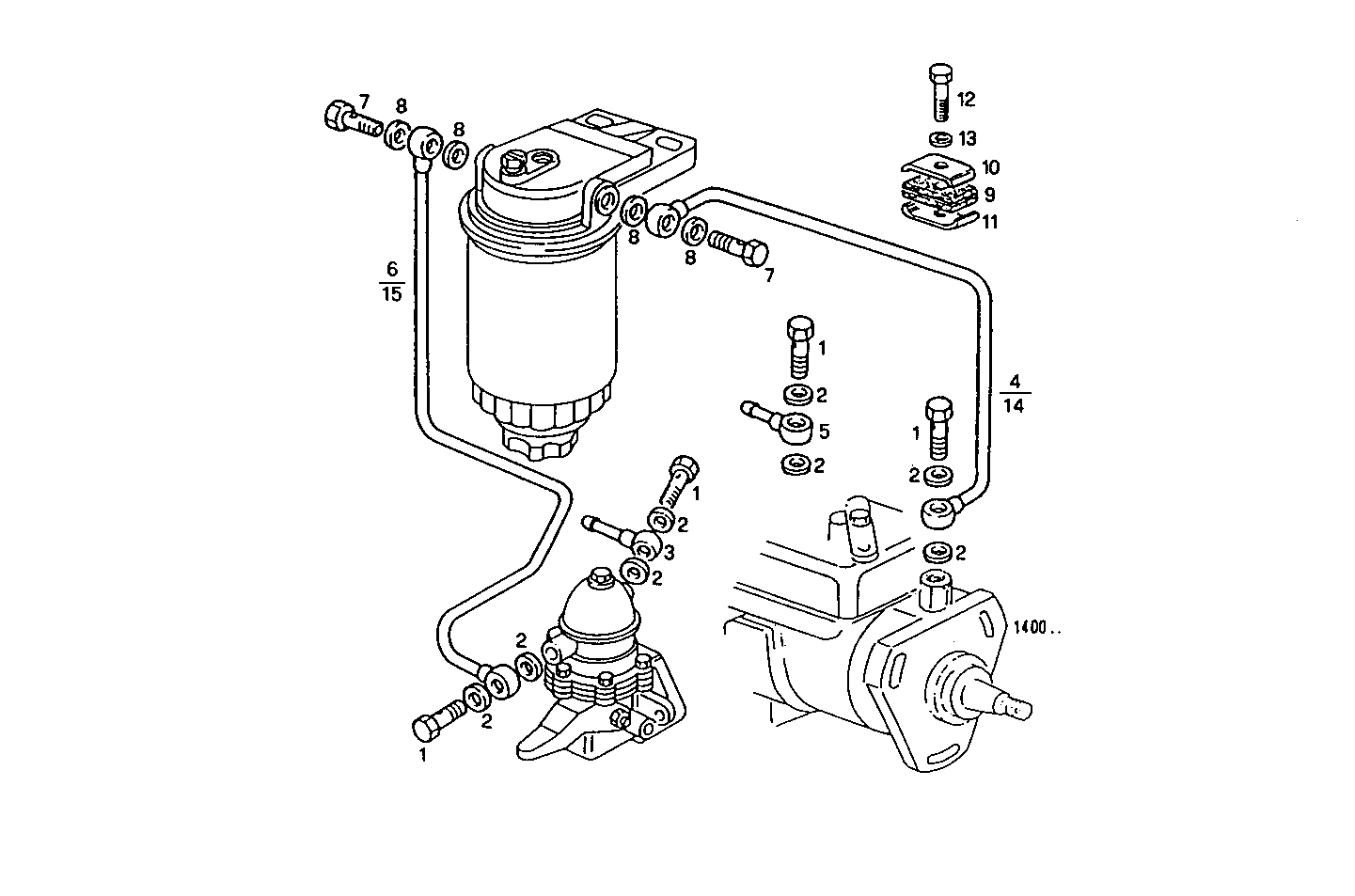

2030.172 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 2 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 3 | 98417520 | PIPE SOCKET |
| 4 | 8029583 | FUEL LINE [from 10-99] |
| 5 | 98416591 | SWIVEL COUPLING |
| 6 | 8029273 | FUEL LINE [from 10-99] |
| 7 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 8 | 98474308 | SEAL GASKET Ø14X22 MM |
| 9 | 4659217 | DOWEL |
| 10 | 4659218 | CLIP |
| 11 | 4659219 | PLATE |
| 12 | 16602324 | HEXAGON BOLT M5X25 MM |
| 13 | 17798474 | SPRING WASHER Ø12 MM |
| 14 | 8029004 | FUEL LINE [up to 10-99] |
| 15 | 8029003 | FUEL LINE [up to 10-99] |
