8035U06.05A800

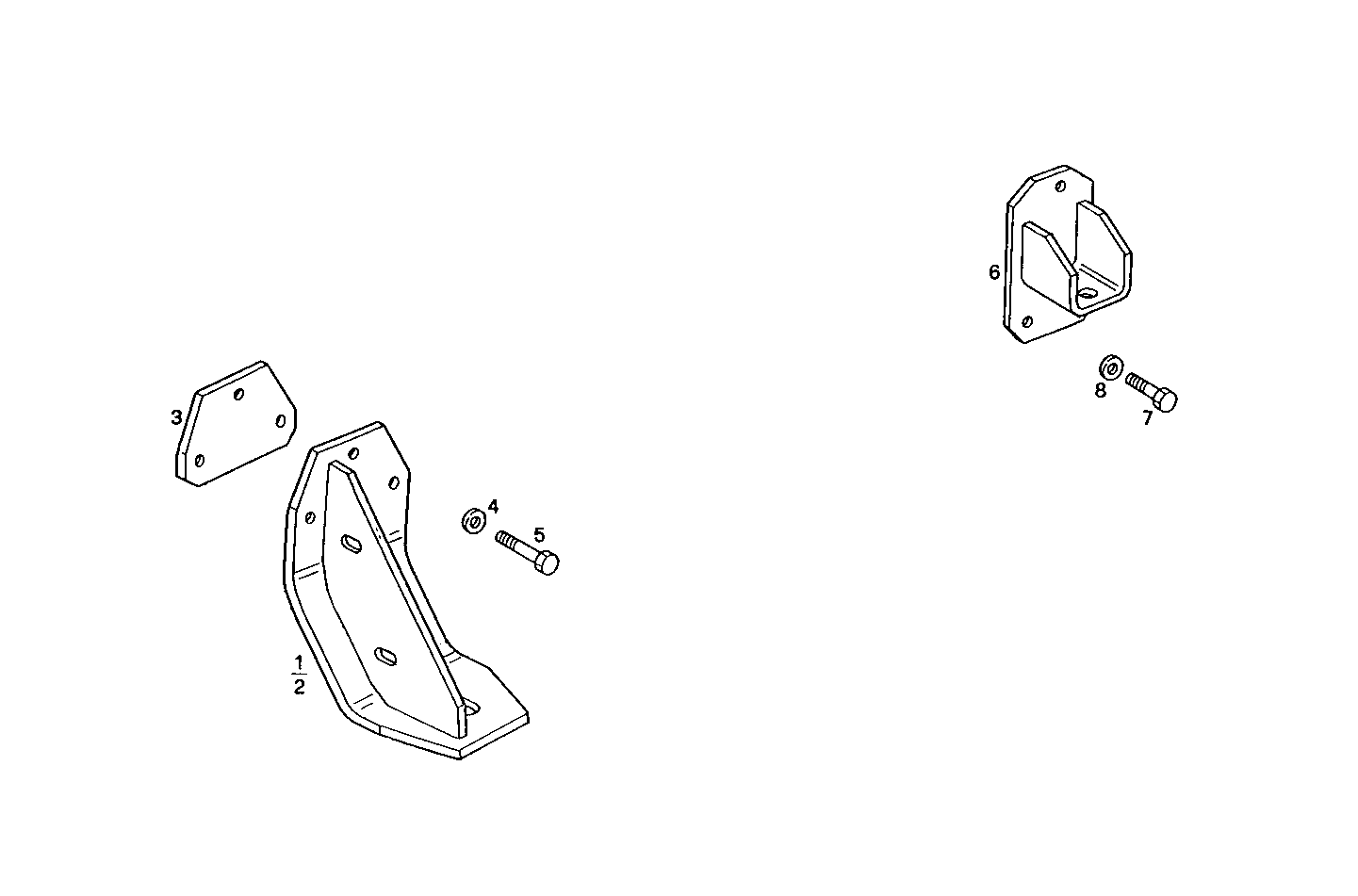

A04000042 RIGID MOUNTING - with radiator
| Item | Part number | Description |
|---|---|---|
| 1 | 8030241 | SUPPORT RIGHT |
| 2 | 8030242 | SUPPORT LEFT |
| 3 | 4919820 | SPACING BAR |
| 4 | 17091074 | WASHER Ø12X24X2,8 MM |
| 5 | 16609924 | HEXAGON BOLT M12X30 MM (8.8) |
| 6 | 4928444 | ENGINE SUSPENSION REAR |
| 7 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 8 | 17090174 | SPRING WASHER Ø10X20 MM |
