8040SC25.00

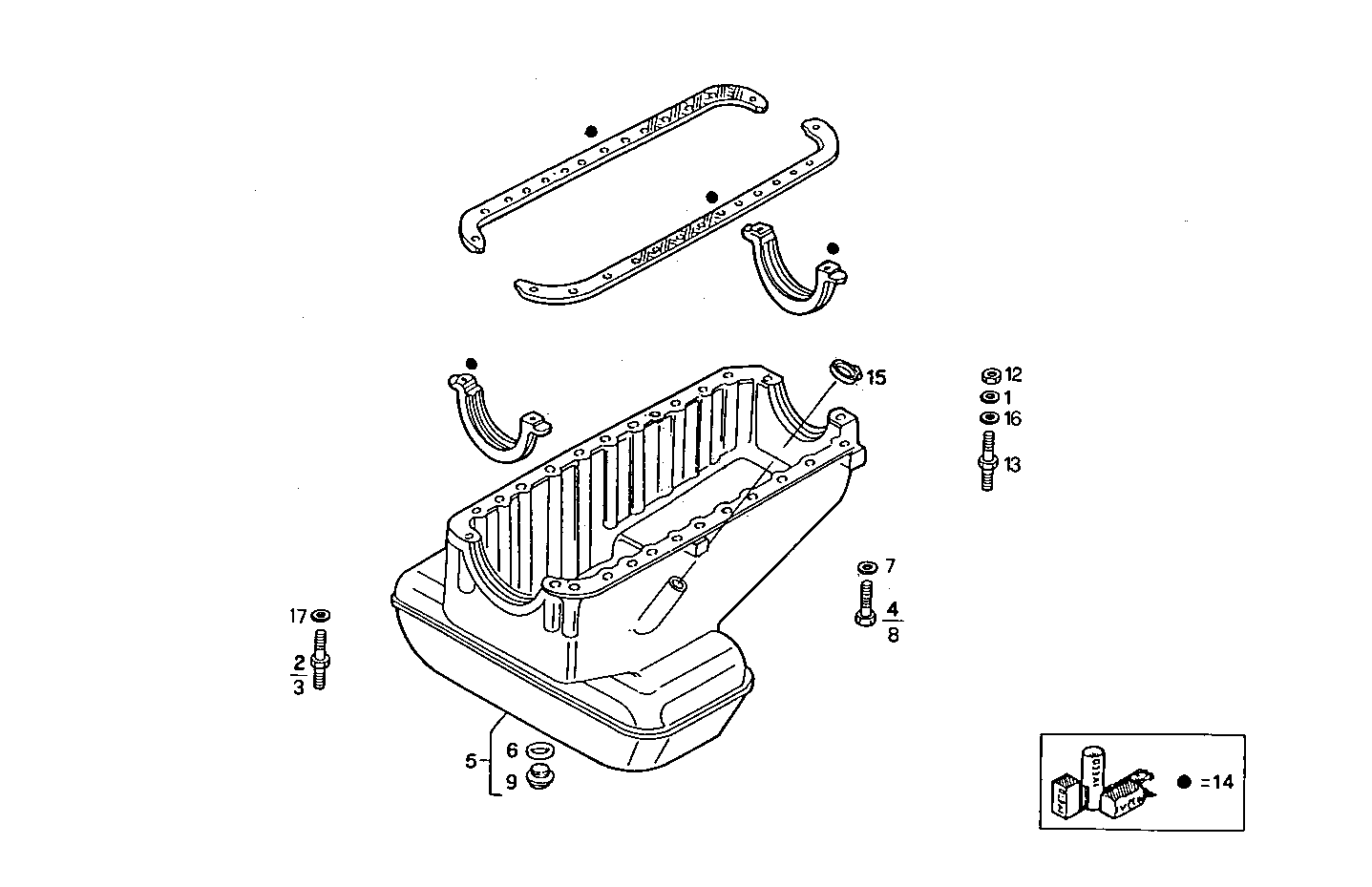

0420.114 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 10516679 | WASHER Ø8X14,8X2 MM |
| 2 | 98457771 | STUD |
| 3 | 98457750 | STUD M10X1,25 - M8X86,5 MM |
| 4 | 10923024 | HEXAGON BOLT M10X1,25X20 MM |
| 5 | 4848307 | OIL SUMP ASSY |
| 6 | 98445103 | O-RING |
| 7 | 17095014 | WASHER Ø10X18 MM |
| 8 | 10923224 | SCREW |
| 9 | 4847102 | THREADED PLUG |
| 12 | 17037931 | HEXAGON NUT M8X1,25 |
| 13 | 98474195 | STUD M10X1,25 - M8X37,5 MM |
| 14 | 1907812 | KIT-OILSUMP GASKET |
| 15 | 17764792 | HOSE CLIP Ø32-50 MM |
| 16 | 17094914 | WASHER 8x16 |
| 17 | 98488128 | WASHER Ø9 MM [up to ...] |
