8040SC25.00

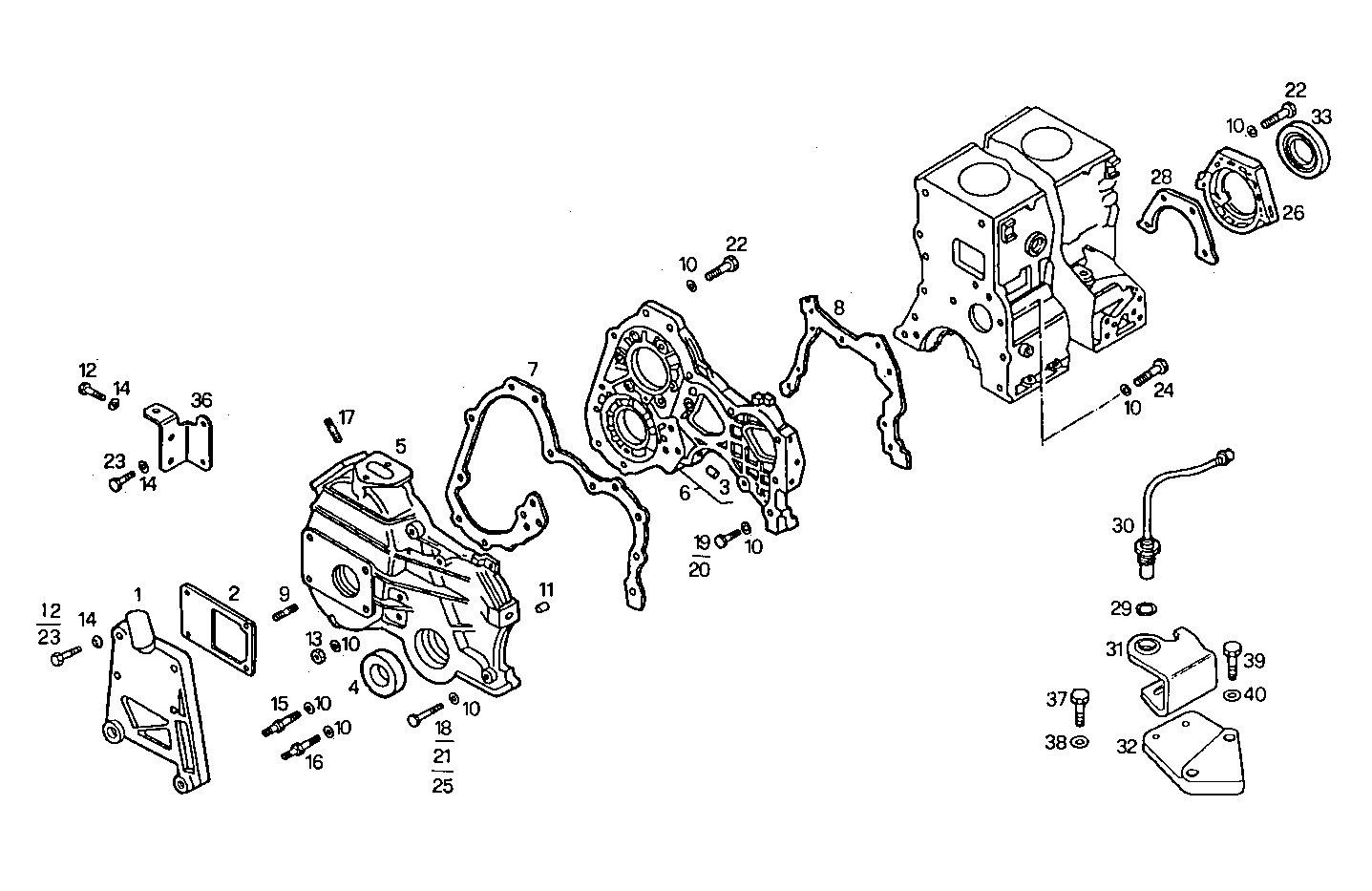

0430.133 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 98482458 COVER
2 98486662 FLAT ENGINE GASKET
3 4605220 OIL NOZZLE
4 98488393 SHAFT SEAL CORCOS
5 4848237 FRONT C.CASE COVER ASSY
6 4846463 TIMINGGEAR HOUSIN ASSY
7 98424045 FLAT ENGINE GASKET
8 98424046 FLAT ENGINE GASKET
9 16746824 STUD M8X30 MM (8.8)
10 17094914 WASHER 8x16
11 17275410 DOWEL PIN Ø8 MM
12 16603824 SCREW M6X25
13 17037931 HEXAGON NUT M8X1,25
14 17088574 WASHER Ø6X12 MM
15 4848314 HEXAGON BOLT L=110 MM
16 4848315 HEXAGON BOLT L=79 MM
17 16729324 STUD M8X12X20 MM
18 16044924 SCREW M8X1,25X85 MM
19 16605734 HEXAGON BOLT M8X30 MM
20 16043524 SCREW M8X22 MM
21 16606124 HEXAGON BOLT M8X50 MM
22 16605824 HEXAGON BOLT M8X35 MM
23 16603934 HEXAGON BOLT M6X30 MM
24 16606524 HEXAGON BOLT M8X70 MM
25 16606224 HEXAGON BOLT M8X55 MM
26 98489586 REAR C.CASE COVER
28 4849994 FLAT ENGINE GASKET
29 4860432 RING
30 4861291 TRANSMITTER
31 4843857 SUPPORT
32 4854020 SUPPORT
33 98488395 SHAFT SEAL CORCOS
36 98490347 RETAINER
37 11306921 SCREW M10X1,25X30
38 17095104 WASHER Ø10X21X2 MM
39 16603624 HEXAGON BOLT M6X16 MM (8.8)
40 17088474 WASHER Ø6X12 MM
