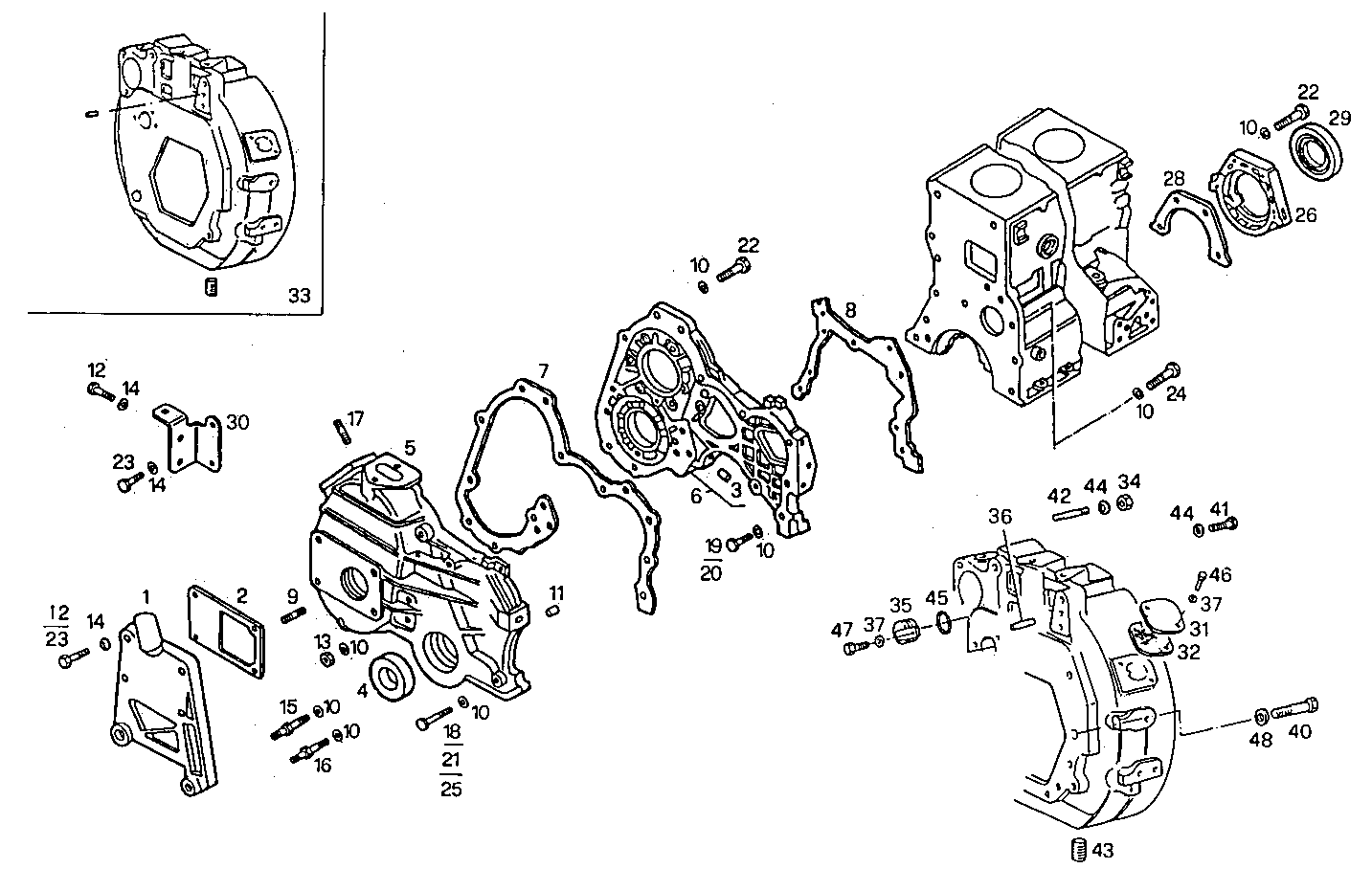

| Item |
Part number |
Description |
|
1 |
8023268 |
COVER |
|
2 |
98494472 |
FLAT ENGINE GASKET |
|
3 |
4605220 |
OIL NOZZLE |
|
4 |
98488393 |
SHAFT SEAL CORCOS |
|
5 |
8023269 |
COVER |
|
6 |
4846463 |
TIMINGGEAR HOUSIN ASSY |
|
7 |
98424045 |
FLAT ENGINE GASKET |
|
8 |
98424046 |
FLAT ENGINE GASKET |
|
9 |
16746824 |
STUD M8X30 MM (8.8) |
|
10 |
17094914 |
WASHER 8x16 |
|
11 |
17275410 |
DOWEL PIN Ø8 MM |
|
12 |
16603824 |
SCREW M6X25 |
|
13 |
17037931 |
HEXAGON NUT M8X1,25 |
|
14 |
17088574 |
WASHER Ø6X12 MM |
|
15 |
4848314 |
HEXAGON BOLT L=110 MM |
|
16 |
4848315 |
HEXAGON BOLT L=79 MM |
|
17 |
16729324 |
STUD M8X12X20 MM |
|
18 |
16044924 |
SCREW M8X1,25X85 MM |
|
19 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
20 |
16043524 |
SCREW M8X22 MM |
|
21 |
16606124 |
HEXAGON BOLT M8X50 MM |
|
22 |
16605824 |
HEXAGON BOLT M8X35 MM |
|
23 |
16603934 |
HEXAGON BOLT M6X30 MM |
|
24 |
16606524 |
HEXAGON BOLT M8X70 MM |
|
25 |
16606224 |
HEXAGON BOLT M8X55 MM |
|
26 |
98489586 |
REAR C.CASE COVER |
|
28 |
4849994 |
FLAT ENGINE GASKET |
|
29 |
98488395 |
SHAFT SEAL CORCOS |
|
30 |
98490347 |
RETAINER |
|
31 |
98417985 |
COVER |
|
32 |
98417986 |
FLAT ENGINE GASKET |
|
33 |
4806862 |
FLYWHEEL HOUSING ASSY |
|
34 |
17038721 |
NUT M14X2 [from ...] |
|
35 |
4718740 |
PLUG |
|
36 |
17275510 |
DOWEL PIN Ø10 MM |
|
37 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
38 |
11198379 |
SPRING WASHER Ø10X20 MM SP=2,6 |
|
39 |
11200171 |
SPRING WASHER Ø15 MM |
|
40 |
11306921 |
SCREW M10X1,25X30 |
|
41 |
11408321 |
HEXAGON BOLT M14X1,5X35 MM [up to ...] |
|
42 |
16735724 |
STUD M14X20X55 [from ...] |
|
43 |
16998011 |
PLUG M35X1,5 |
|
44 |
17091974 |
SPRING WASHER Ø14X32 MM SP=3,4 MM |
|
45 |
17289281 |
O-RING Ø34,5 MM SP=3,53 MM |
|
46 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
47 |
16605424 |
SCREW M8X16 MM (8.8) |
|
48 |
17090174 |
SPRING WASHER Ø10X20 MM |
