8040SC25.00A007

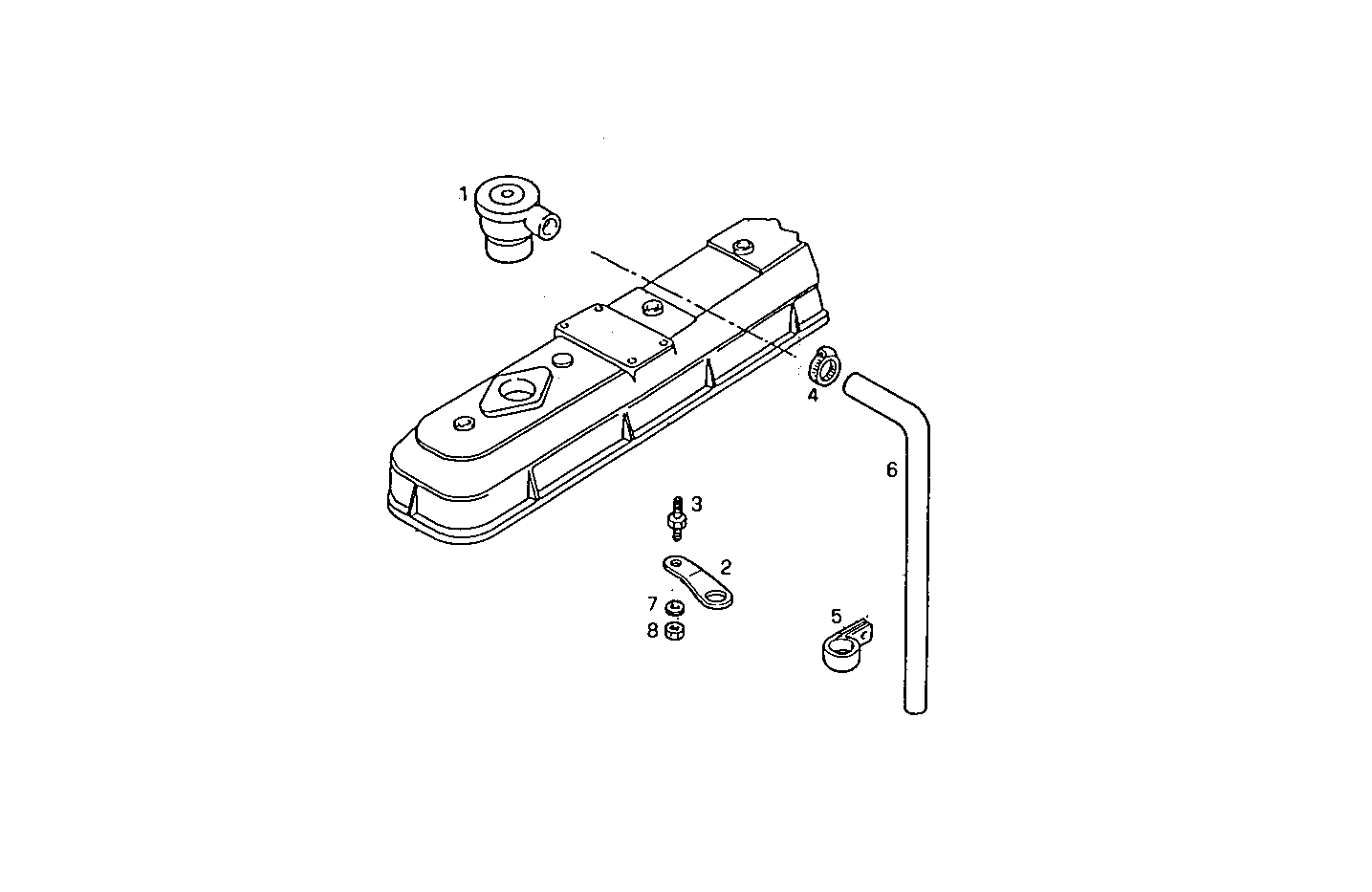

0450.109 ENGINE BREATHERS
| Item | Part number | Description |
|---|---|---|
| 1 | 4812047 | BREATHER |
| 2 | 4735644 | RETAINER |
| 3 | 98424203 | HEXAGON BOLT M10X1,25X42 |
| 4 | 17764691 | CLIP Ø25/40 MM |
| 5 | 10450890 | PIPE CLIP Ø24 MM |
| 6 | 98446778 | RUBBER SLEEVE |
| 7 | 17089471 | SPRING WASHER Ø16X8 MM SP=1,4 MM |
| 8 | 17037931 | HEXAGON NUT M8X1,25 |
