8040SC25.00A007

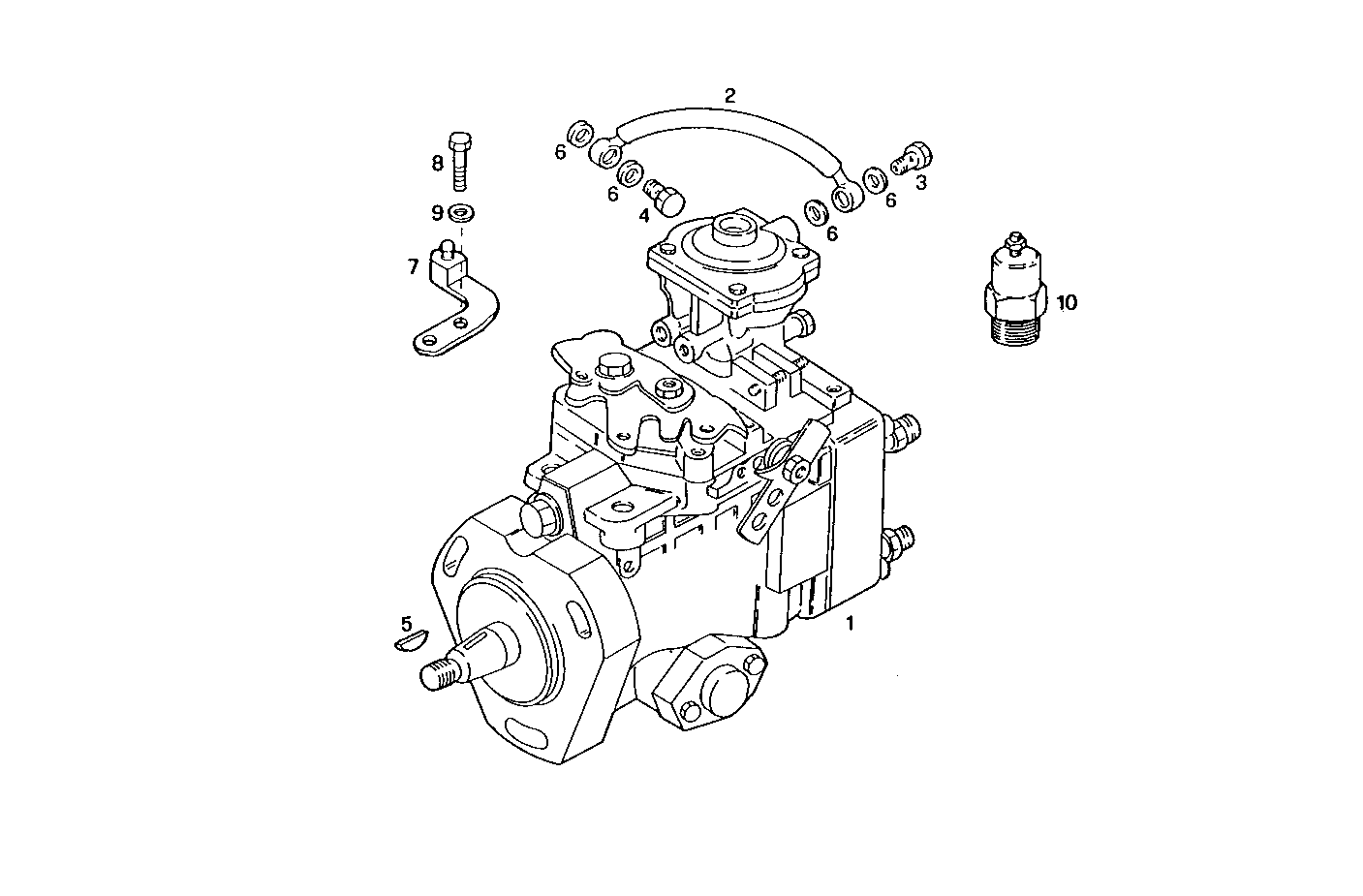

1400.198 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 4848930 | DISTRIB.INJ.PUMP ASSY |
| 2 | 4848476 | FUEL LINE |
| 3 | 4753761 | SCREW CONNECTOR |
| 4 | 4833907 | SCREW CONNECTOR |
| 5 | 10205820 | KEY 4X6,5 MM |
| 6 | 10262760 | SEAL GASKET Ø8,2 MM |
| 7 | 98428267 | LEVER |
| 8 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
| 9 | 17088474 | WASHER Ø6X12 MM |
| 10 | 8100105 | ELECTROVALVE 24V |
