8040SC25.00A007

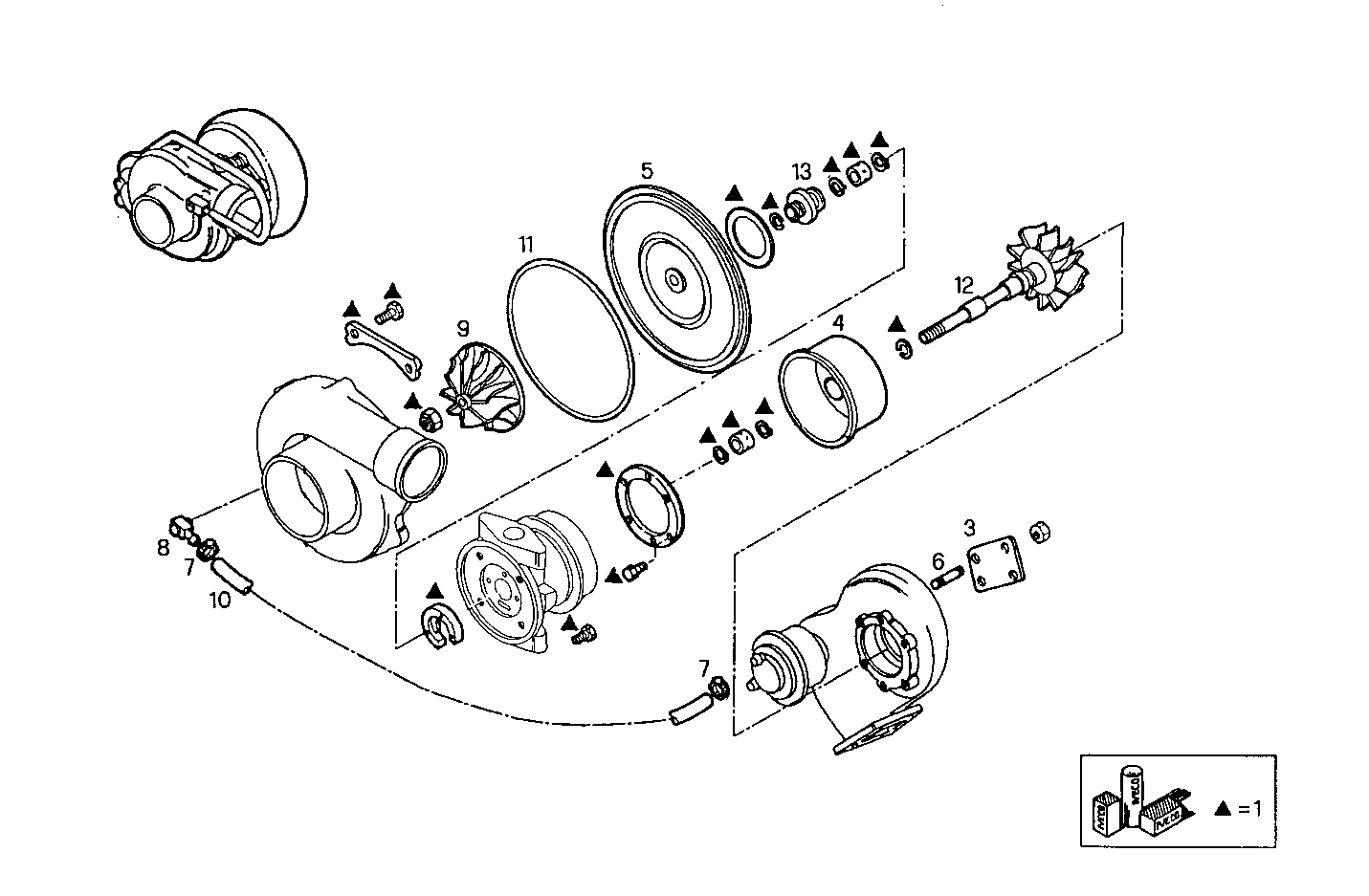

2430.021 TURBOCHARGER - components

Iveco/FPT TURBOCHARGER

Item Part number Description
1 8124722 KIT-TURBOCHARGER
3 8198409 GASKET
4 8198412 COVER
5 8198413 PLATE
6 8198414 STUD
7 93160135 CLIP
8 93160133 HOSE NIPPLE
9 8198581 TURBINE WHEEL M10X30 MM
10 93160132 HOSE
11 93158157 WASHER
12 93158158 TURBINE WHEEL
13 93158159 THREADED UNION
