8040SRC20.00

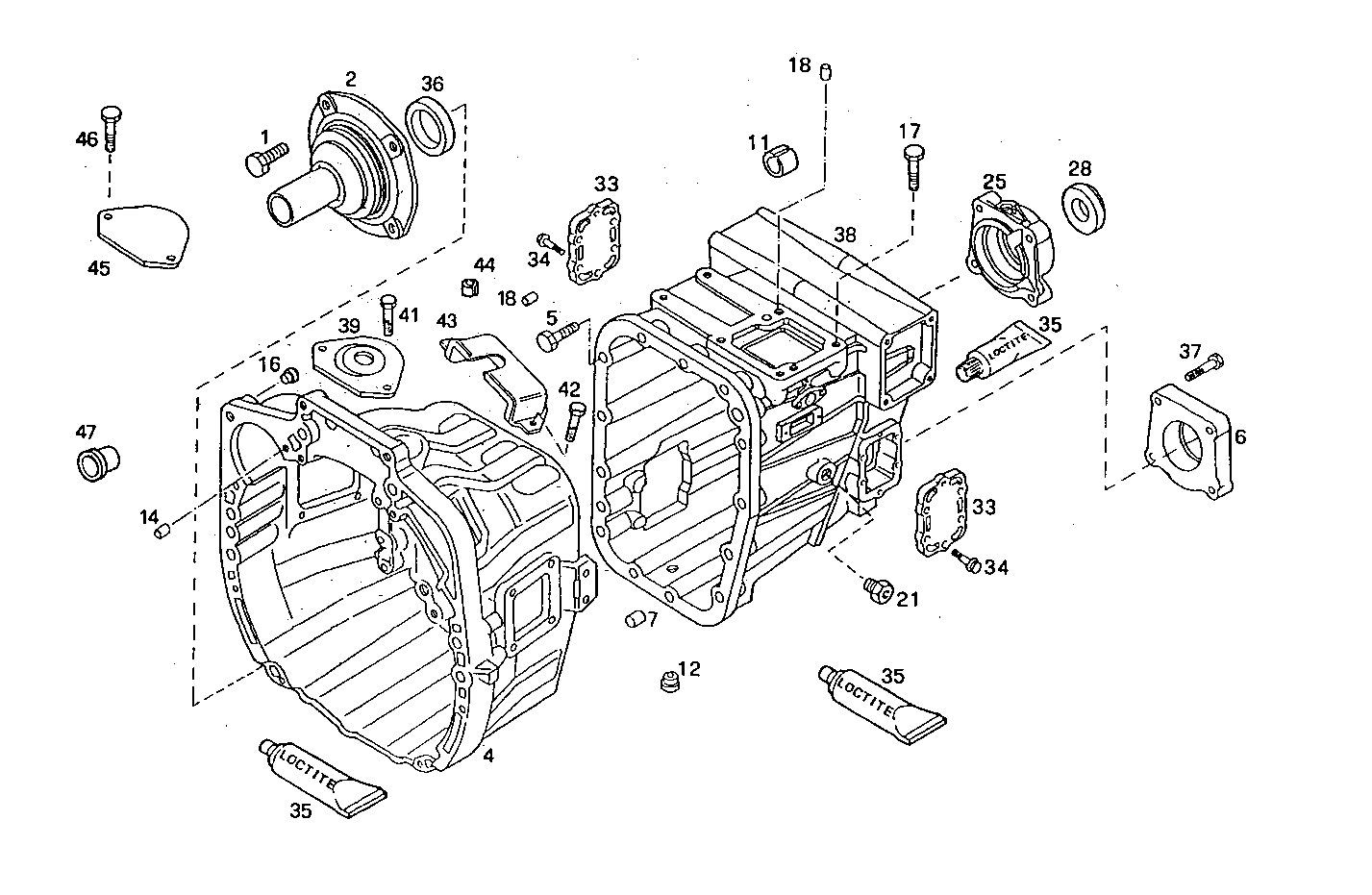

A27530002/03 TRANSMISSION - 2845.6

Iveco/FPT TRANSMISSION

Item Part number Description
1 16587124 HEXAGON BOLT M10X25 MM
2 8859335 FRONT G.BOX COVER
4 8868766 CLUTCH HOUSING ASSY
5 16592724 HEXAGON BOLT M10X65 MM
6 8858971 COVER
7 8860543 DOWEL PIN
11 8863152 BUSH
12 16998511 THREADED PLUG M22X1,5
14 8867613 DOWEL PIN
16 4647524 DOWEL PIN
17 16587424 HEXAGON BOLT M10X40 MM
18 8868506 DOWEL PIN
21 16996511 THREADED PLUG M22X1,5
25 8859216 REAR G.BOX COVER
28 40100503 SHAFT SEAL Ø65X85 MM SP=13 MM
33 8859471 SIDE G.BOX COVER
34 16587224 HEXAGON BOLT M10X30 MM
35 1905685 ADHESIVE/STICKER LOCTITE
36 40101843 SHAFT SEAL Ø48X65 MM SP=10 MM
37 16588024 HEXAGON BOLT M12X30 MM
38 8859031 TRANSMISSION CASE
39 4852908 COVER
41 16585724 HEXAGON BOLT M6X16 MM
42 16586224 HEXAGON BOLT M8X1,25X16 MM
43 500302876 COVER WITH SEAL
44 4852907 INSULATING RING
45 98485047 COVER
