8040SRC21.10

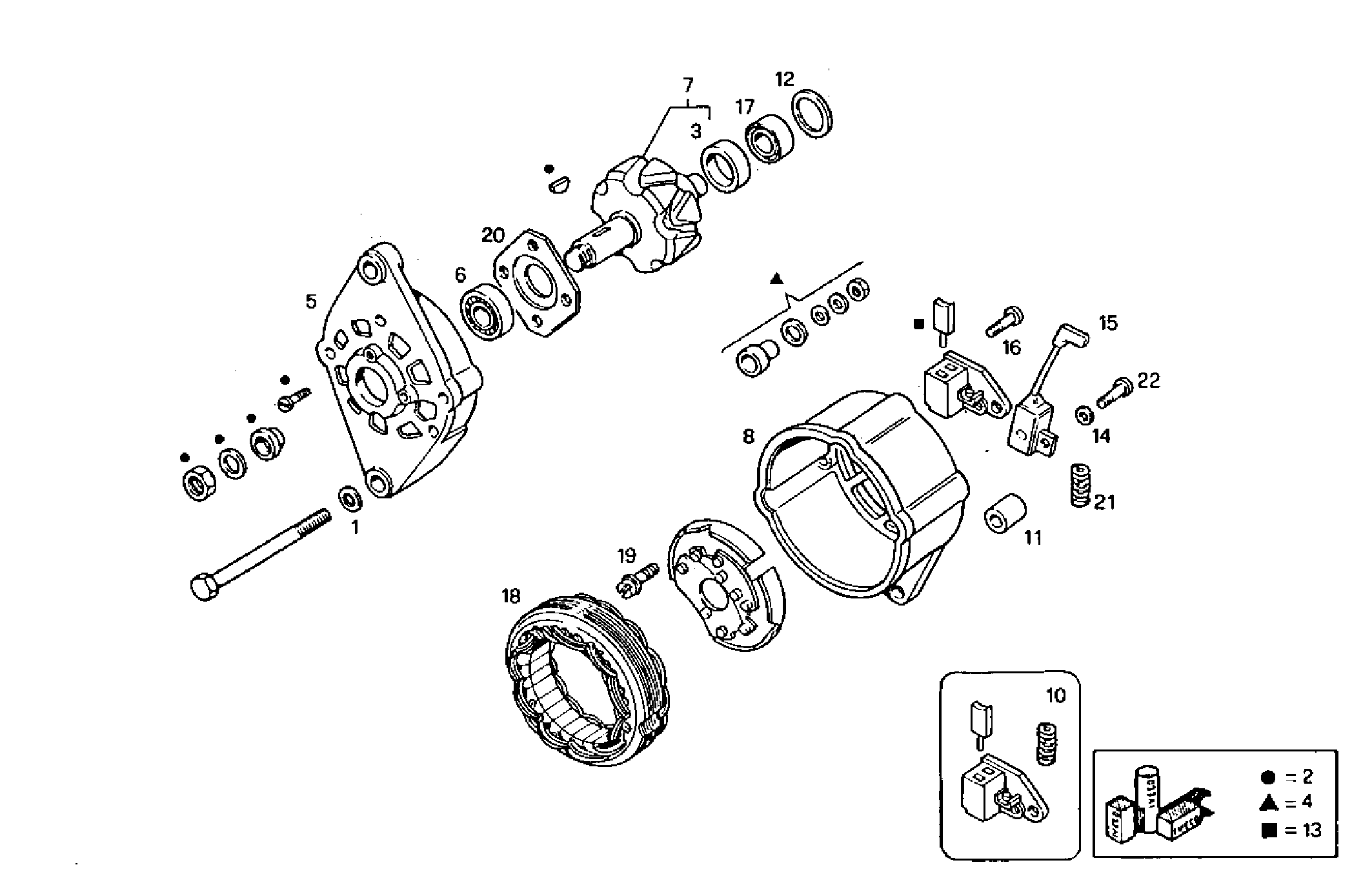

T1403001 ALTERNATOR - (components)

Iveco/FPT ALTERNATOR

Item Part number Description
1 1107544 WASHER
2 1307188 KIT-GENERATOR KIT
3 8121108 RING
4 9939756 KIT-GENERATOR
5 9939754 GENERATOR SUPPORT
6 9939751 ENGINE BEARINGS
7 9940189 GENERATOR ROTOR ASSY
8 9939755 GENERATOR SUPPORT
9 9939757 RECTIFIER BRIDGE
10 9941761 VOLTAGE REGULATOR
11 9939749 BUSH
12 9925693 WASHER
13 9939709 KIT-GENERATOR
14 9960179 WASHER
15 79022480 CONDENSER
16 79075883 SCREW
17 1905052 ENGINE BEARINGS
18 9941287 GENERATOR STATOR
19 79093985 SCREW
20 93155633 PLATE SP=0,5 MM
21 42491524 SPRING
22 93190613 SCREW
