8040SRC21.10A001

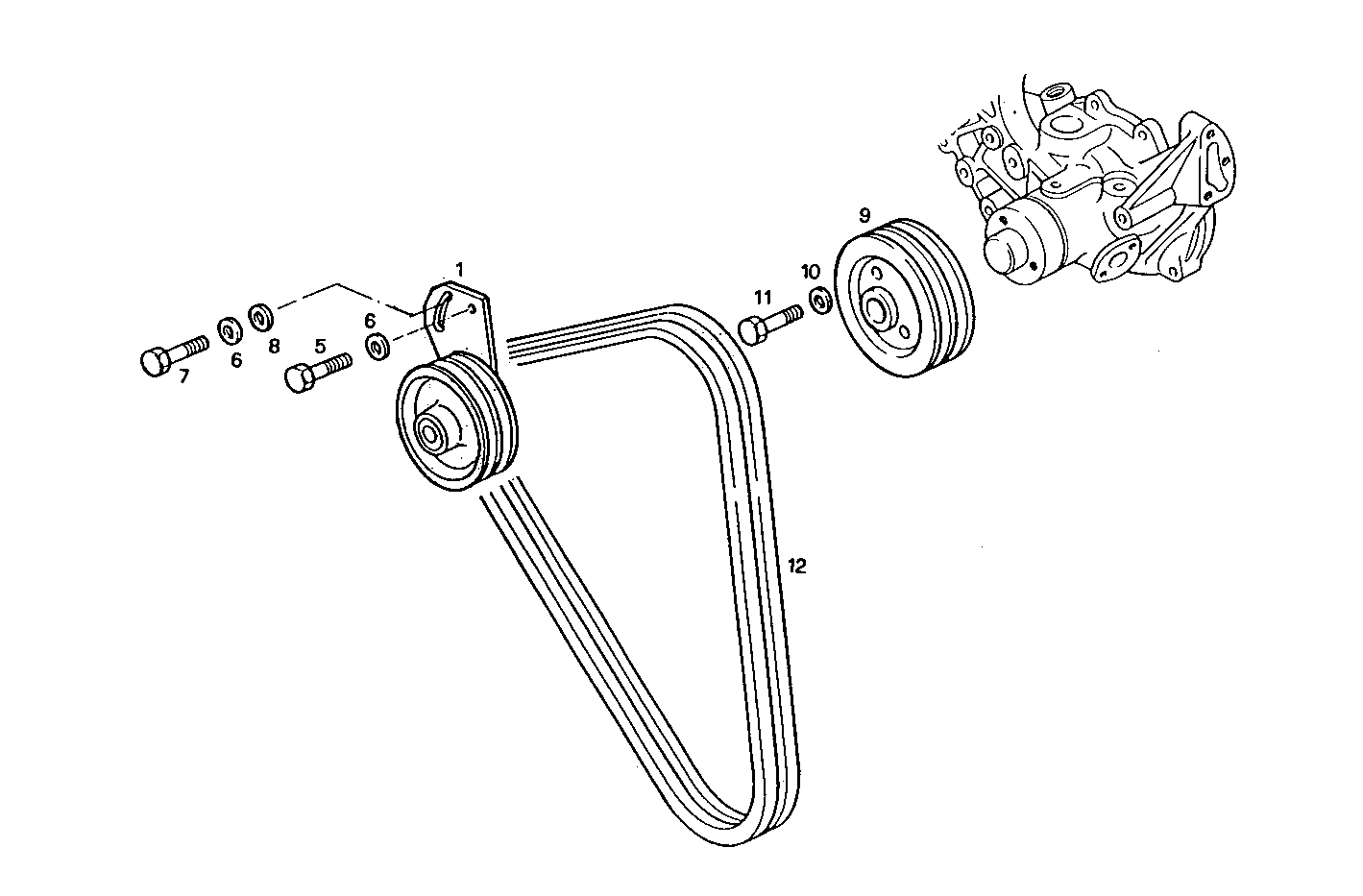

3240.071 PULLEYS AND BELTS

Iveco/FPT PULLEYS AND BELTS

Item Part number Description
1 8013111 BELT TENSIONER
2 98436012 PULLEY
3 98435799 STOP WASHER
4 16288934 HEXAGON BOLT M10X1,25X50 MM
5 15004021 HEXAGON BOLT M10X1,25X25 MM
6 17090174 SPRING WASHER Ø10X20 MM
7 11227924 SCREW
8 12646801 WASHER Ø10,2 MM
9 98419016 WATER PUMP PULLEY
10 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
11 16043524 SCREW M8X22 MM
12 4749446 V-BELT KIT
