8040SRC21.10A001

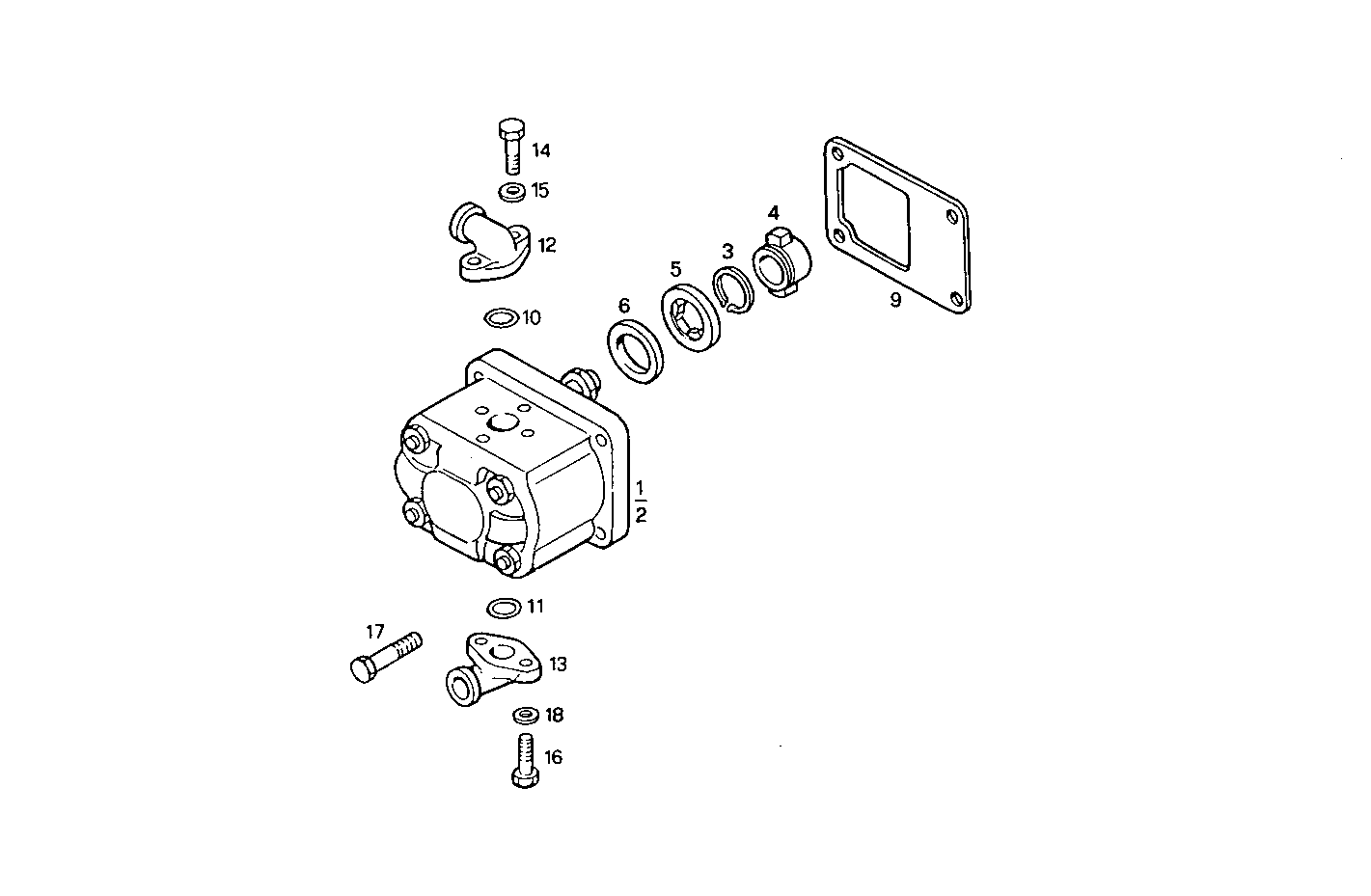

4220.015 POWER STEERING PUMP

Iveco/FPT POWER STEERING PUMP

Item Part number Description
1 5169039 HYDRAULIC PUMP ASSY PLESSEY C31
2 5179728 HYDRAULIC PUMP ASSY BOSCH
3 17082776 SPRING LOCKWASHER Ø23,7 MM
4 8011614 HUB
5 4621358 RING
6 4609538 CENTERING RING
9 4850986 FLAT ENGINE GASKET
10 17281781 O-RING Ø15,5 MM SP=2,6 MM
11 17282181 O-RING Ø21,8 MM SP=2,6 MM
12 4670953 PIPE SOCKET
13 4670915 EXHAUST MANIFOLD
14 16689424 SOCKET-HEAD SCREW M6X30 MM
15 17088474 WASHER Ø6X12 MM
16 16690824 CYLIND-HEAD SCREW M8X35 MM
17 16600324 SCREW M6X30
18 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
