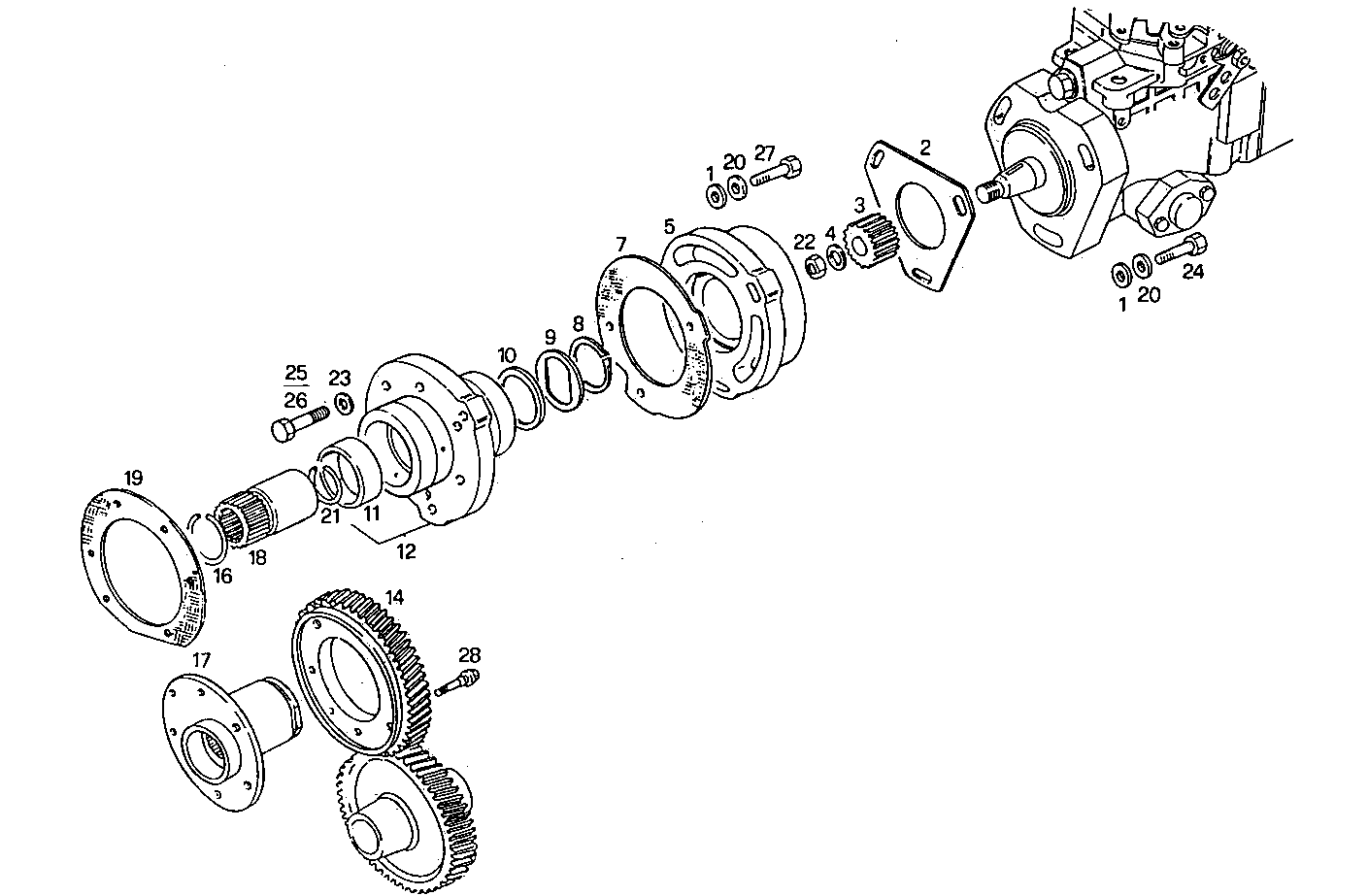

Item |
Part number |
Description |
1 |
12647124 |
WASHER Ø8X20 MM |
2 |
4851923 |
FLAT ENGINE GASKET |
3 |
4789285 |
INJECT.PUMP BUSH |
4 |
4799086 |
SPRING WASHER |
5 |
4791132 |
SPACING BAR |
7 |
4851922 |
FLAT ENGINE GASKET |
8 |
4708213 |
CIRCLIP |
9 |
4667498 |
WASHER |
10 |
4809425 |
WASHER Ø50 MM |
11 |
4769427 |
BUSH VANDERVELL |
12 |
4769710 |
SUPPORT ASSY |
14 |
4818557 |
GEAR |
16 |
4770452 |
CIRCLIP |
17 |
97496177 |
INJECT.PUMP SPIND [from 737249] |
18 |
4849361 |
INJECT.PUMP BUSH |
19 |
4849996 |
FLAT ENGINE GASKET |
20 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
21 |
17085376 |
CIRCLIP Ø30 MM |
22 |
17038821 |
HEXAGON NUT M14 |
23 |
17094914 |
WASHER 8x16 |
24 |
16605734 |
HEXAGON BOLT M8X30 MM |
25 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
26 |
16043324 |
HEXAGON BOLT M8X18 MM |
27 |
16606024 |
SCREW M8X45 MM |
28 |
98401723 |
HEXAGON BOLT M8X1,25X12 MM |
