8040SRC21.11

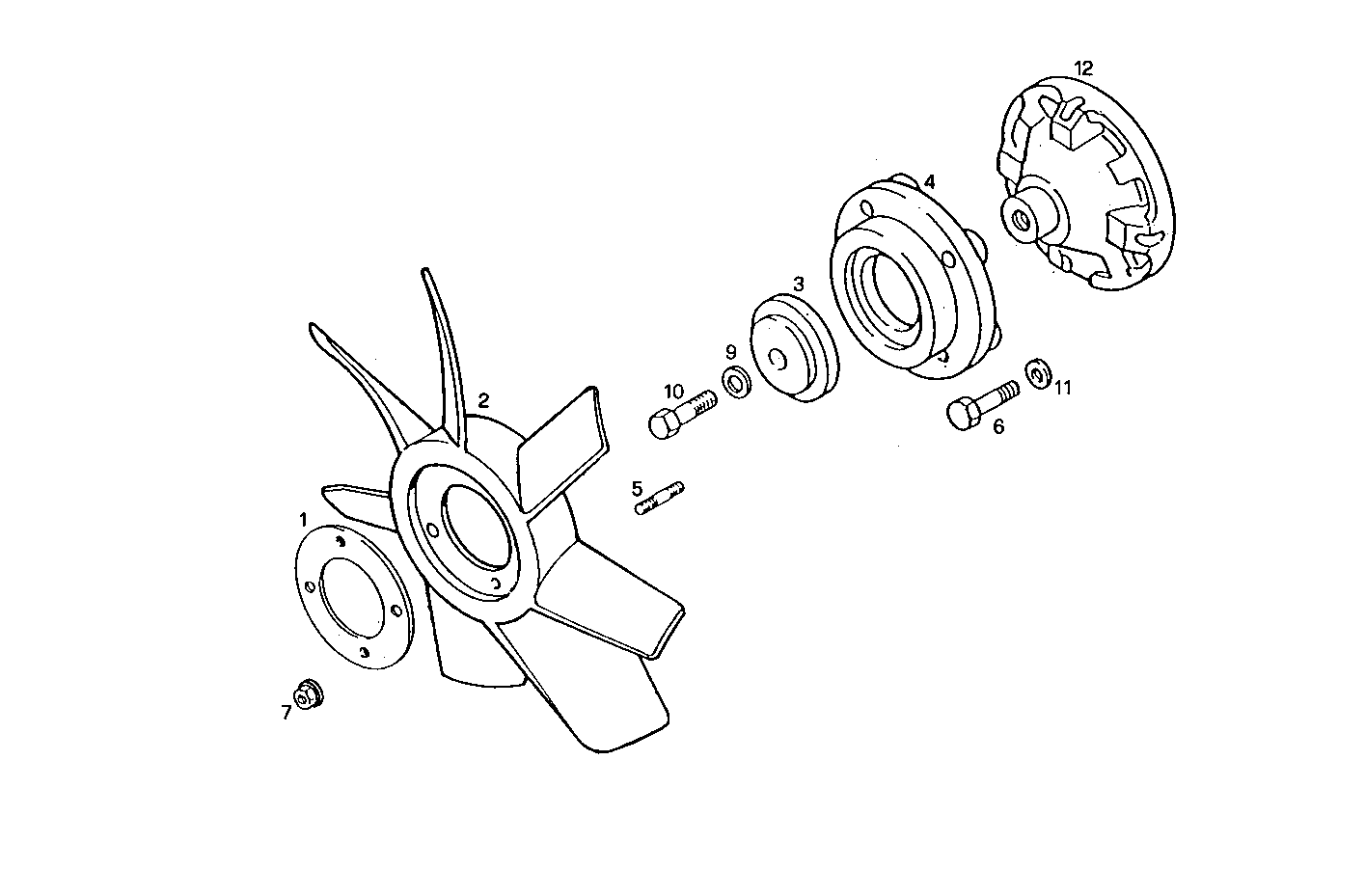

A08000038 PULLER FAN - on engine axis
| Item | Part number | Description |
|---|---|---|
| 1 | 98468150 | RING M8X20 MM |
| 2 | 98468663 | BLOWER Ø470 MM |
| 3 | 4791015 | WASHER |
| 4 | 98499032 | HUB M8X20 MM |
| 5 | 16729334 | STUD M8X20 MM |
| 6 | 16043721 | HEXAGON BOLT M8X28 MM |
| 7 | 17045731 | NUT M8X1,25 |
| 9 | 17092474 | SPRING WASHER Ø16X34 MM SP=4,4 MM |
| 10 | 15237821 | HEXAGON BOLT M16X1,5X80 MM |
| 11 | 17094914 | WASHER 8x16 |
| 12 | 98419024 | SPACING BAR |
