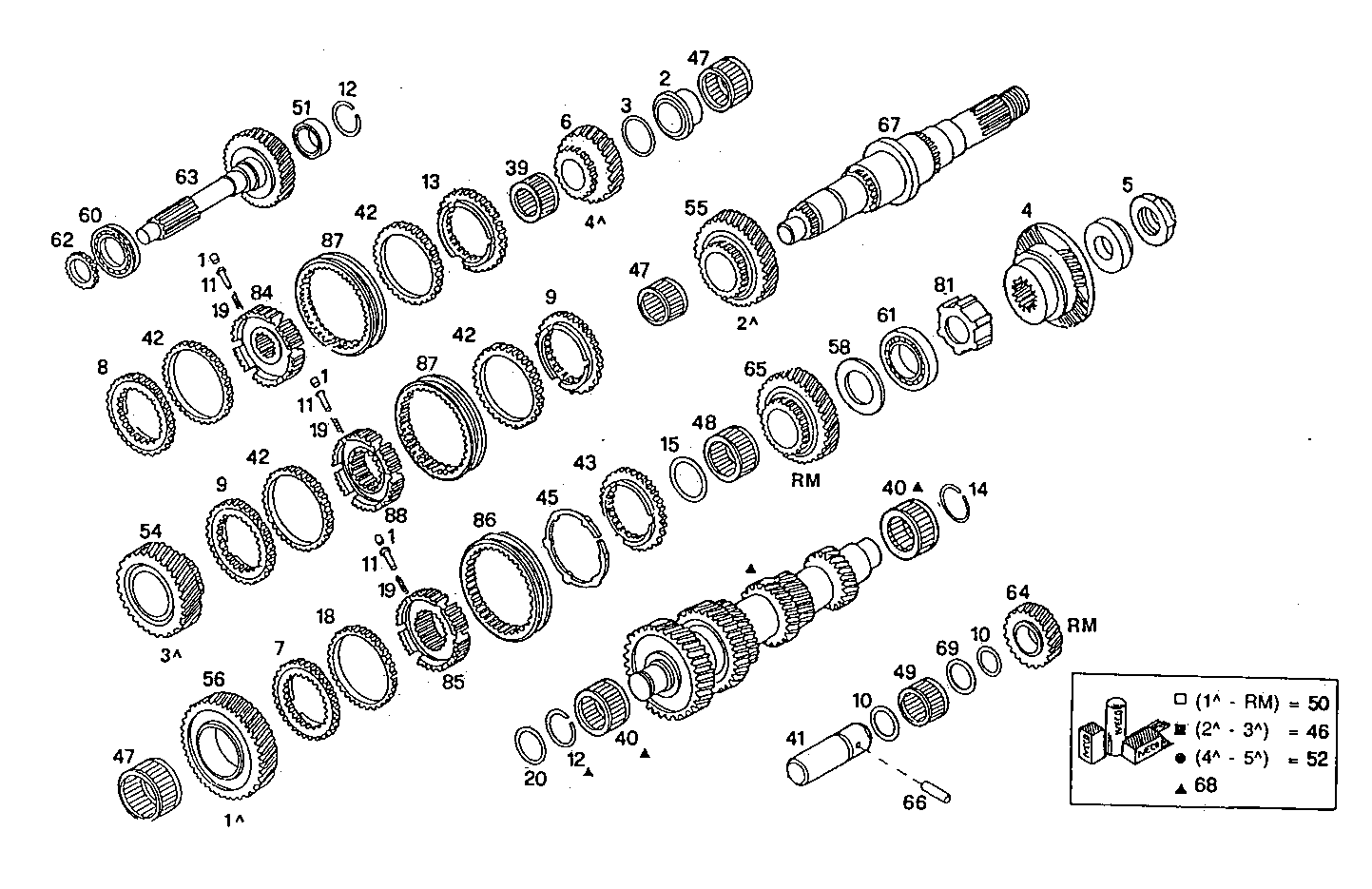

| Item |
Part number |
Description |
|
1 |
8856938 |
PARALLEL ROLLER |
|
2 |
8861547 |
PLUG-IN SLEEVE |
|
3 |
8860778 |
SET OF SHIMS SP=1,95-2,15 MM |
|
4 |
8859401 |
SHIFT SLEEVE ASSY GKN |
|
5 |
8858586 |
NUT M33X1,5 |
|
6 |
8859264 |
SPLITTER GEAR 4TH SPEED |
|
7 |
8861583 |
SYNCHRONIZER |
|
8 |
8861579 |
SYNCHRONIZER |
|
9 |
8861581 |
SYNCHRONIZER |
|
10 |
8860343 |
STOP WASHER |
|
11 |
8860354 |
CONTROL PISTON |
|
12 |
8860774 |
SHIM KIT |
|
13 |
8861580 |
SYNCHRONIZER |
|
14 |
8861671 |
SPACING BAR |
|
15 |
8860775 |
REVERSE GEAR |
|
18 |
8867447 |
SYNCHRONIZER 4TH SPEED |
|
19 |
8860357 |
SPRING |
|
20 |
8860777 |
SET OF SHIMS KIT |
|
39 |
1905242 |
ROLLER CAGE Ø53X46 MM SP=36 MM |
|
40 |
1905252 |
GEARBOX BEARINGS Ø40X75 MM SP=26 MM |
|
41 |
8861569 |
RETURN SHAFT REVERSE |
|
42 |
8867446 |
SYNCHRONIZER |
|
43 |
8860415 |
SYNCHRONIZER |
|
45 |
8861596 |
RING |
|
47 |
1905241 |
ROLLER CAGE Ø74X66 MM SP=36 MM |
|
48 |
1905253 |
ROLLER CAGE Ø60X68 MM SP=34 MM |
|
49 |
1905254 |
ROLLER CAGE Ø60X68 MM SP=34 MM |
|
51 |
1905251 |
ROLLER CAGE Ø42X26 MM SP=26 MM |
|
54 |
8859263 |
SPLITTER GEAR 3RD SPEED |
|
55 |
8859262 |
SPLITTER GEAR 2ND SPEED |
|
56 |
8859261 |
SPLITTER GEAR 1ST SPEED |
|
58 |
8860347 |
STOP WASHER |
|
60 |
99431569 |
GEARBOX BEARINGS Ø60X110 MM SP=22 MM |
|
61 |
1905396 |
DRIVE BEARING Ø45X100 MM SP=25 MM |
|
62 |
8863138 |
FASTENING RING |
|
63 |
8859202 |
INPUT SHAFT |
|
64 |
8859775 |
REVERSE GEAR |
|
65 |
8859776 |
REVERSE GEAR |
|
66 |
17259070 |
DOWEL PIN |
|
67 |
8859257 |
MAIN SHAFT |
|
68 |
99808046 |
COUNTERSHAFT ASSY |
|
69 |
17282481 |
O-RING Ø26,64 MM SP=2,62 MM |
|
81 |
8859212 |
WORM |
|
84 |
8860324 |
GEAR BOX HUB |
|
85 |
8860334 |
GEAR BOX HUB |
|
86 |
8861848 |
SLIDING SLEEVE |
|
87 |
8861673 |
SLIDING SLEEVE |
|
88 |
8861677 |
GEAR BOX HUB |
