8040SRC21.11

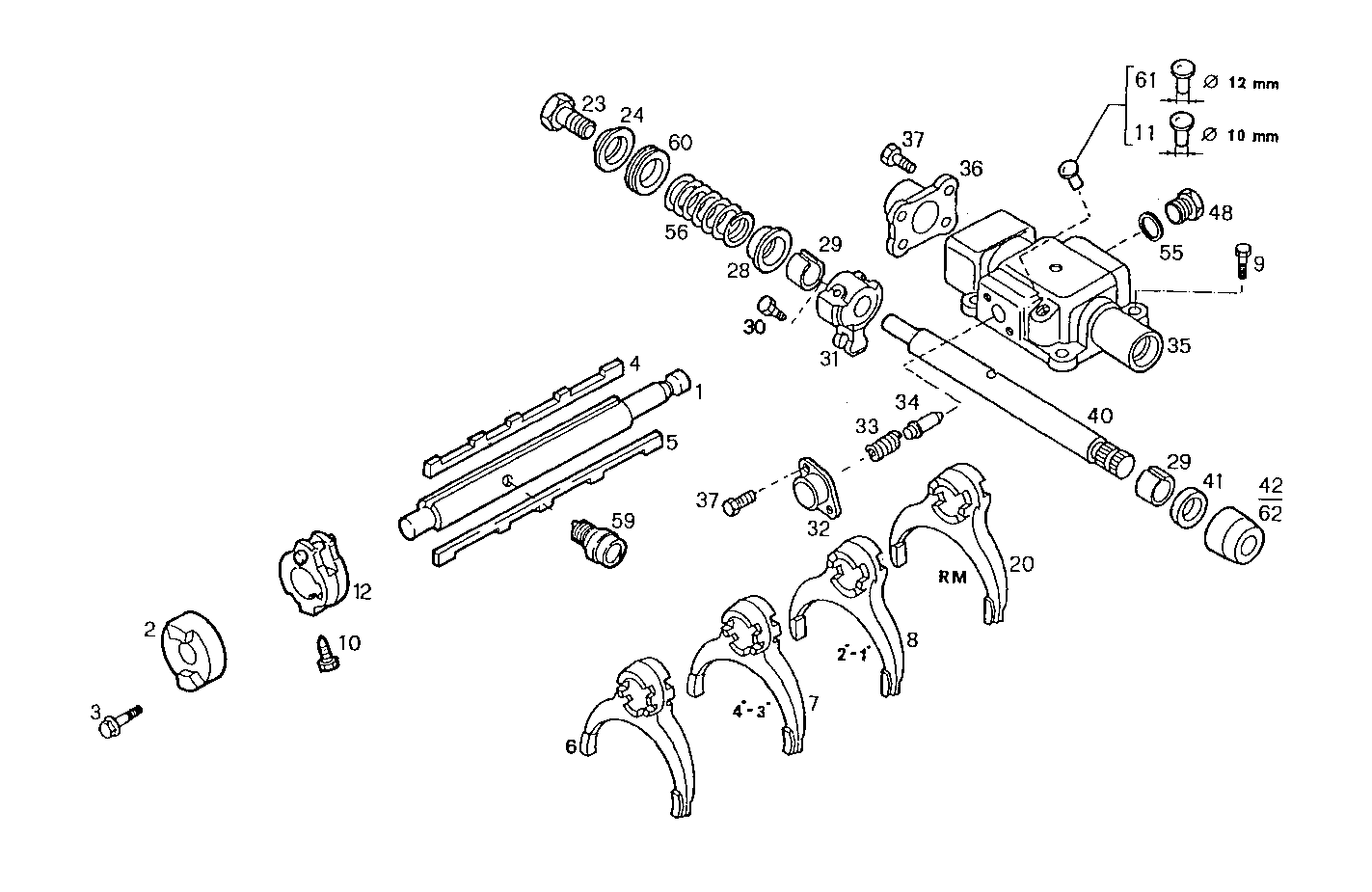

A27530003/05 TRANSMISSION - 2845.5

Iveco/FPT TRANSMISSION

Item Part number Description
1 8859054 SHIFT FORK ROD
2 8859199 CHOCK
3 16586824 HEXAGON BOLT M8X1,25X45 MM
4 8859418 LOCKING PLATE
5 8859419 LOCKING PLATE
6 886200 CLEVIS
7 8862001 SHIFT FORK
8 8859183 SHIFT FORK
9 16587224 HEXAGON BOLT M10X30 MM
10 8859313 SCREW
11 13412190 BREATHER R=1:5,12 Z=8/41
12 8859120 GEAR SELECTOR
23 8859711 HEXAGON BOLT M8X1,25
24 8859145 CAP
28 8859111 CAP
29 8859274 BUSH
31 8868375 GEAR SELECT.SLEEVE
32 8868305 COVER
33 8863476 SPRING
34 8868402 CONTROL PISTON
35 8868379 UPPER G.BOX COVER
36 8859107 COVER
37 16586324 HEXAGON BOLT M8X1,25X20 MM
40 8868371 SHIFT FORK ROD
41 40101080 SHAFT SEAL
42 8859415 PROTECTION
48 16992411 THREADED PLUG M16X1,5
55 16508260 WASHER Ø16X20 MM
56 8863475 SPRING
59 8859081 THRUST ROD
60 8863591 SPACING BAR
61 58196 BREATHER
62 8867468 PROTECTION
