8040SRC21.11A005

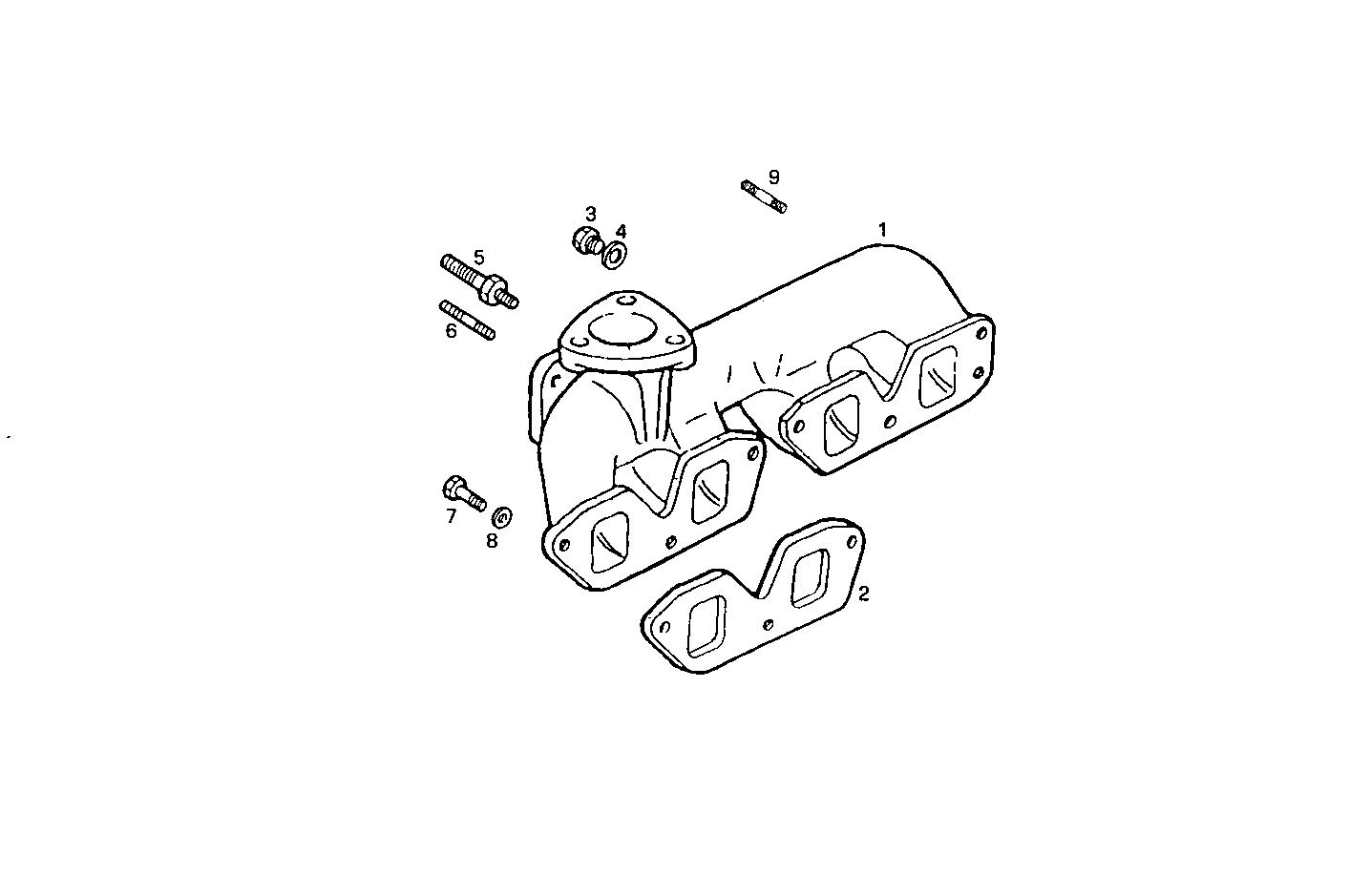

0710.058 INTAKE MANIFOLD

Iveco/FPT INTAKE MANIFOLD

Item Part number Description
1 4819460 INTAKE ELBOW
2 4851921 INTAKE ELBOW GASK.
3 4724588 PLUG
4 10260060 SEAL GASKET Ø8X12X1 MM
5 98437672 HEXAGON BOLT
6 13546324 STUD M10X20X25
7 16605824 HEXAGON BOLT M8X35 MM
8 10519601 WASHER Ø8X17 MM
9 16746624 STUD M8X20 MM (8.8)
