8040SRC21.11A005

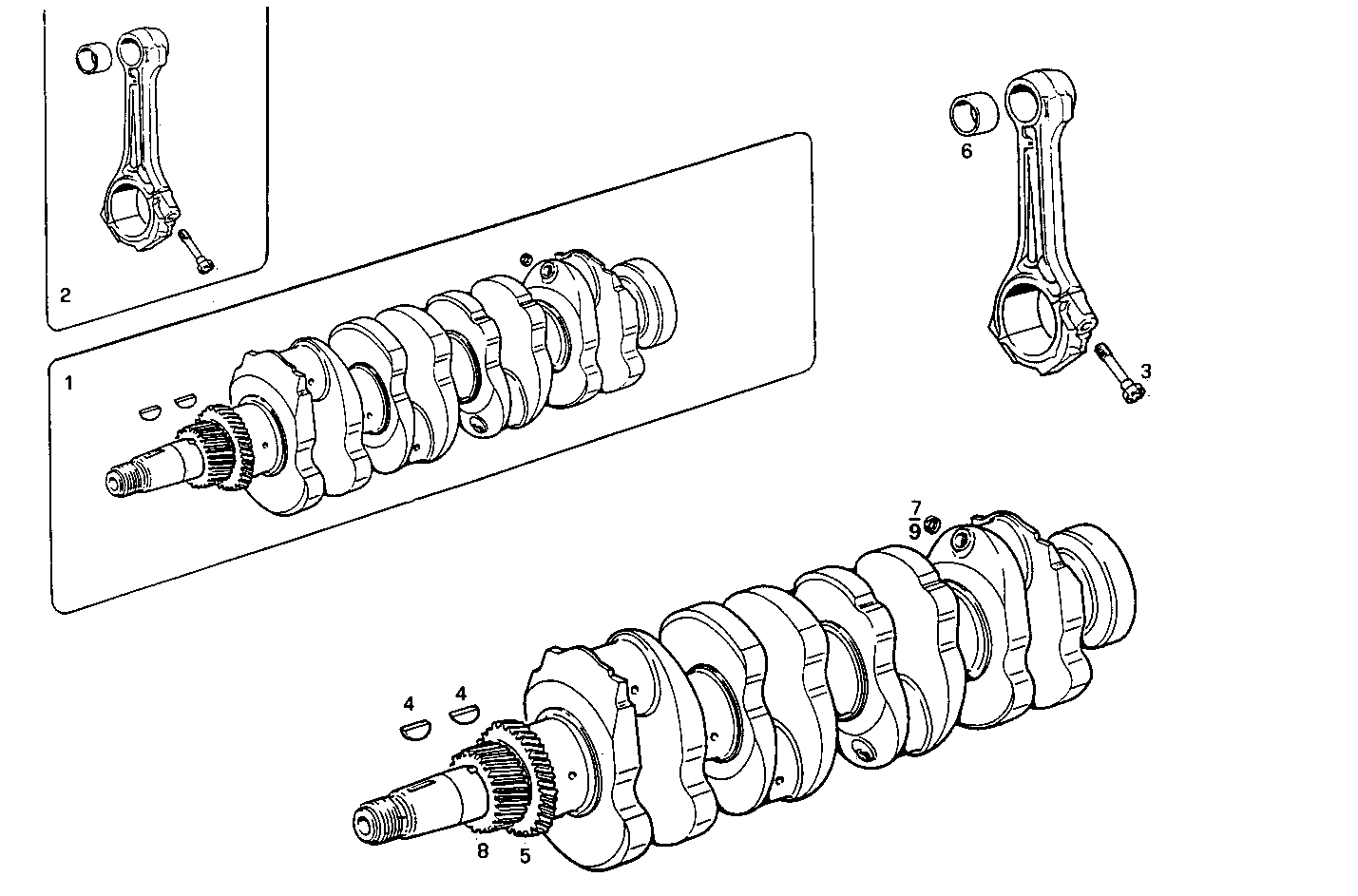

0800.009 CRANK SHAFT - CONNECTING RODS
Item | Part number | Description |
---|---|---|
1 | 4818544 | CRANK SHAFT ASSY |
2 | 98461753 | CONN.ROD ASSY. ASSY |
3 | 4780627 | BIG-END BOLT |
4 | 4655844 | KEY |
5 | 4770255 | OIL PUMP DRIV.GEA |
6 | 98459977 | BIG-END BUSH VANDERVELL |
7 | 14328101 | LOCK PLUG Ø8 MM |
8 | 4818545 | CAMSHAFT PINION |
9 | 16987501 | LOCK PLUG Ø7 MM |
