8040SRC21.11A005

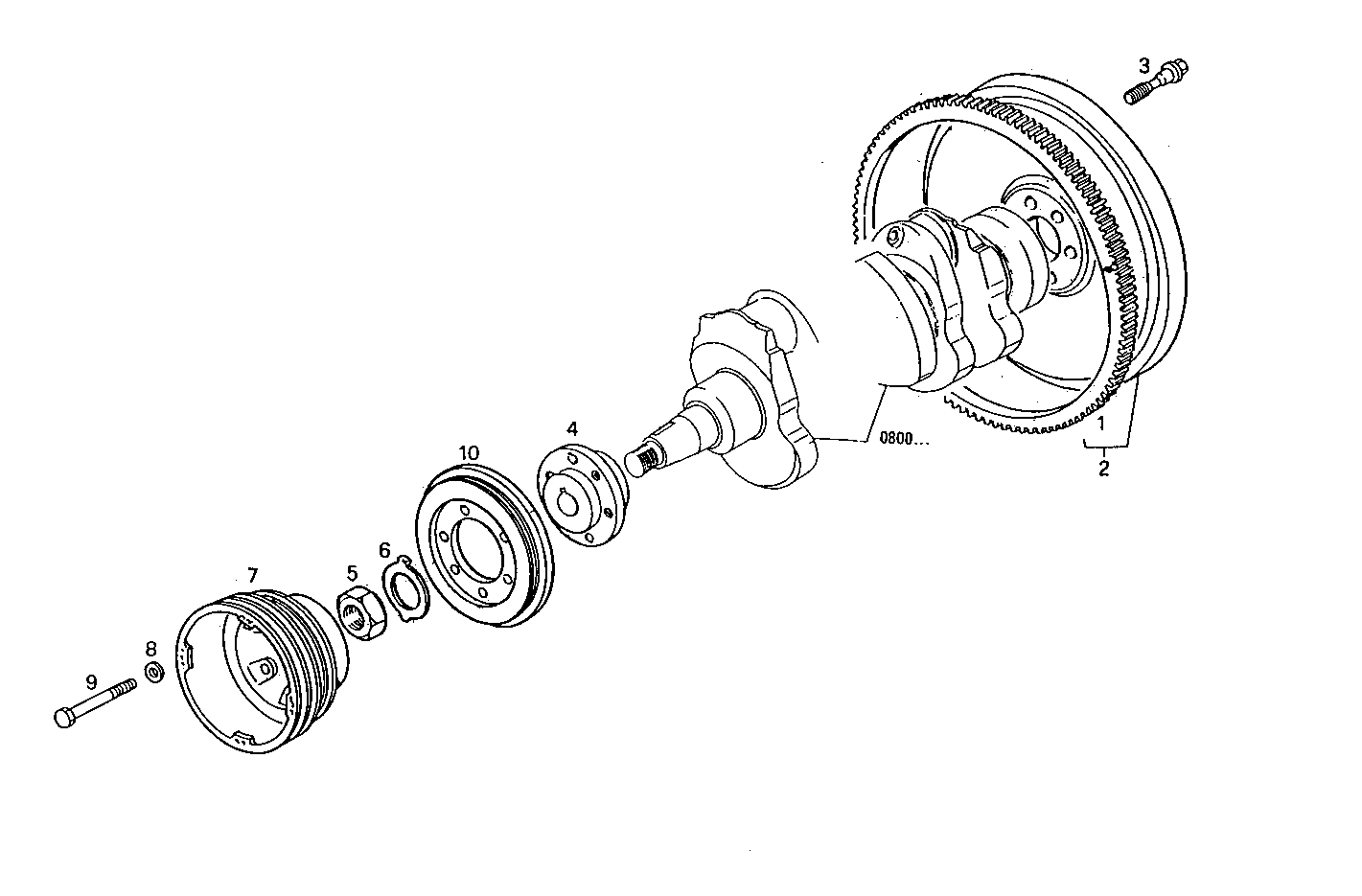

0830.127 ENGINE FLYWHEEL - DAMPER
Item | Part number | Description |
---|---|---|
1 | 4862411 | RING GEAR |
2 | 99463588 | FLYWHEEL ASSY |
3 | 4779121 | HEXAGON BOLT |
4 | 4655847 | HUB |
5 | 4600189 | NUT |
6 | 4600190 | LOCKING PLATE |
7 | 98418638 | PULLEY |
8 | 17090174 | SPRING WASHER Ø10X20 MM |
9 | 11288024 | HEXAGON BOLT M10X1,25X60 MM |
10 | 98447726 | VIBRATION DAMPER |
11 | 8019336 | FLEXPLATE ASSY |
12 | 11306921 | SCREW M10X1,25X30 |
